Exploded View

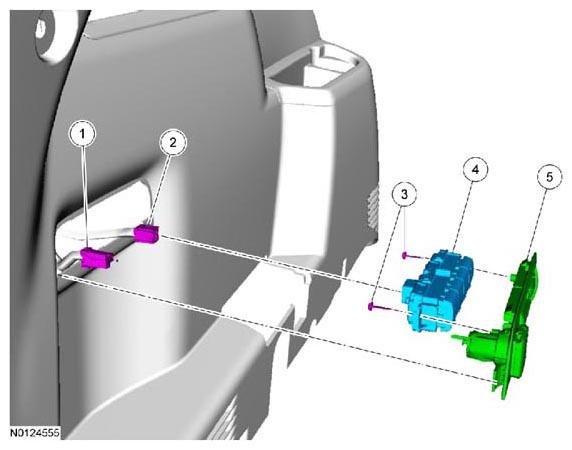

Fig 1: Exploded View Of Seat Control Switch
G07427265Courtesy of FORD MOTOR CO.
Item Service Part Number Description
1 - Electrical connector (part of 14A005)
2 - Electrical connector (part of 14A005)
3 W504243 Screw (2 required)
4 14C715 Seat control switch
5 14D721 Bezel
