General Procedure

NOTE: RH seat shown in illustaration, LH similar.

To release an inoperable seat latch:
1. Push the cushion cover and foam pad back and locate the power seat latch by-pass cut-out in the bracket.

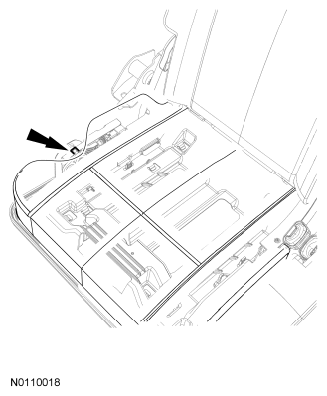

  Fig 1: Locating Power Seat Latch By-Pass Cut-Out In Bracket
  Courtesy of FORD MOTOR CO.
2. Slide a screwdriver through the latch bracket until it bottoms out on the latch mechanism. Make sure the screwdriver is straight up and down and not on an angle or the screwdriver will not come in contact with the latch release lever.

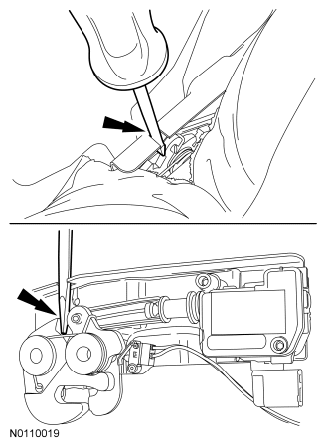

  Fig 2: Removing Latch Bracket
  Courtesy of FORD MOTOR CO.
3. Pivot the screwdriver handle toward the front of the seat, releasing the latch.

  Fig 3: Releasing Latch
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the wire harness is not damaged while positioning the release lever or the power-fold seat will not operate.

NOTE: LH seat shown in illustaration, RH similar.

To disengage an inoperable stow motor:
1. Pry to release the clips and remove the backrest latch outer cover.

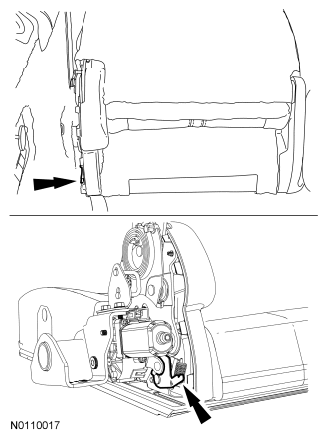

  Fig 4: Locating Backrest Latch Outer Cover
  Courtesy of FORD MOTOR CO.
2. Position the pivot release lever down and pivot the seat away from the floor striker.

  Fig 5: Locating Pivot Release Lever
  Courtesy of FORD MOTOR CO.
