Seat Cushion Heater Mat: Removal

NOTE: The passenger seat is equipped with an OCS bladder system, to prevent system failure, it is necessary to carry out the OCS reset when a front passenger seat cushion is disassembled, a new cushion cover is installed or an OCS service kit is installed. A scan tool is used to carry out the OCS reset.

NOTE: Do not reinstall any heater mat after removal. The adhesive will not adhere correctly, causing it to bunch up or shift out of place. A new heater mat and a new foam pad must be installed. If a new heater mat is needed for a passenger seat cushion, an OCS service kit must be installed. Failure to follow these instructions can result in heated seat component damage, system failure or incorrect OCS operation.

NOTE: The passenger seat is equipped with an OCS bladder system, a new OCS service kit and a new cushion heated seat mat must be installed. REFER to OCCUPANT CLASSIFICATION SYSTEM (OCS) SENSOR .

NOTE: An OCS bladder system and the OCS service kit has the electrical connector glued to the OCSM. It cannot and should not be disconnected or altered.

NOTE: For component identification and locations, REFER to Seat - Exploded View, Front .

NOTE: All Seats

For a passenger seat equipped with a OCS service kit, remove the OCS sensor. For additional information, REFER to OCCUPANT CLASSIFICATION SYSTEM (OCS) SENSOR .
Remove the seat cushion cover. For additional information, REFER to Seat Cushion Cover .
NOTE: Note the wire harness routing for installation.

At the front of the seat track, disconnect the cushion heater mat electrical connector and separate the wire harness retainer.

Fig 1: Locating Cushion Heater Mat Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the cushion foam pad from the cushion frame. Discard the cushion foam pad with heater mat.
NOTE: Power seat track on top, manual seat track on bottom.

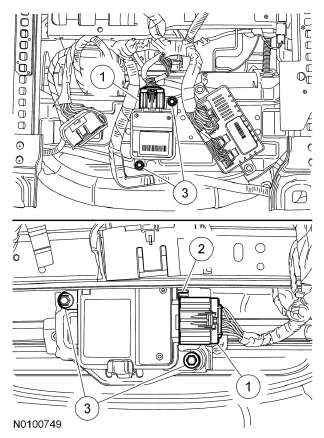

For a passenger seat, remove the OCSM in the following sequence:
1. Disconnect the electrical connector.
2. NOTE: For manual seat track only.

  If equipped, bend the locking tab downward.
3. Remove the 2 screws.
Fig 2: Identifying Components Of Passenger Seat With OEM Bladder Occupant Classification System (OCS)
Courtesy of FORD MOTOR CO.
NOTE: Power seat track on top, manual seat track on bottom.

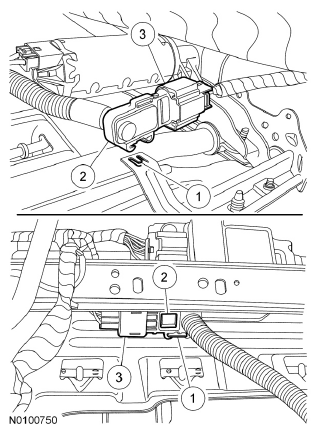

For a passenger seat, separate the pressure sensor in the following sequence:
1. Bend the locking tab downward.
2. Slide the pressure sensor off of the bracket.
3. Disconnect the electrical connector.
Fig 3: Identifying Passenger Seat Pressure Sensor Components
Courtesy of FORD MOTOR CO.
For a passenger seat, detach the OCS bladder pin-type retainers.

Fig 4: Locating OCS Bladder Pin-Type Retainers
Courtesy of FORD MOTOR CO.
NOTE: Power seat track on top, manual seat track on bottom.

For a passenger seat, route the OCS hose and pressure sensor through the cushion support wires.

Fig 5: Locating Cushion Support Wires And Cushion Massage Hoses
Courtesy of FORD MOTOR CO.
