Exploded View

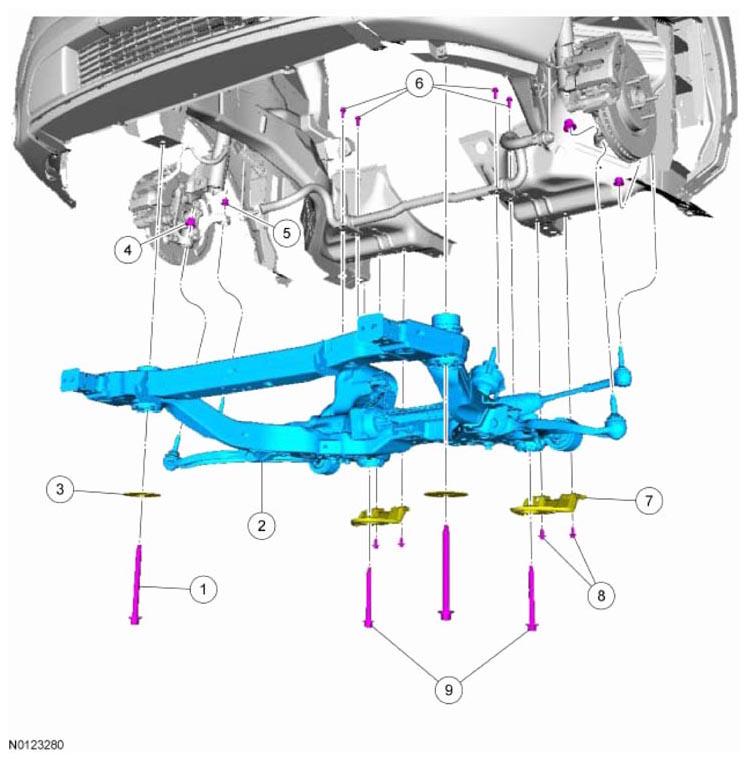

Fig 1: Exploded View Of Subframe (Front)

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description	Torque	Material Name	Notes
1	W714470	Front subframe forward bolt (2 required)	200 Nm (148 lb-ft)	-	-
2	5C145	Front subframe assembly	-	-	-
3	5L022	Front subframe forward bolt washer (2 required)	-	-	-
4	W714890	Lower ball joint nut (2 required)	200 Nm (148 lb-ft)	-	-
5	W520215	Outer tie-rod end nut (2 required)	150 Nm (111 lb-ft)	-	-
6	W505274	Stabilizer bar brackets-to-front subframe bolts (4 required)	55 Nm (41 lb-ft)	-	-
7	5G221	Front subframe bracket (2 required)	-	-	-
8	W710999	Front subframe bracket bolts (4 required)	55 Nm (41 lb-ft)	-	-
9	W714471	Front subframe rearward bolts (2 required)	200 Nm (148 lb-ft)	-	-
