General Procedure

  1. Cycle and park the rear window wiper.
  2. Verify the rear wiper blade is positioned at the first defroster line located on the rear window glass.

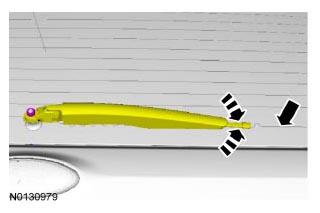

    Fig 1: Locating Wiper Blade And Pivot Arm (Rear Window)
    G07429561Courtesy of FORD MOTOR CO.
  3. If necessary, remove the rear wiper arm using a gear puller, position the rear wiper pivot arm and blade and align the blade tip to the first defrosting line.
