Pinpoint Test

CHECK FOR DTCs FROM THE SOD-L AND SOD-R SELF-TESTS
1. Using a scan tool, perform the SOD-L and SOD-R DTCs self-tests.
Is DTC B11D6:11 or B11D6:15 recorded?
- Yes: For DTC B11D6:11, GO to 2 .
  If DTC B11D6:15 sets and the LED is not illuminated, GO to 5.

  If DTC B11D6:15 sets and the LED is always on, REFER to Diagnostic Routine I: An Exterior Mirror LED Is Constantly On With No IPC Message Present .
- No: For all other DTCs , REFER to DTC Chart: Side Obstacle Detection Module - Left (SOD-L) and Side Obstacle Detection Module - Right (SOD-R) .
CHECK THE EXTERIOR MIRROR BLIS® / CTA LED FOR A SHORT TO GROUND
1. Ignition OFF.
2. Disconnect: Left Exterior Mirror BLIS® / CTA LED C576 (LH concern).
3. Disconnect: Right Exterior Mirror BLIS® / CTA LED C676 (RH concern).
4. Ignition ON.
5. NOTE: It is normal for DTC B11D6:15 to set when carrying out this step. It can be ignored.

  Clear the SOD-L or SOD-R DTCs .
Is DTC B11D6:11 retrieved?
- Yes: GO to 3 .
- No: INSTALL a new exterior mirror glass for the mirror in question. REFER to EXTERIOR MIRROR GLASS .
CHECK THE EXTERIOR MIRROR FOR A SHORT TO GROUND
1. Ignition OFF.
2. Disconnect: Left Exterior Mirror C516 (LH concern).
3. Disconnect: Right Exterior Mirror C601 (RH concern).
4. Ignition ON.
5. NOTE: It is normal for DTC B11D6:15 to set when carrying out this step. It can be ignored.

  Clear the SOD-L or SOD-R DTCs .
Is DTC B11D6:11 retrieved?
- Yes: GO to 4 .
- No: INSTALL a new exterior mirror for the one in question. REFER to EXTERIOR MIRROR .

CHECK THE EXTERIOR MIRROR BLIS® / CTA LED SUPPLY CIRCUIT FOR A SHORT TO GROUND

Ignition OFF.
Disconnect: SOD-L (LH concern).
Disconnect: SOD-R (RH concern).

Measure:

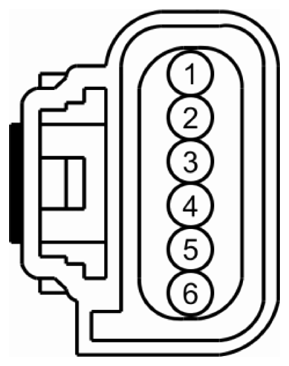

SOD-L			Ground

C4369			Ground
Pin	Circuit	Measurement / Action	Pin	Circuit
1	CRB04 (YE/GN)		-	Ground

SOD-R			Ground

C4370			Ground
Pin	Circuit	Measurement / Action	Pin	Circuit
1	CRB02 (BU/BN)		-	Ground

Is the resistance greater than 10, 000 ohms?

Yes: For a LH concern, GO to 11.
For a RH concern, GO to 12.
No: REPAIR the circuit in question.

CHECK THE SUSPECTED EXTERIOR MIRROR BLIS® / CTA LED FOR ILLUMINATION

Ignition OFF.
Disconnect: SOD-L (LH concern).
Disconnect: SOD-R (RH concern).

Connect a fused jumper wire:

SOD-L			SOD-L

C4369			C4369
Pin	Circuit	Measurement / Action	Pin	Circuit
2	CBP34 (VT/BN)		1	CRB04 (YE/GN)

SOD-R			SOD-R

C4370			C4370
Pin	Circuit	Measurement / Action	Pin	Circuit
2	CBP34 (VT/BN)		1	CRB02 (BU/BN)

Ignition ON.

Does the LED in question illuminate?

Yes: For a LH concern, GO to 11.
For a RH concern, GO to 12.
No: REMOVE the jumper wire, GO to 6 .

CHECK THE EXTERIOR MIRROR GLASS BLIS® / CTA LED FOR AN OPEN

Ignition OFF.
Disconnect: Left Exterior Mirror BLIS® / CTA LED C576 (LH concern).
Disconnect: Right Exterior Mirror BLIS® / CTA LED C676 (RH concern).

Measure:

Left BLIS® / CTA LED			Left BLIS® / CTA LED

C576 (Component Side)			C576 (Component Side)
Pin	Circuit	Measurement / Action	Pin	Circuit
1	-		2	-

Right BLIS® / CTA LED			Right BLIS® / CTA LED

C676 (Component Side)			C676 (Component Side)
Pin	Circuit	Measurement / Action	Pin	Circuit
1	-		2	-

Is the resistance less than 2000 ohms?

Yes: GO to 7 .
No: INSTALL a new exterior mirror glass for the mirror in question. REFER to EXTERIOR MIRROR GLASS .

CHECK THE EXTERIOR MIRROR BLIS® / CTA LED SUPPLY CIRCUIT FOR AN OPEN

Measure:

SOD-L			Left Exterior Mirror BLIS® / CTA LED

C4369			C576
Pin	Circuit	Measurement / Action	Pin	Circuit
1	CRB04 (YE/GN)		1	-

SOD-R			Right Exterior Mirror BLIS® / CTA LED

C4370			C676
Pin	Circuit	Measurement / Action	Pin	Circuit
1	CRB02 (BU/BN)		1	-

Is the resistance less than 3 ohms?

Yes: GO to 9.
No: GO to 8 .

CHECK THE EXTERIOR MIRROR FOR AN OPEN

Disconnect: Left Exterior Mirror C516 (LH concern).
Disconnect: Right Exterior Mirror C601 (RH concern).

Measure:

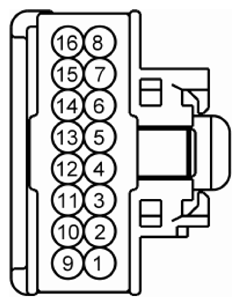

SOD-L			Left Exterior Mirror

C4369			C516
Pin	Circuit	Measurement / Action	Pin	Circuit
1	CRB04 (YE/GN)		13	CRB04 (YE/GN)

SOD-R			Right Exterior Mirror

C4370			C601
Pin	Circuit	Measurement / Action	Pin	Circuit
1	CRB02 (BU/BN)		13	CRB02

Is the resistance less than 3 ohms?

Yes: INSTALL a new exterior mirror for the one in question. REFER to EXTERIOR MIRROR .
No: REPAIR the circuit.

CHECK THE EXTERIOR MIRROR BLIS® / CTA LED GROUND CIRCUIT FOR AN OPEN

Measure:

Left or Right Exterior Mirror BLIS® / CTA LED			Ground

C576 (LH) C676 (RH)			Ground
Pin	Circuit	Measurement / Action	Pin	Circuit
2	-		-	Ground

Is the resistance less than 3 ohms?

Yes: For a LH concern, GO to 11.
For RH concern, GO to 12.
No: GO to 10 .

CHECK THE EXTERIOR MIRROR GROUND CIRCUIT FOR AN OPEN

Disconnect: Left Exterior Mirror C516 (LH concern).
Disconnect: Right Exterior Mirror C601 (RH concern).

Measure:

Left Exterior Mirror			Ground

C516			Ground
Pin	Circuit	Measurement / Action	Pin	Circuit
7	GD233 (BK)		-	Ground

Right Exterior Mirror			Ground

C601			Ground
Pin	Circuit	Measurement / Action	Pin	Circuit
7	GD348 (BK/YE)		-	Ground

Is the resistance less than 3 ohms?

Yes: INSTALL a new exterior mirror for the one in question. REFER to EXTERIOR MIRROR .
No: REPAIR the question.

CHECK FOR CORRECT SOD-L OPERATION
1. Disconnect and inspect the SOD-L connector.
2. Repair:
  - corrosion (install new connector or terminals - clean module pins)
  - damaged pins - install new terminals/pins
  - pushed-out pins - install new pins as necessary
3. Reconnect the SOD-L connector. Make sure it seats and latches correctly.
4. Operate the system and determine if the concern is still present.
Is the concern still present?
- Yes: CHECK OASIS for any applicable TSBs . If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs address this concern, INSTALL a new SOD-L . REFER to Side Obstacle Detection (SOD) Module .
- No: The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.
CHECK FOR CORRECT SOD-R OPERATION
1. Disconnect and inspect the SOD-R connector.
2. Repair:
  - corrosion (install new connector or terminals - clean module pins)
  - damaged pins - install new terminals/pins
  - pushed-out pins - install new pins as necessary
3. Reconnect the SOD-R connector. Make sure it seats and latches correctly.
4. Operate the system and determine if the concern is still present.
Is the concern still present?
- Yes: CHECK OASIS for any applicable TSBs . If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs address this concern, INSTALL a new SOD-L . REFER to Side Obstacle Detection (SOD) Module .
- No: The system is operating correctly at this time. The concern may have been caused by module connections. ADDRESS the root cause of any connector or pin issues.
