Pinpoint Test

1. Ignition ON.
2. Apply the brakes.
3. Select DRIVE.
4. While pressing the active park assist switch, monitor the center stack infotainment display.

Does the center stack infotainment display read "ACTIVE PARK SEARCHING"?

1. Yes: The system is operating correctly at this time. PRESS and RELEASE the active park assist switch several times to verify that there is no intermittent condition with the switch. If an intermittent condition occurs, GO to  3.

   Otherwise, the system is operating correctly at this time.

2. No: GO to 2  .

1. Using a scan tool, perform the PAM self-test.

Are any PAM DTCs recorded?

1. Yes: REFER to DTC CHART: PARKING AID MODULE (PAM) .
2. No: GO to 3  .

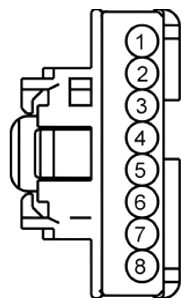

1. Disconnect: Active Park Assist Switch.
2. Measure:

   Active Park Assist Switch			Ground
   C2114			Ground
   Pin	Circuit	Measurement / Action	Pin	Circuit
   1	GD215 (BK/GY)		-	Ground

Is the resistance less than 3 ohms?

1. Yes: GO to 4  .
2. No: REPAIR the circuit.

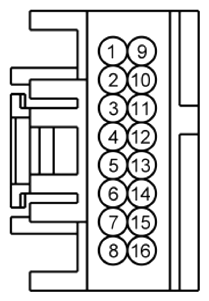

1. Disconnect: PAM.
2. Measure:

   PAM			Active Park Assist Switch
   C3267			C2114
   Pin	Circuit	Measurement / Action	Pin	Circuit
   10	CMP18 (GN/BN)		5	CMP18 (GN/BN)

Is the resistance less than 3 ohms?

1. Yes: GO to 5  .
2. No: REPAIR the circuit.

1. While pressing the active park switch, measure:

   Active Park Assist Switch			Active Park Assist Switch
   C2114 (Compent Side)			C2114 (Compent Side)
   Pin	Circuit	Measurement / Action	Pin	Circuit
   5	-		1	-

Is the resistance less than 3 ohms with the switch pressed and greater than 10, 000 ohms with the switch released?

1. Yes: GO to 6  .
2. No: INSTALL a new active park switch. REFER to Active Park Assist Switch .

1. Disconnect and inspect the PAM connector.
2. Repair:
   • corrosion (install new connector or terminals - clean module pins)
   • damaged or bent pins - install new terminals/pins
   • pushed-out pins - install new pins as necessary
3. Reconnect the PAM connector. Make sure it seats and latches correctly.
4. Operate the system and determine if the concern is still present.

Is the concern still present?

1. Yes: CHECK OASIS  for any applicable TSBs  . If a TSB exists for this concern, DISCONTINUE this test and FOLLOW TSB instructions. If no TSBs  address this concern, INSTALL a new PAM. REFER to PARKING AID MODULE (PAM) .
2. No: The system is operating correctly at this time. Concern may have been caused by a module connections. ADDRESS the root cause of any connector or pin issues.
