Parking_Rear and License Lamps
Parking_Rear and License Lamps

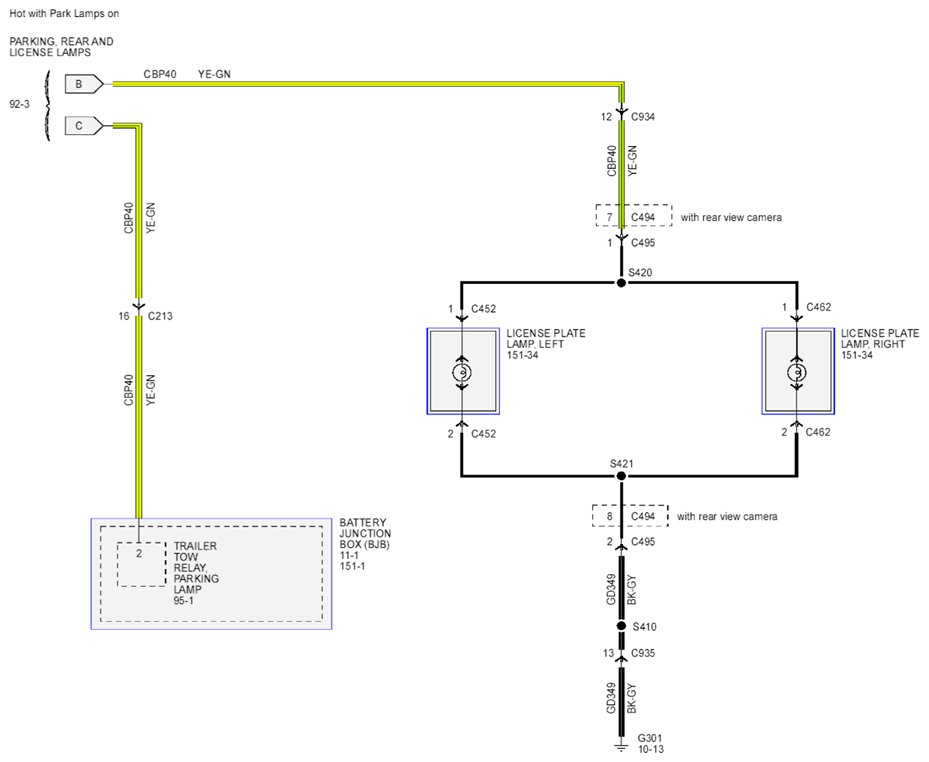

Fig 1: Parking Rear And License Lamps Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

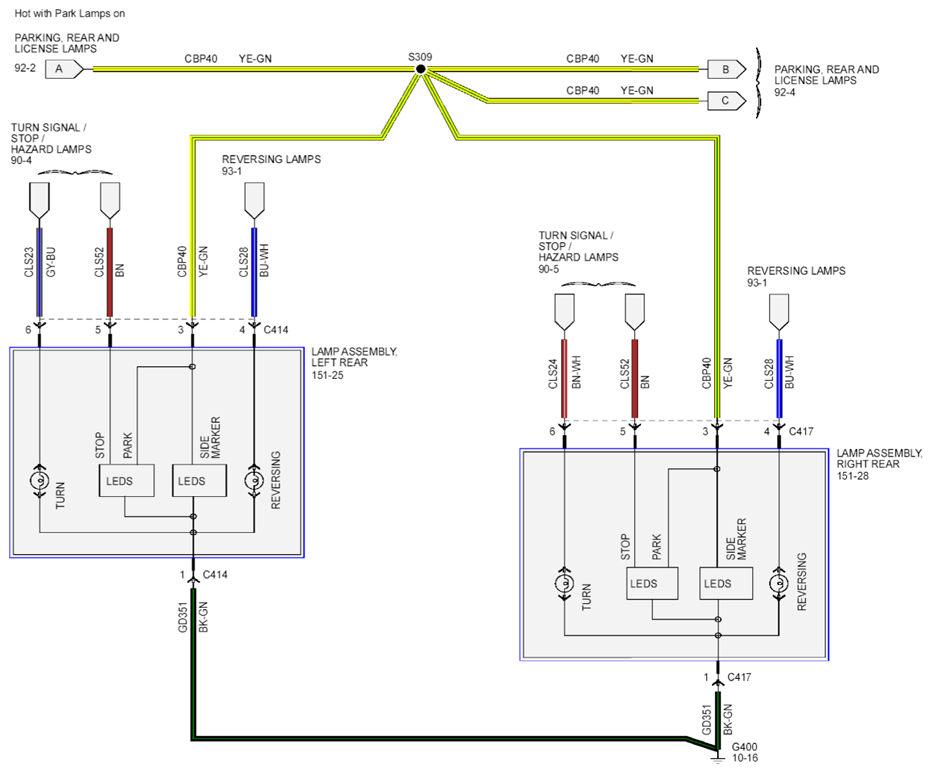

Fig 2: Parking Rear And License Lamps Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

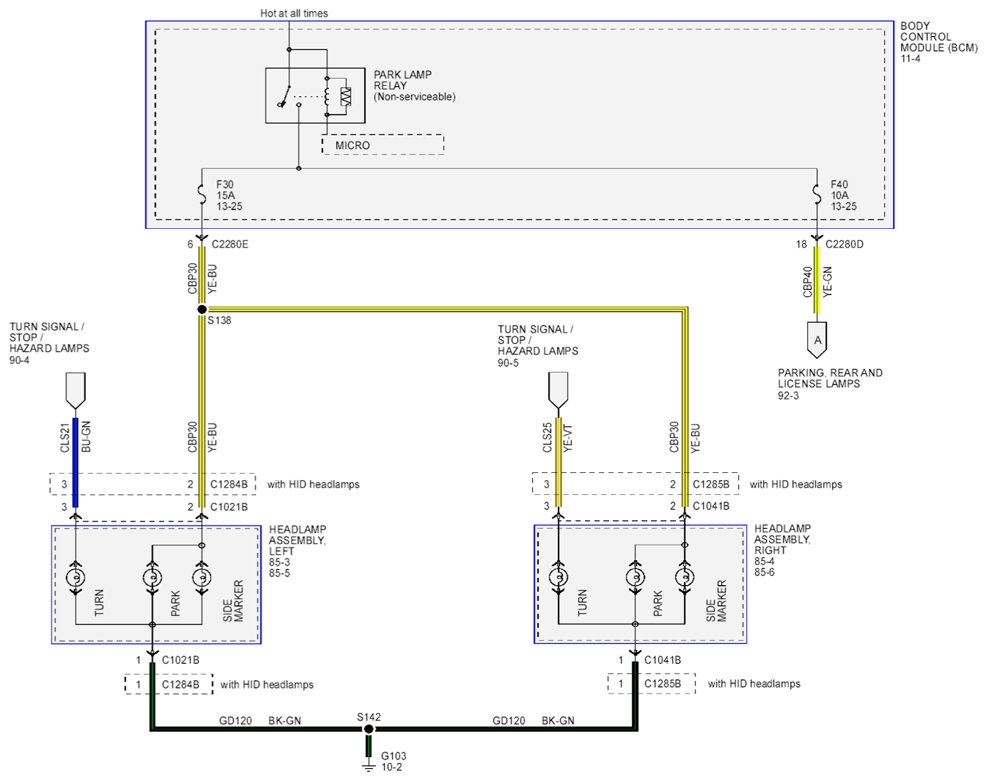

Fig 3: Parking Rear And License Lamps Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

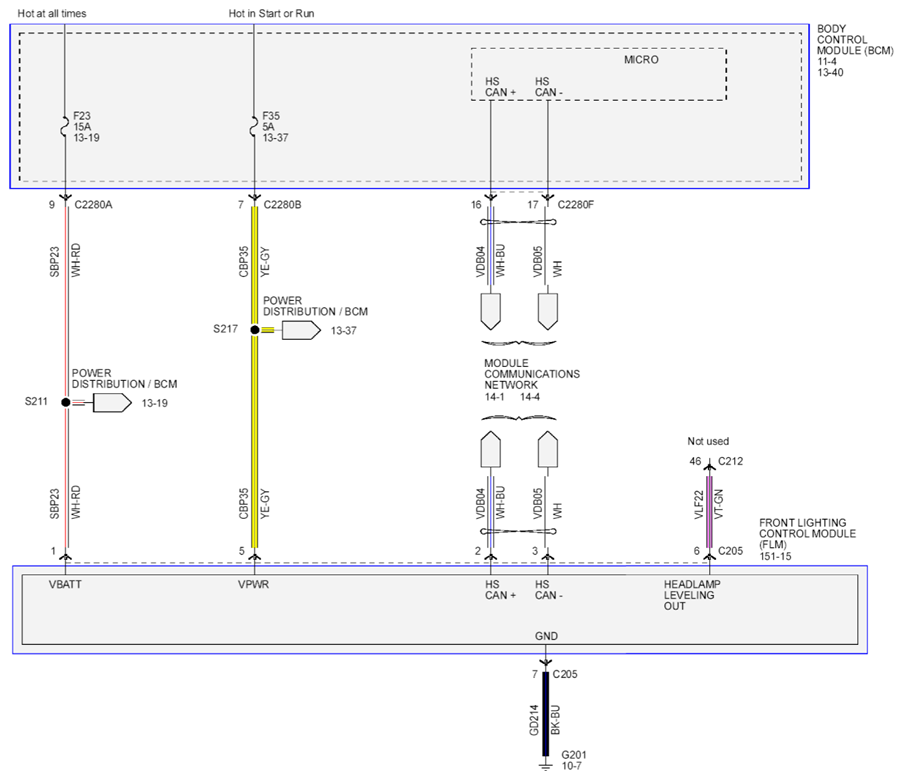

Fig 4: Parking Rear And License Lamps Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
