Without Halogen Headlamps

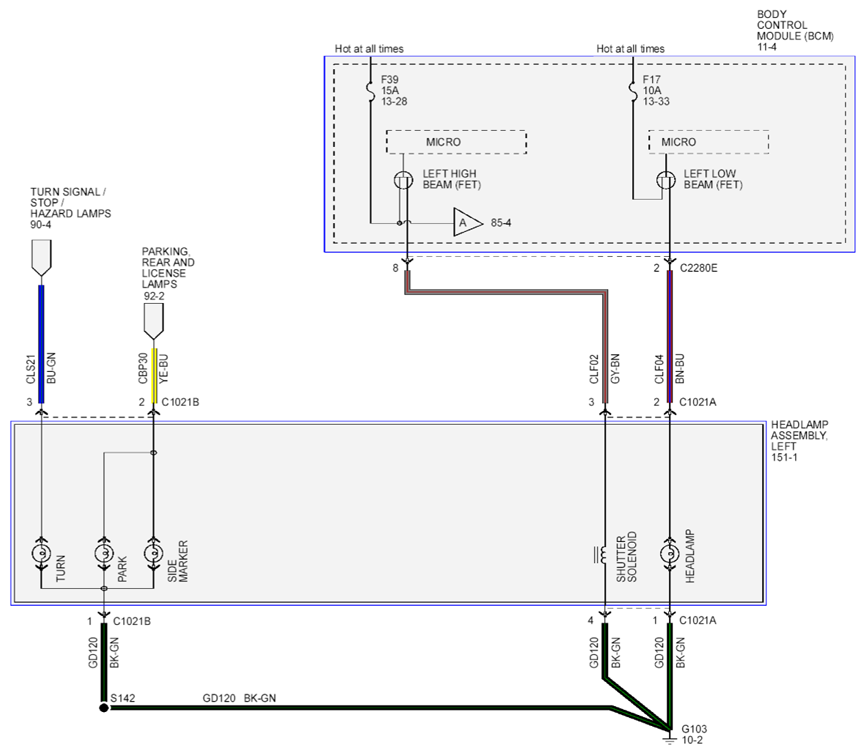

Fig 1: Headlamps And Autolamps Circuit Diagram (Without Halogen Headlamps) (View 3 Of 6)
G07895435Courtesy of FORD MOTOR CO.

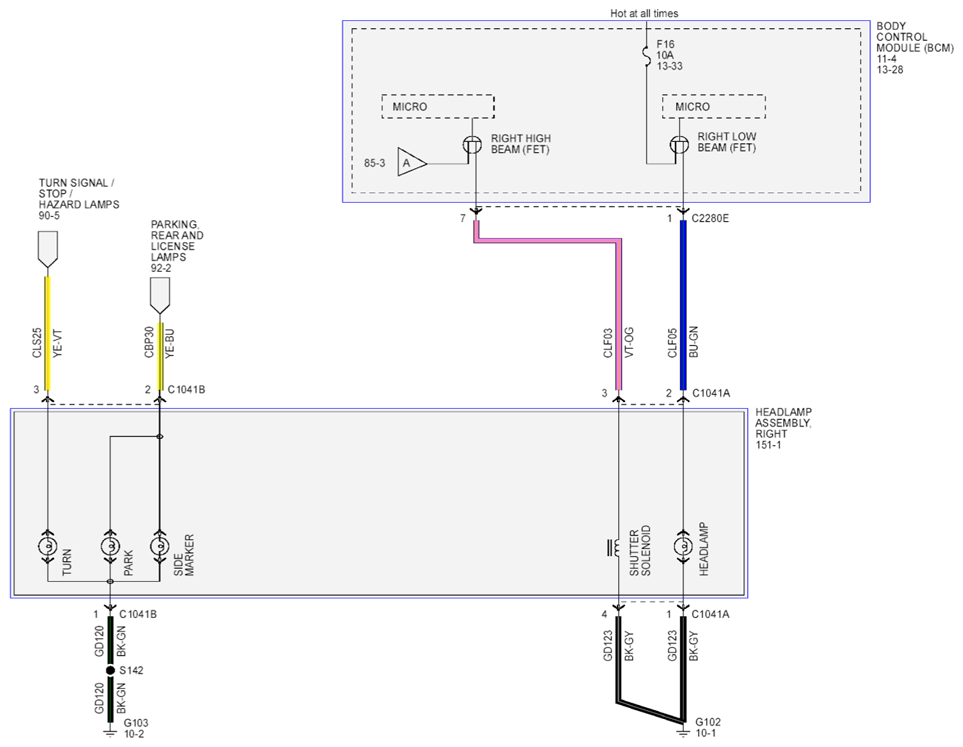

Fig 2: Headlamps And Autolamps Circuit Diagram (Without Halogen Headlamps) (View 4 Of 6)
G07895436Courtesy of FORD MOTOR CO.
