With Hid Headlamps

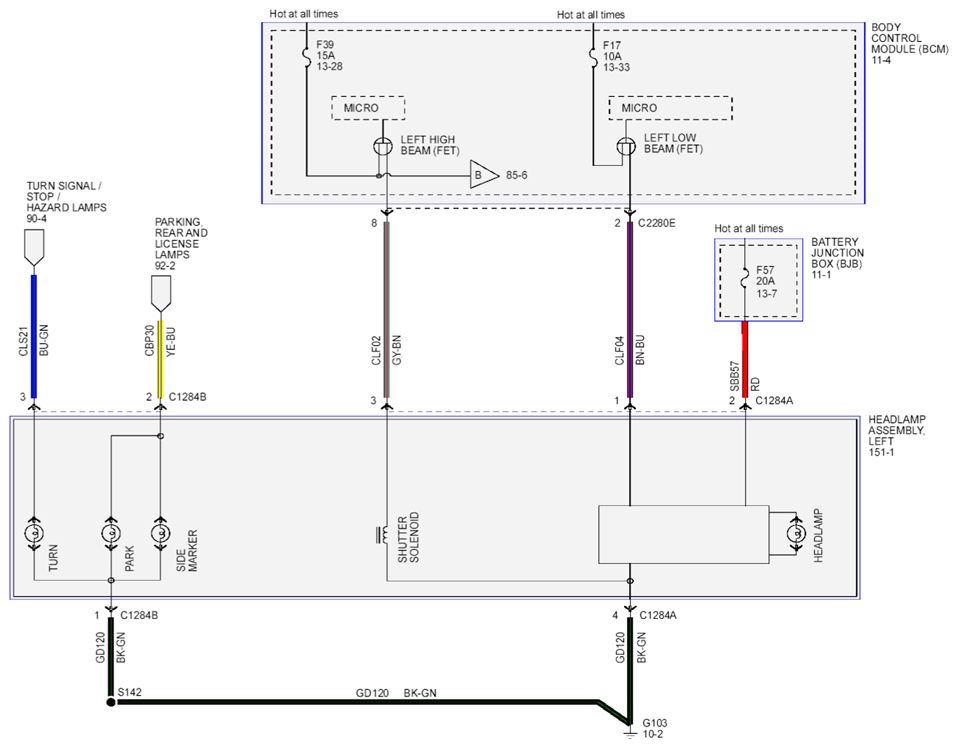

Fig 1: Headlamps And Autolamps Circuit Diagram (With Hid Headlamps) (View 5 Of 6)
G07895437Courtesy of FORD MOTOR CO.

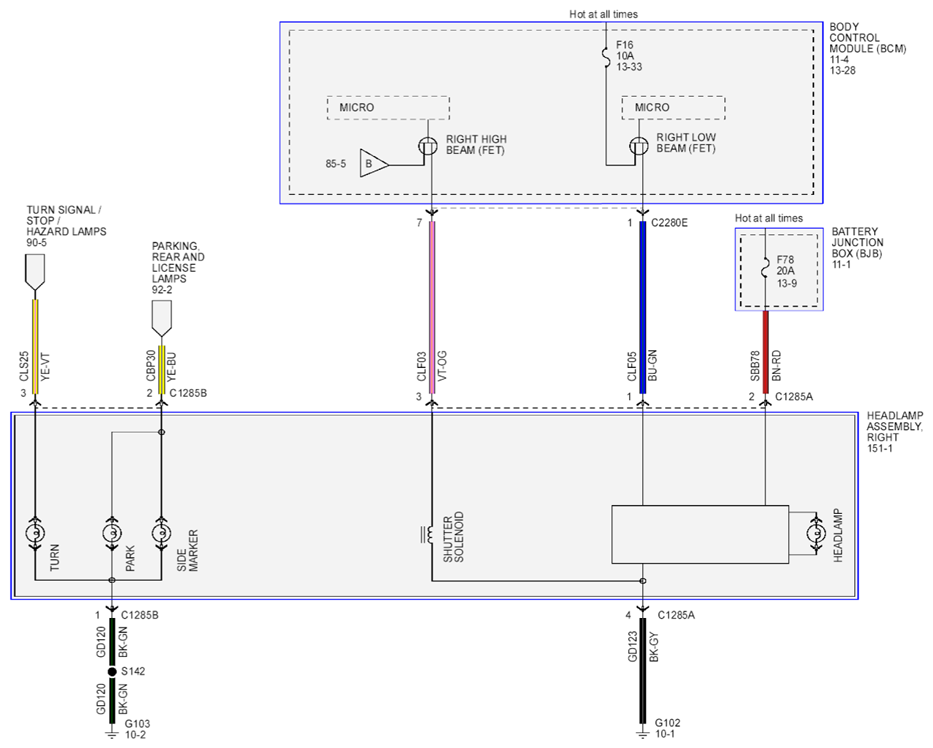

Fig 2: Headlamps And Autolamps Circuit Diagram (With Hid Headlamps) (View 6 Of 6)
G07895438Courtesy of FORD MOTOR CO.
