Pedal Positioning Switch: Service and Repair

Pedal Adjust Switch

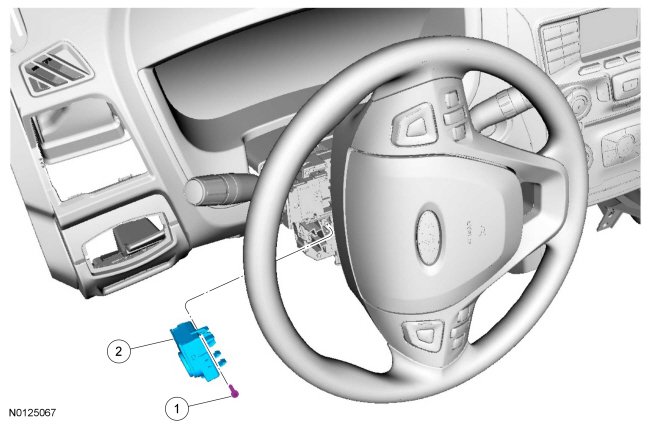

Exploded View










Removal

1. Remove the steering column shrouds. REFER to Steering Column Shroud .

2. Turn the steering wheel 90 degrees to the left.

3. Remove the screw and the pedal adjust switch.

Installation

1. Position the pedal adjust switch and install the screw.
- Tighten to 3 Nm (27 lb-in).

2. Install the steering column shrouds. REFER to Steering Column Shroud .
