Parking Assist Switch: Service and Repair

Active Park Assist Switch

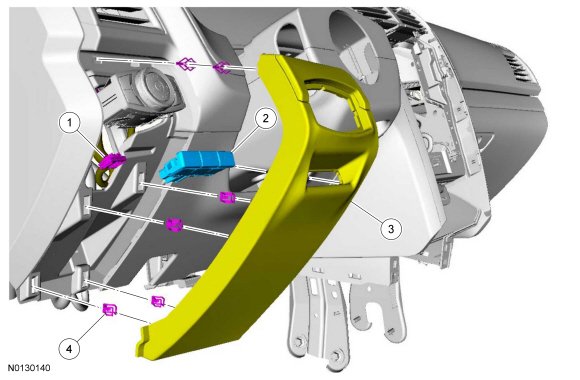

Exploded View










Removal

1. Remove the lower LH (Left Hand) instrument panel trim panel.

- Disconnect the 2 electrical connectors.

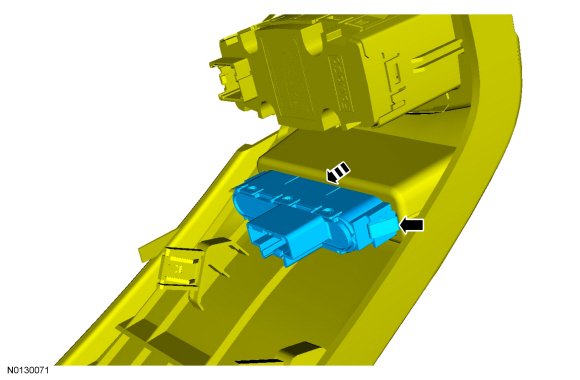

2. Release the retainers and remove the active park assist switch.





Installation

1. To install, reverse the removal procedure.
