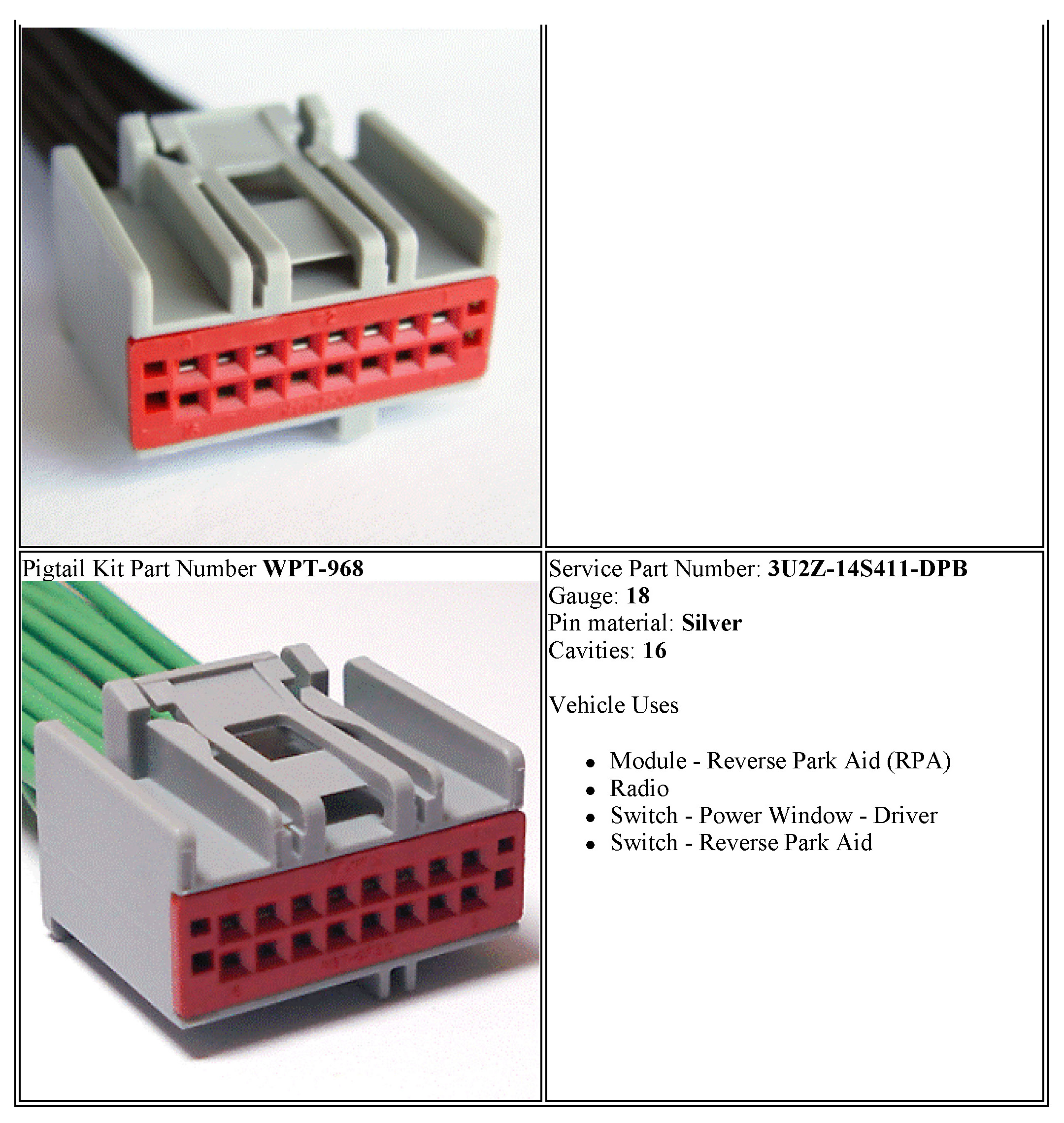

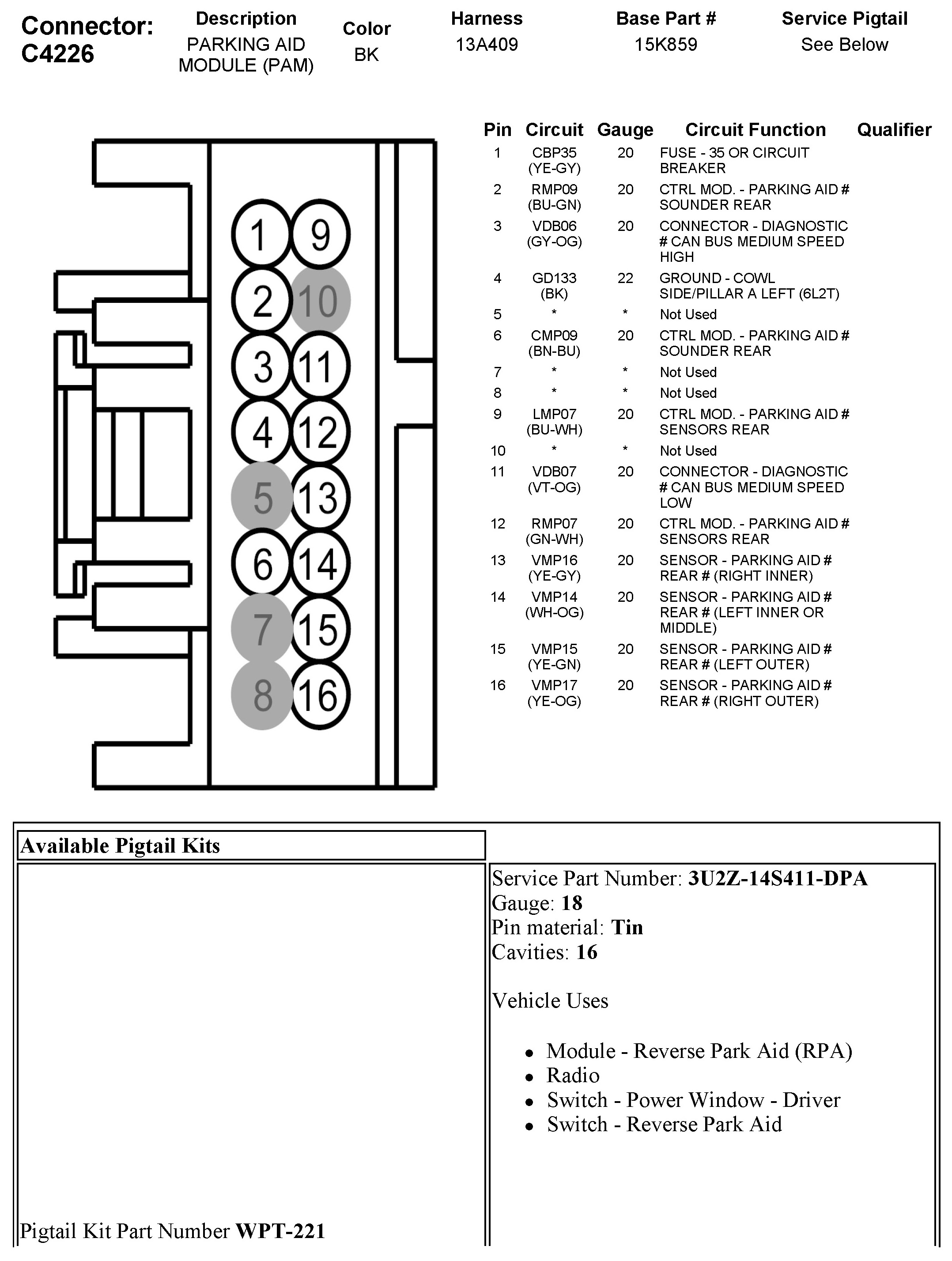

Home >> Ford >> 2012 >> Expedition 2WD V8-5.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Diagrams >> C4226 Parking Aid Module (PAM)
