LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
2012
>>
Expedition 2WD V8-5.4L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Parking Lamp
>>
Diagrams
>>
Connector Views
>>

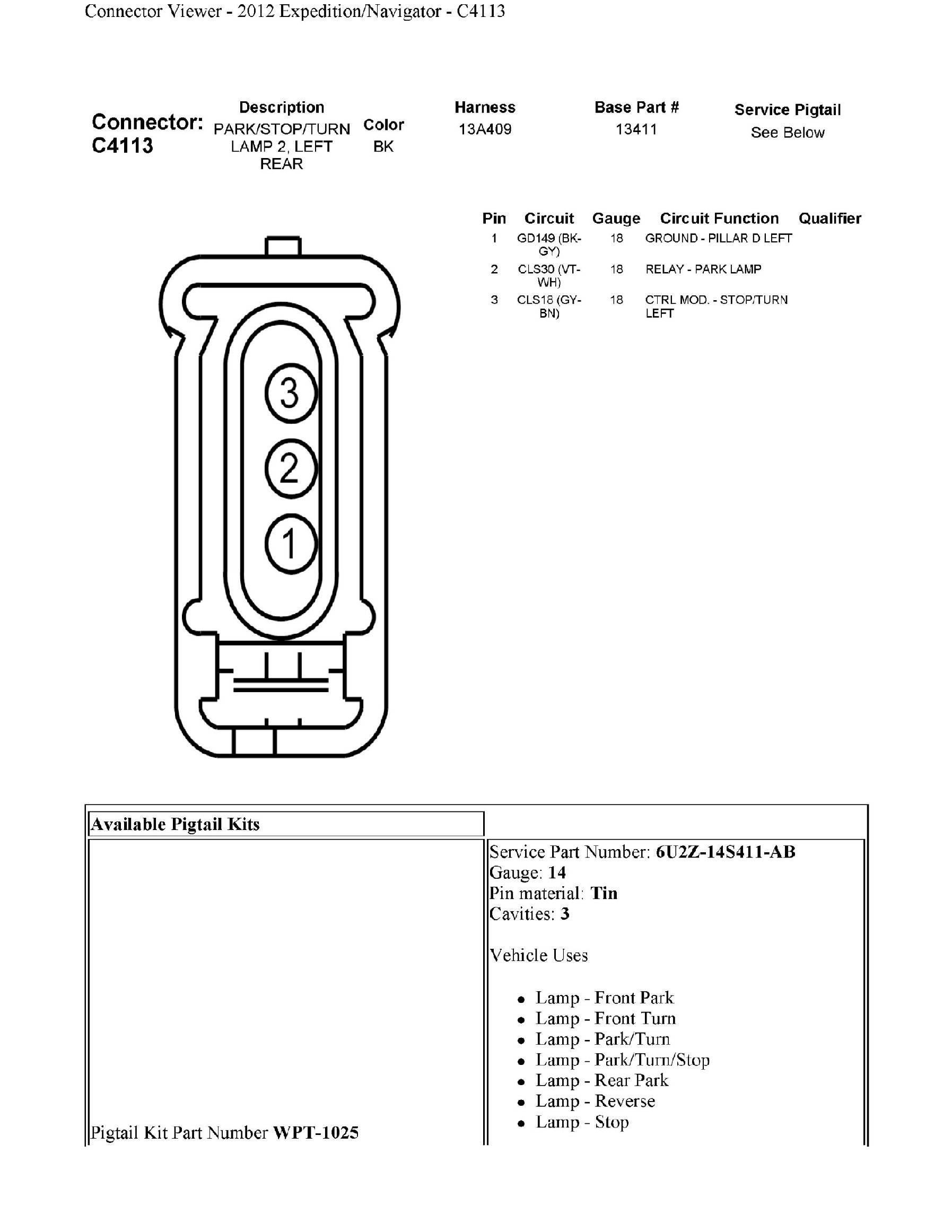

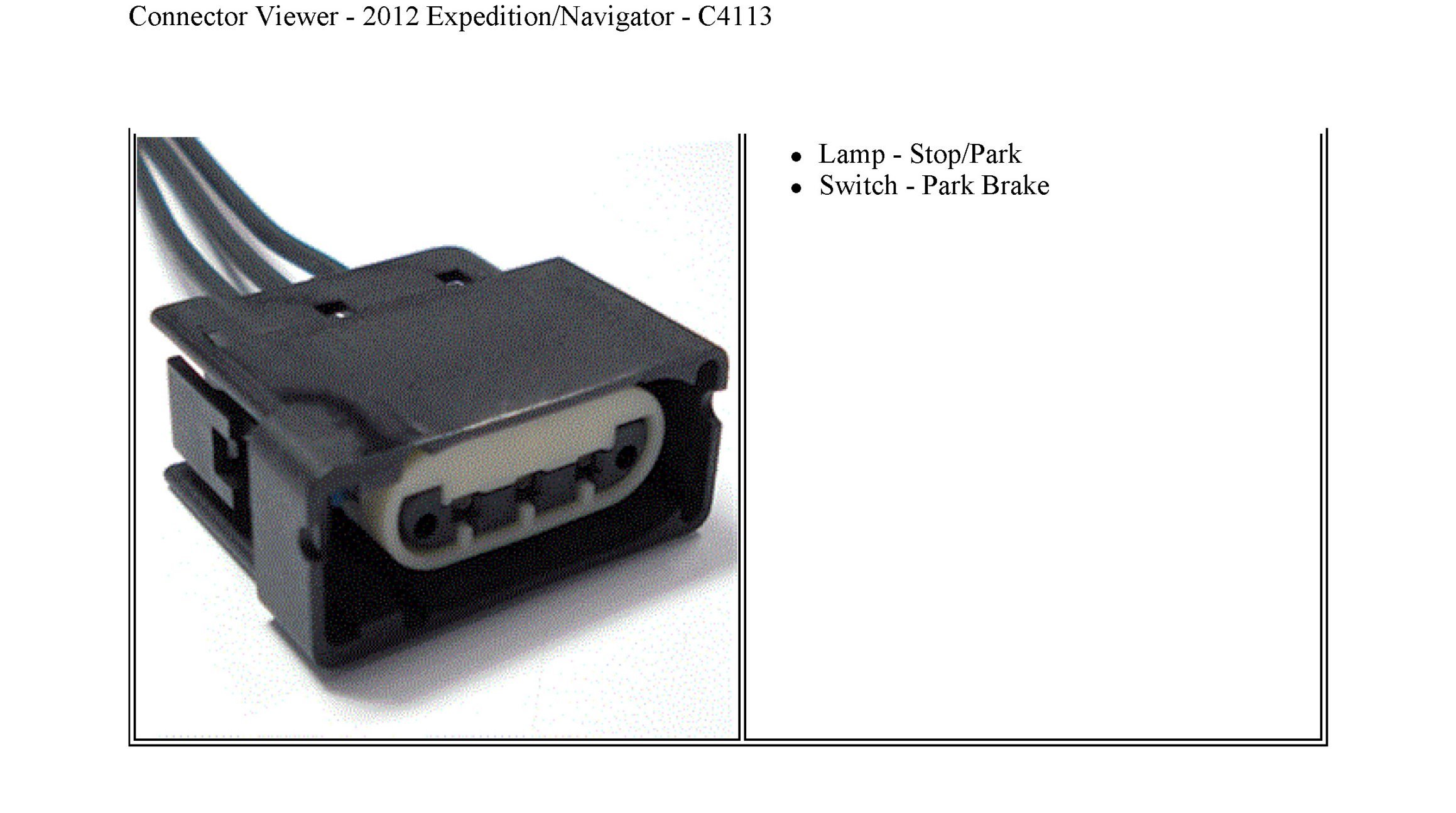

C4113 Park/Stop/Turn Lamp 2, Left Rear
C4113 Park/Stop/Turn Lamp 2, Left Rear
