Cargo Lamp: Service and Repair

Cargo Lamp

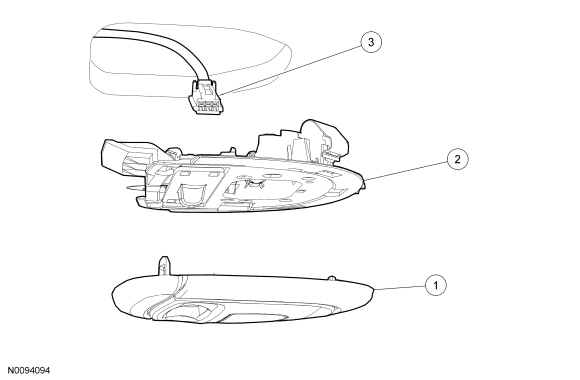

Removal and Installation

1. Remove the cargo lamp lens.





2. Release the 2 retaining clips (through the access holes) and remove the cargo lamp.
- Disconnect the electrical connector.






3. To install, reverse the removal procedure.
