Crankshaft Rear Seal

Crankshaft Rear Seal

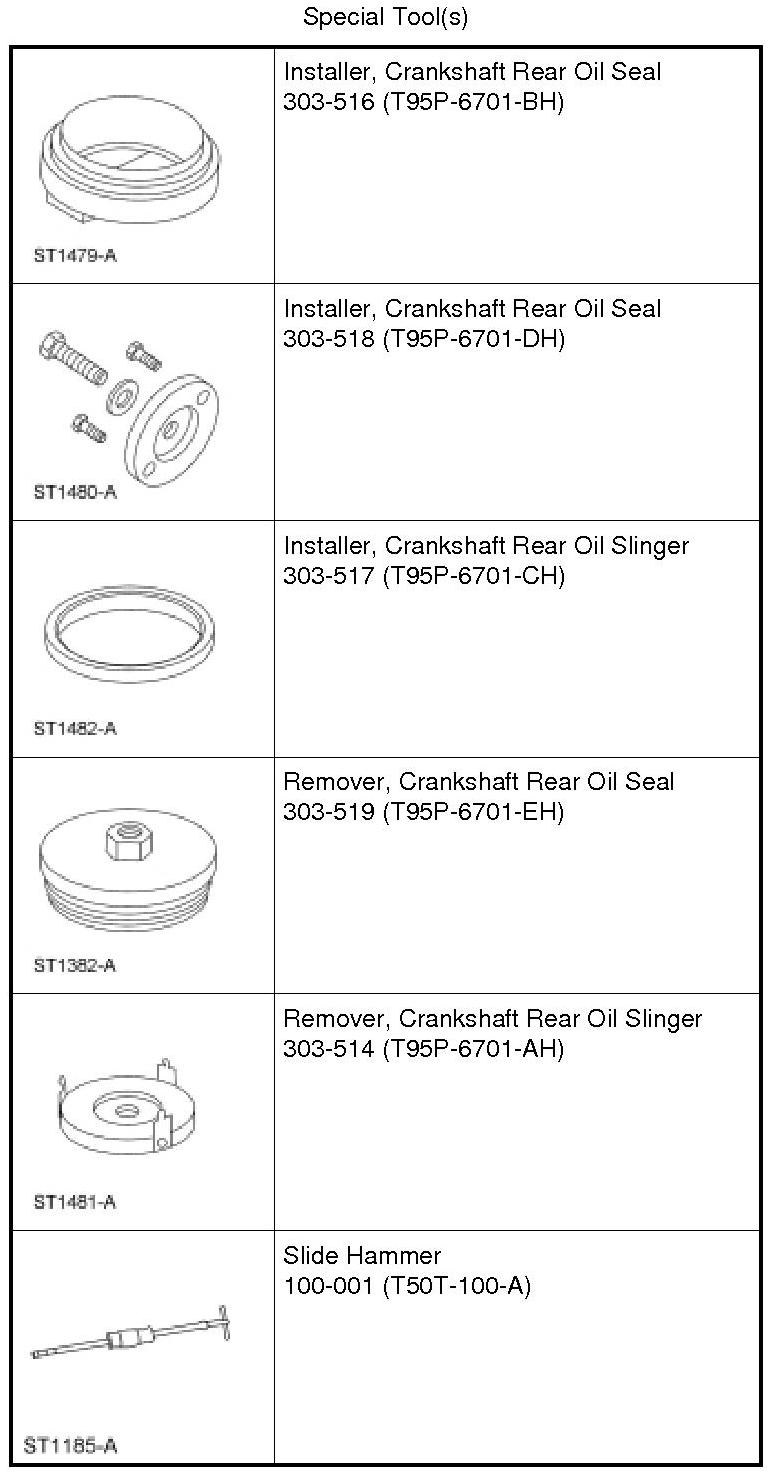

Removal

1. Remove the transmission.

2. Remove the 8 bolts and the flexplate.

3. Using the Slide Hammer and the Crankshaft Rear Oil Slinger Remover, remove and discard the crankshaft oil slinger.





4. Using the Slide Hammer and the Crankshaft Rear Oil Seal Remover, remove and discard the crankshaft rear seal.





Installation

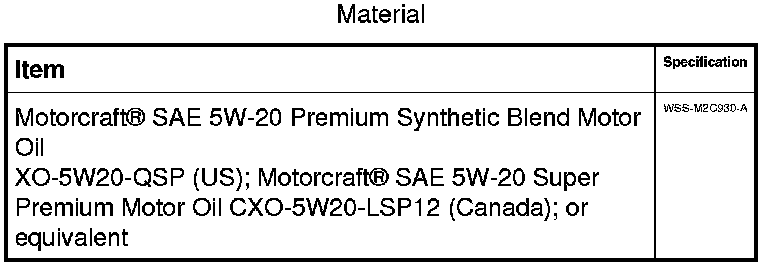

1. NOTE: Lubricate the crankshaft rear seal with clean engine oil prior to installation.

Using the Crankshaft Rear Oil Seal Installers, install a new crankshaft rear seal.






2. NOTE: Lubricate the crankshaft oil slinger with clean engine oil prior to installation.

Using the Crankshaft Rear Oil Seal Installers and the Crankshaft Rear Oil Slinger Installer, install a new crankshaft oil slinger.






3. Install the flexplate and tighten the 8 bolts in the sequence shown.
- Tighten to 80 Nm (59 lb-ft).






4. Install the transmission.
