Removal And Installation
WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

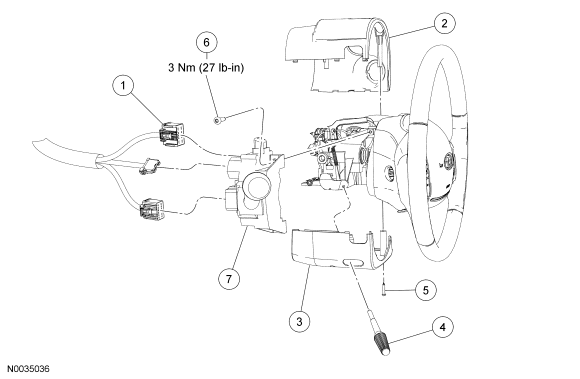

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Wiring harness, electrical connector |
| 2 | 3530 | Upper steering column shroud |
| 3 | 3533 | Lower steering column shroud |
| 4 | 3F609 | Tilt wheel handle and shank |
| 5 | 391727 | Shroud screw (3 required) |
| 6 | 390345 | Multi-function switch screw |
| 7 | 13K359 | Multi-function switch |
- Depower the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
- Remove the ignition switch lock cylinder.
- Insert the ignition key into the lock cylinder and turn the ignition switch to the RUN position.
- Push the ignition switch lock cylinder release tab with a punch while pulling out the ignition switch lock cylinder.
- If equipped, twist the tilt wheel handle and remove it.
- Remove the screws and the steering column shrouds.
- Remove the screws and the multi-function switch.
- To install, tighten to 3 Nm (27 lb-in).
- Disconnect the multi-function switch electrical connectors.
- To install, reverse the removal procedure.
- Repower the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
