Brake Pedal Angle Sensor: Notes

SPECIAL TOOLS CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

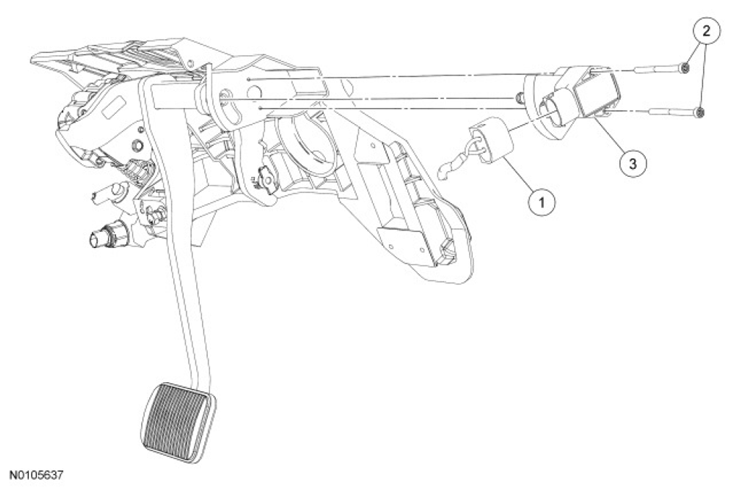

Fig 1: Identifying Brake Pedal Angle Sensor, Electrical Connector And Screws

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Brake pedal angle sensor electrical connector (part of 14290)
2	-	Brake pedal angle sensor screws (part of 14F385) (2 required)
3	14F385	Brake pedal angle sensor
