Parking Brake Warning Switch: Service and Repair

Parking Brake Warning Indicator Switch

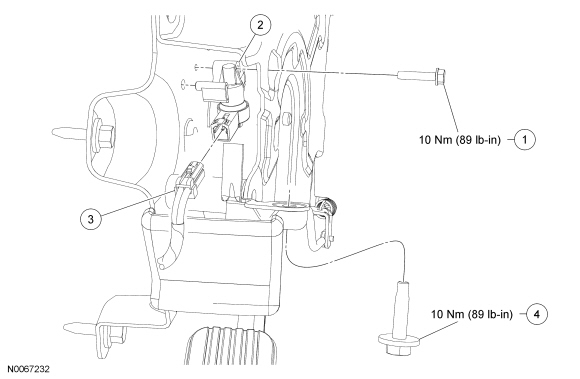

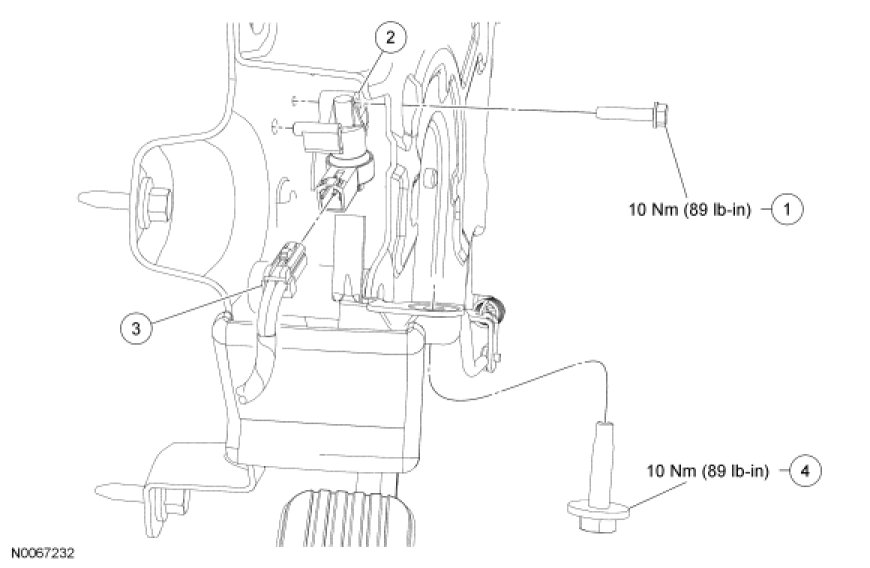

Removal and Installation










1. Remove the parking brake release handle bolt.
- To install, tighten to 10 Nm (89 lb-in).


2. Disconnect the warning indicator switch electrical connector.

3. Remove the bolt and warning indicator switch.
- To install, tighten bolt to 10 Nm (89 lb-in).


4. To install, reverse the removal procedure.
