Removal And Installation: Turbocharger: Notes

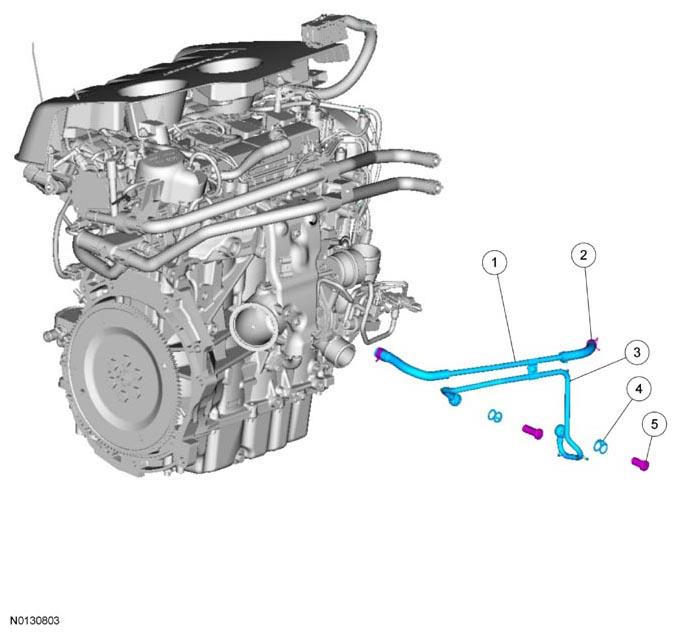

Fig 1: Identifying Turbocharger Components (1 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8K153	Water outlet tube assembly
2	-	Water outlet tube assembly clamp (2 required) (part of 8K153)
3	8555	Water inlet hose assembly
4	9P431	Water inlet hose assembly linked washer (2 required)
5	W715500	Water inlet hose assembly bolt (2 required) - Tighten to 28 Nm (21 lb-ft)

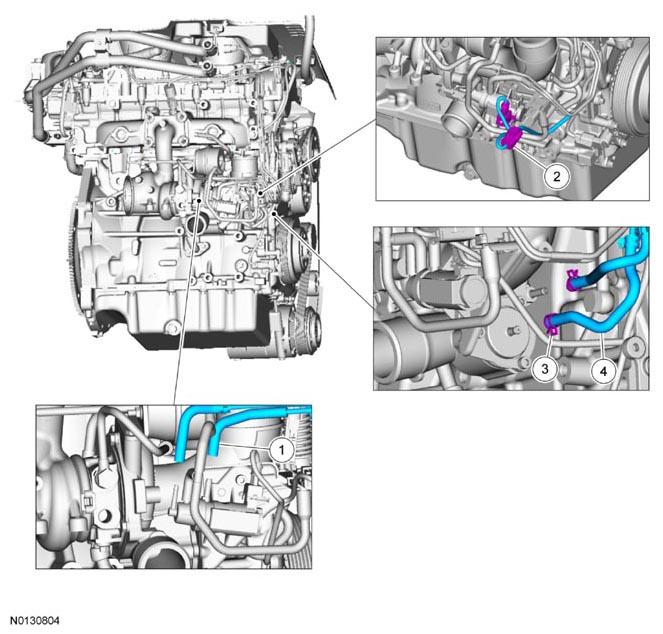

Fig 2: Identifying Turbocharger Components (2 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Turbocharger vacuum hose connection (2 required) (part of 9S468)
2	-	Turbocharger electrical connector (2 required) (part of 12A581)
3	-	Turbocharger vacuum hose connection clamp (2 required) (part of 9E499)
4	-	Turbocharger vacuum hose connection (2 required) (part of 6K682)

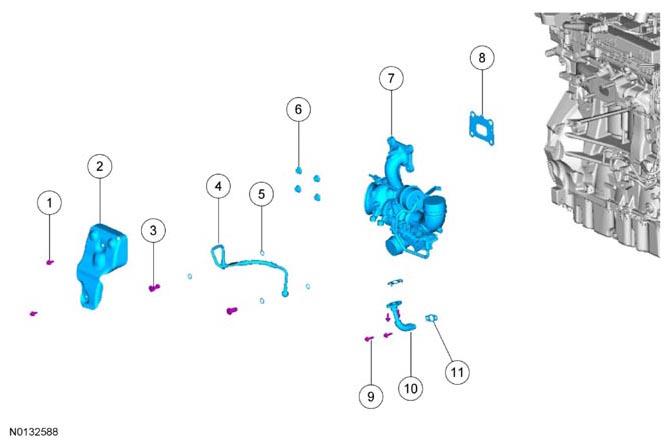

Fig 3: Identifying Turbocharger Components (3 Of 3)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W714133	Turbocharger heat shield bolt (2 required) - Tighten to 10 Nm (89 lb-in)
2	9N454	Turbocharger heat shield
3	00812	Cylinder block oil to engine turbocharger pipe bolt (2 required) - Tighten to 25 Nm (18 lb-ft)
4	6K679	Cylinder block oil to engine turbocharger pipe
5	W715323	Cylinder block oil to engine turbocharger pipe gasket (2 required)
6	W713095	Turbocharger nut (4 required)
7	6K682	Turbocharger
8	9448	Turbocharger gasket
9	W500212	Turbocharger oil drain tube bolt (4 required) - Tighten to 10 Nm (89 lb-in)
10	6L092	Turbocharger oil drain tube
11	6N652	Turbocharger oil drain tube gasket (2 required)
