Removal And Installation: Turbocharger: Installation

    NOTE: Tighten the 4 new turbocharger nuts in the sequence shown in the figure.
  1. Install a new gasket, the turbocharger and 4 new nuts. Tighten the nuts in the sequence shown in the figure.
    • Tighten to 50 Nm (37 lb-ft).

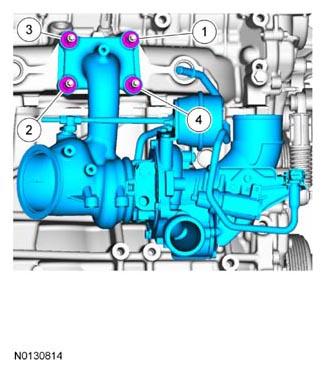

      Fig 1: Turbocharger Nuts Tightening Sequence
      G07928600Courtesy of FORD MOTOR CO.
  2. NOTE: Install a new turbocharger oil drain tube and gaskets. By not doing so, the turbocharger oil drain tube may leak and cause engine damage.
  3. Install the 4 bolts, a new turbocharger oil drain tube and 2 new gaskets.
    • Tighten to 10 Nm (89 lb-in).
      Fig 2: Locating Turbocharger Oil Drain Tube Bolt
      G07930670Courtesy of FORD MOTOR CO.
  4. Install the 2 bolts and the heat shield.
    • Tighten to 10 Nm (89 lb-in).

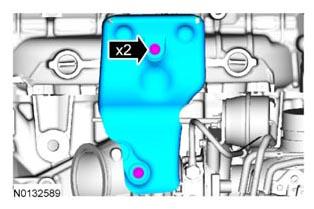

      Fig 3: Locating Heat Shield Bolt
      G07930669Courtesy of FORD MOTOR CO.
  5. Connect the 2 turbocharger vacuum hose connections.
    Fig 4: Locating Turbocharger Vacuum Hoses Connections
    G07930668Courtesy of FORD MOTOR CO.
  6. Connect the 2 turbocharger electrical connectors.
    Fig 5: Locating Turbocharger Electrical Connectors
    G07930667Courtesy of FORD MOTOR CO.
  7. NOTE: Install a new cylinder block oil to engine turbocharger pipe and new gaskets.
  8. Install a new cylinder block oil to engine turbocharger pipe, new gaskets and the 2 bolts.
    • Tighten to 25 Nm (18 lb-ft).
      Fig 6: Locating Cylinder Block Oil To Engine Turbocharger Pipe Bolts
      G07930666Courtesy of FORD MOTOR CO.
  9. Connect the 2 vacuum hose connections to the turbocharger.
    Fig 7: Locating Turbocharger Vacuum Hose Connections
    G07930665Courtesy of FORD MOTOR CO.
  10. NOTE: Both water outlet tube clamps must be installed between the 2 paint stripes on hoses.
  11. Install the water outlet tube and the water inlet hose assembly.
    • Connect the 2 water outlet tube clamps.
    • Install the 2 bolts and new linked washers.
      • Tighten to 28 Nm (21 lb-ft).
        Fig 8: Locating Water Outlet Tube Clamps And Bolts
        G07930664Courtesy of FORD MOTOR CO.
  12. Fill and bleed the cooling system. For additional information, refer to ENGINE COOLING .
  13. Install the lower Charge Air Cooler (CAC) inlet tube and the turbocharger inlet pipe. For additional information, refer to the Exploded View in INTAKE AIR DISTRIBUTION & FILTERING .
  14. Install the catalytic converter - 2.0L Gasoline Turbocharged Direct Injection (GTDI). For additional information, refer to EXHAUST SYSTEM .
  15. If equipped, remove the splash shield.
