Description And Operation: Turbocharger: Turbochargers
NOTE:
Black arrows indicate hot, white arrows indicate cold.

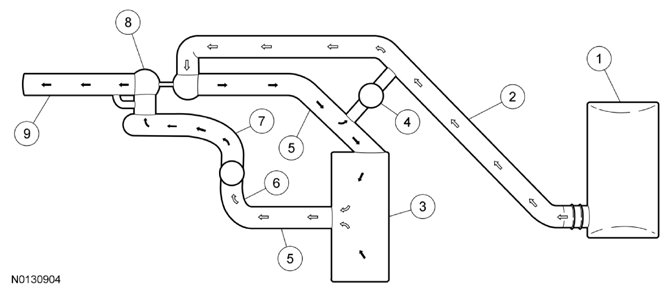

| Item | Part Number | Description |
|---|---|---|
| 1 | 9600 | Air Cleaner (ACL) |
| 2 | 9B659 | ACL outlet pipe |
| 3 | 6K775 | Charge Air Cooler (CAC) |
| 4 | 9S468 | Turbocharger bypass valve |
| 5 | 6C646 | CAC tube |
| 6 | 9424 | Intake manifold |
| 7 | 6051 | Cylinder head |
| 8 | 6K682 | Turbocharger |
| 9 | 5E212 | Catalytic converter |
