Removal and Installation

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner outlet pipe. For additional information, refer to Intake Air System Components-Exploded View in INTAKE AIR DISTRIBUTION & FILTERING .

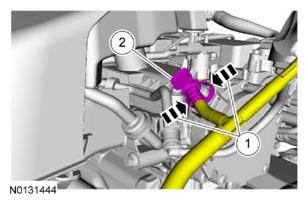

Fig 1: Removing Air Cleaner Outlet Pipe
Courtesy of FORD MOTOR CO.
- To install, tighten to 10 Nm (89 lb-in).

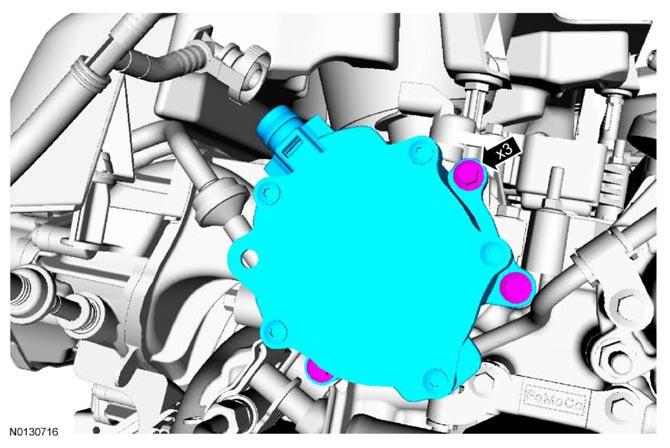

  Fig 2: Locating Brake Vacuum Pump Gasket Bolts
  Courtesy of FORD MOTOR CO.
Inspect and, if necessary, install a new brake vacuum pump gasket.

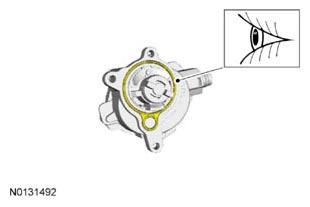

Fig 3: Inspecting Brake Vacuum Pump Gasket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
