Crankcase Vent Oil Separator

Crankcase Vent Oil Separator

Removal and Installation










1. Remove the intake manifold.

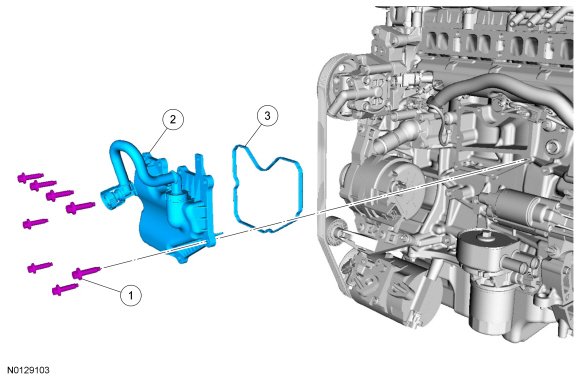

2. Remove the 8 bolts, crankcase vent oil separator and the gasket.
- To install, tighten to 10 Nm (89 lb-in).


3. NOTE: Clean and inspect the gasket mating surfaces.
To install, reverse the removal procedure.

- Inspect and replace the crankcase vent oil separator gasket as necessary.
