Part 1

Camshaft














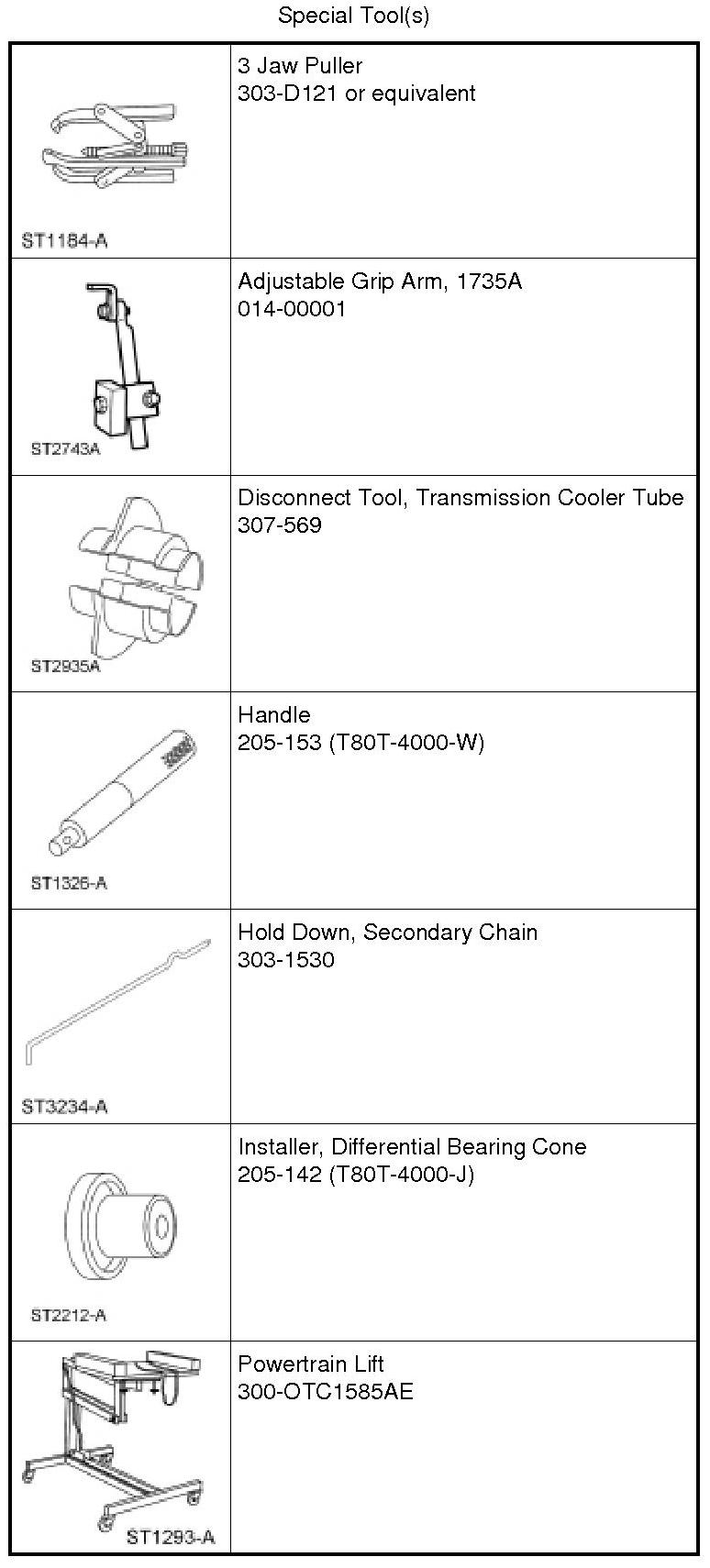

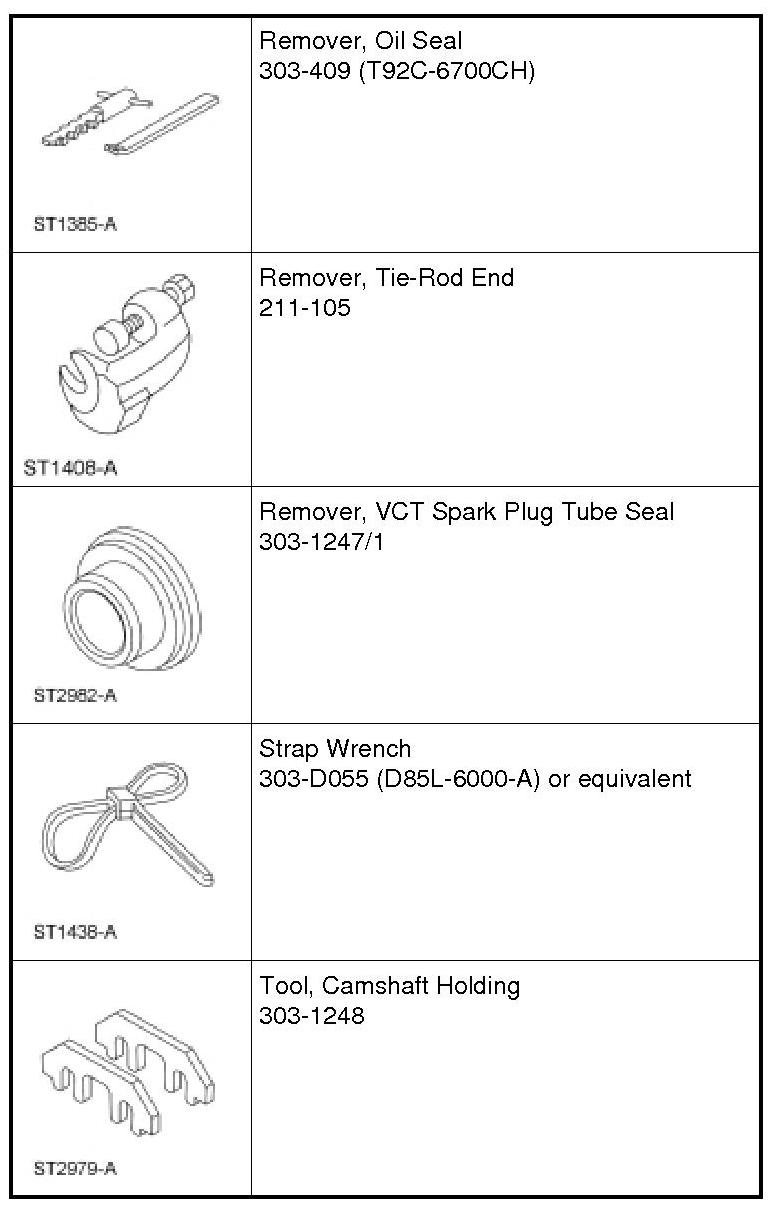

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

All vehicles

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the engine appearance cover. For additional information, refer to Engine Appearance Cover- Exploded View [1][2]Access Cover, Engine.

3. Recover the A/C system.

4. Release the fuel system pressure.

5. NOTE: Use a steering wheel holding device (such as Hunter(R) 28-75-1 or equivalent).
Using a suitable holding device, hold the steering wheel in the straight-ahead position.






6. Drain the engine cooling system.

7. Remove the accessory drive belt and the power steering belt.

8. Remove the LH halfshaft and intermediate shaft.

9. Disconnect the power steering cooler hose and drain the power steering fluid into a suitable drain pan.





10. Remove the degas bottle.

11. Remove the engine Air Cleaner (ACL) and ACL (Air Cleaner) outlet pipe.

12. Remove the battery tray.

13. Remove the 2 nuts and disconnect the power feed from the battery terminal.
- Disconnect the wiring harness electrical connector.

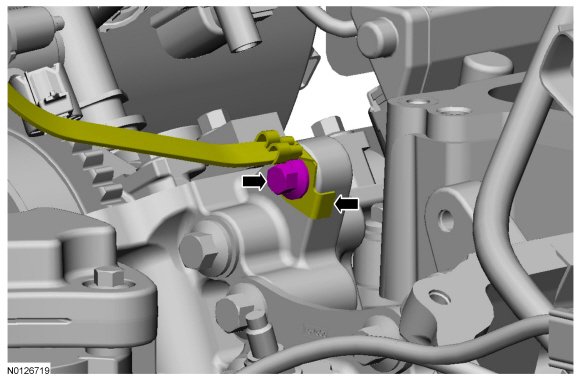

14. Remove the nut and the ground wire.
- Disconnect the wiring harness electrical connector.






15. Detach the 2 wiring harness retainers from the stud bolt and bracket.

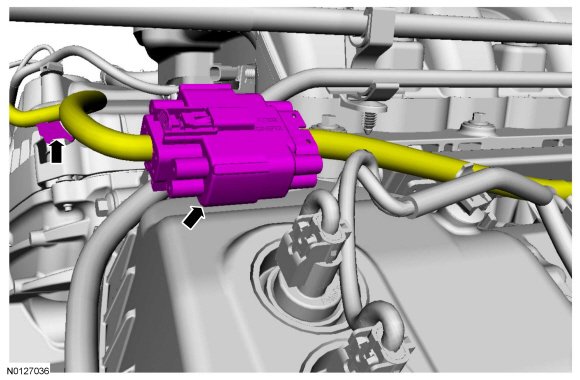

16. Disconnect the wiring harness electrical connector.

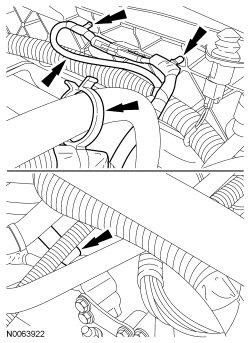

17. Detach the 3 wiring harness retainers from the bracket and inner fender.





18. Disconnect the vacuum hose from the upper intake manifold.





19. Disconnect the upper radiator hose, lower radiator hose and 2 heater hoses from the thermostat housing.





20. Disconnect the transaxle control cable from the control lever.
- Detach the control cable from the bracket.






21. If equipped, detach the engine block heater harness retainers from the radiator support and the A/C suction tube.





22. Remove the nut and disconnect the A/C pressure tube fitting.
- Discard the O-ring seal.






23. Remove the safety clip from the A/C fitting.
- Disconnect the A/C suction tube fitting.






24. Disconnect the hose from the power steering reservoir.





25. Disconnect the 2 PCM electrical connectors.

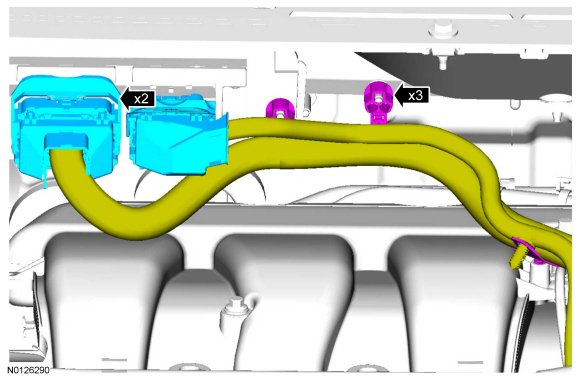

- Detach the 3 wiring harness retainers.






26. Disconnect the wiring harness electrical connector.
- Detach the wiring harness retainer from the RH valve cover stud bolt.






27. Remove the oil level indicator.





28. Remove the bolt and the ground wire from the engine front cover.





29. Remove the nut and the radio interference capacitor wire from the engine front cover stud.





30. Remove the exhaust Y-pipe.

31. Remove the LH inner splash shield.

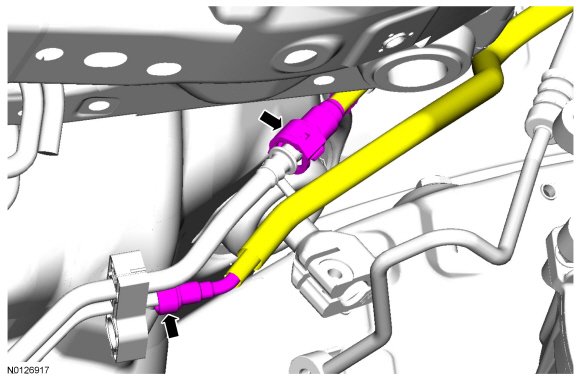

32. Remove the 2 secondary latches from the transmission fluid cooler tubes.





33. Using the Transmission Cooler Tube Disconnect Tool, disconnect the transmission cooling tubes.





34. Remove the drain plug and drain the engine oil.
- Install the drain plug and tighten to 27 Nm (20 lb-ft).






35. Remove and discard the engine oil filter.





36. Remove the power steering cooler bracket bolt from the RH side of the subframe.





All-Wheel Drive (AWD) vehicles

37. NOTE: Index-mark the driveshaft for installation.
Remove the 4 bolts and support the driveshaft with a length of mechanic's wire.






All vehicles

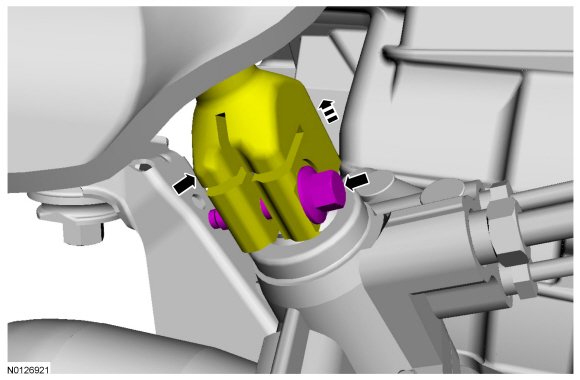

38. Remove the 2 nuts and the roll restrictor heat shield.





39. Remove the engine roll restrictor-to-subframe through bolt.

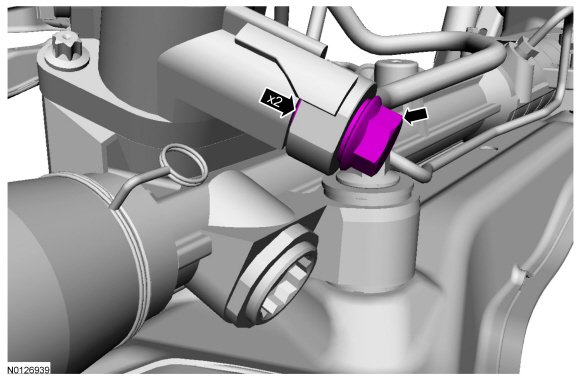

40. Remove and discard the Power Steering Pressure (PSP) tube-to-steering gear banjo bolt and the 2 seals.





41. NOTICE: Do not allow the intermediate shaft to rotate while it is disconnected from the gear or damage to the clockspring can occur. If there is evidence that the intermediate shaft has rotated, the clockspring must be removed and recentered. For additional information, refer to Restraints and Safety Systems &/or Air Bag Systems.

Remove and discard the steering intermediate shaft bolt.
- Separate the steering intermediate shaft from the steering gear.






42. NOTE: RH shown, LH similar.
Remove and discard the cotter pins and tie-rod end nuts.

- Using the Tie-Rod End Remover, separate the tie-rod ends from the wheel knuckles.






43. Remove the 3 RH subframe-to-lower bumper nuts.





44. Remove the 3 LH subframe-to-lower bumper nuts and separate the lower bumper from the subframe.

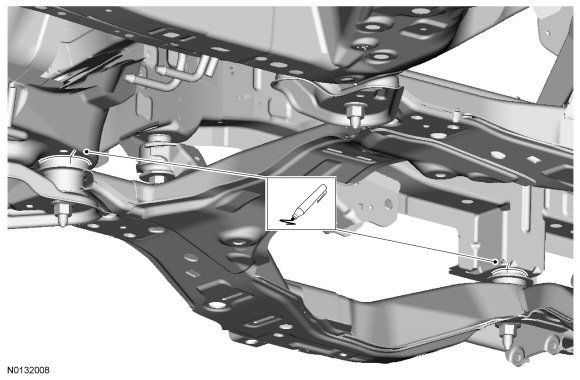

45. Mark the relationship of the front subframe to the underbody at the mounting locations.





46. Position the Powertrain Lift under the subframe assembly.

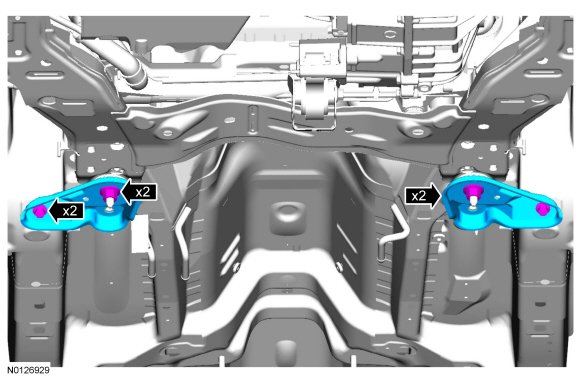

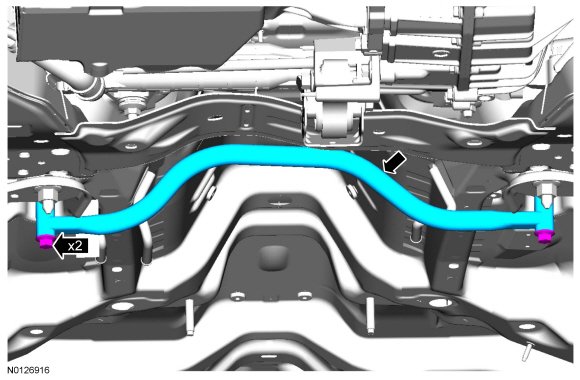

47. Remove the 2 bolts and the subframe brace.





48. Remove the 2 nuts, 2 bolts and the 2 subframe support brackets.





49. Remove the 2 front subframe nuts.





50. Remove the 2 middle subframe nuts.





51. Using the Powertrain Lift, lower the subframe assembly from the vehicle.





52. NOTICE: The fuel and vapor tube assembly clip must remain attached to the transaxle case stud during engine removal. Failure to follow these instructions can result in damage to the fuel and vapor tube assembly.

Disconnect the fuel supply tube and Evaporative Emission (EVAP) tube quick connect couplings.





53. NOTE: Position a block of wood under the transaxle.

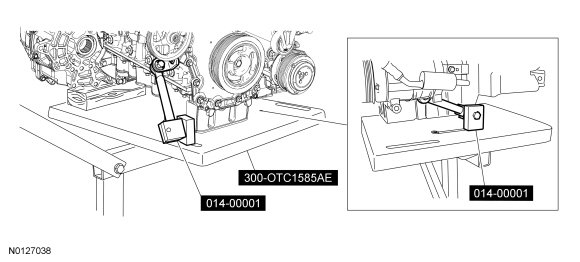

Install the Powertrain Lift and Adjustable Grip Arms.






54. Remove the transaxle support insulator through bolt and nut.





55. Remove the 3 nuts, the bolt and the transaxle support insulator bracket.





56. Remove the nut, bolt and engine mount brace.





57. Remove the 4 engine mount nuts.





58. Remove the 3 bolts and the engine mount.





59. Lower the engine and transaxle assembly from the vehicle.

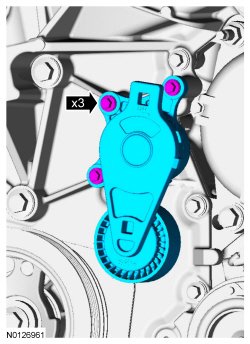

60. Remove the 3 bolts and the accessory drive belt tensioner.





61. Using the Strap Wrench, remove the crankshaft pulley bolt and washer.
- Discard the bolt.






62. Using the 3 Jaw Puller, remove the crankshaft pulley.





63. Using the Oil Seal Remover, remove and discard the crankshaft front seal.

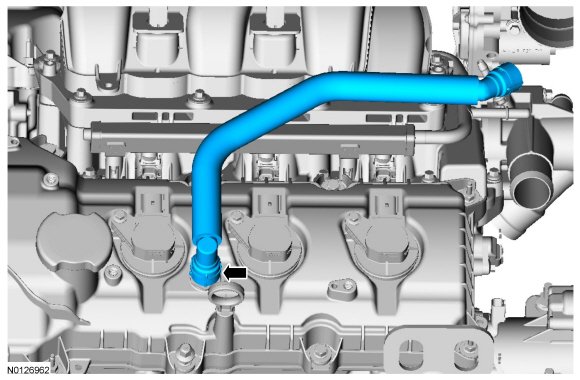

64. Remove the crankcase vent tube.

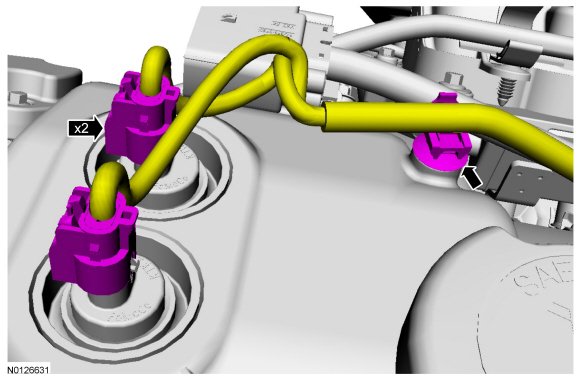

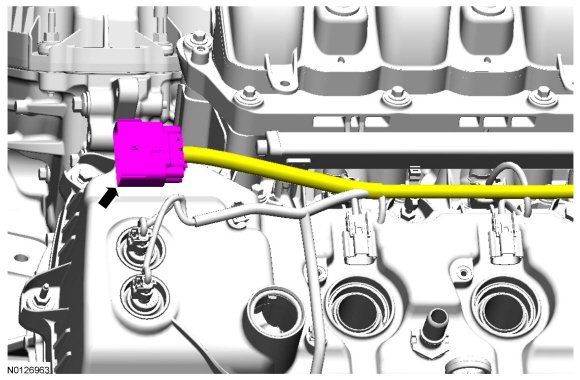

65. Disconnect the 3 LH coil-on-plug electrical connectors.





66. Remove the 3 bolts and the 3 LH -coil-on-plugs.





67. Detach the wiring harness connector pin-type retainer from the LH valve cover.

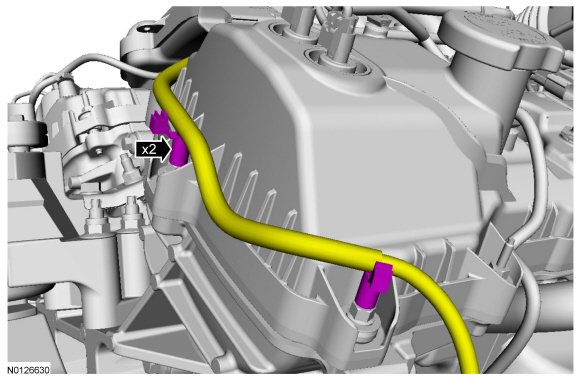

68. Detach the 2 wiring harness retainers from the LH valve cover stud bolts and position the harness aside.





69. Disconnect the 2 Variable Camshaft Timing (VCT) oil control solenoid electrical connectors.

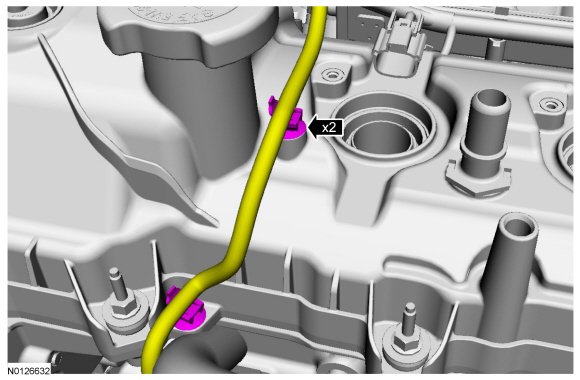

- Detach the wiring harness pin-type retainer.






70. Detach the 2 wiring harness pin-type retainers.
