Steering Column Switches

Steering Column Switches

DTC Charts

Body Control Module (BCM) DTC Chart

NOTE: Any push button start system fault results in DTCs being stored in the Remote Function Actuator (RFA) module and BCM (Body Control Module). Correct all RFA (Remote Function Actuator) module DTCs prior to diagnosing the BCM (Body Control Module) DTCs listed below.






Remote Function Actuator (RFA) Module DTC Chart

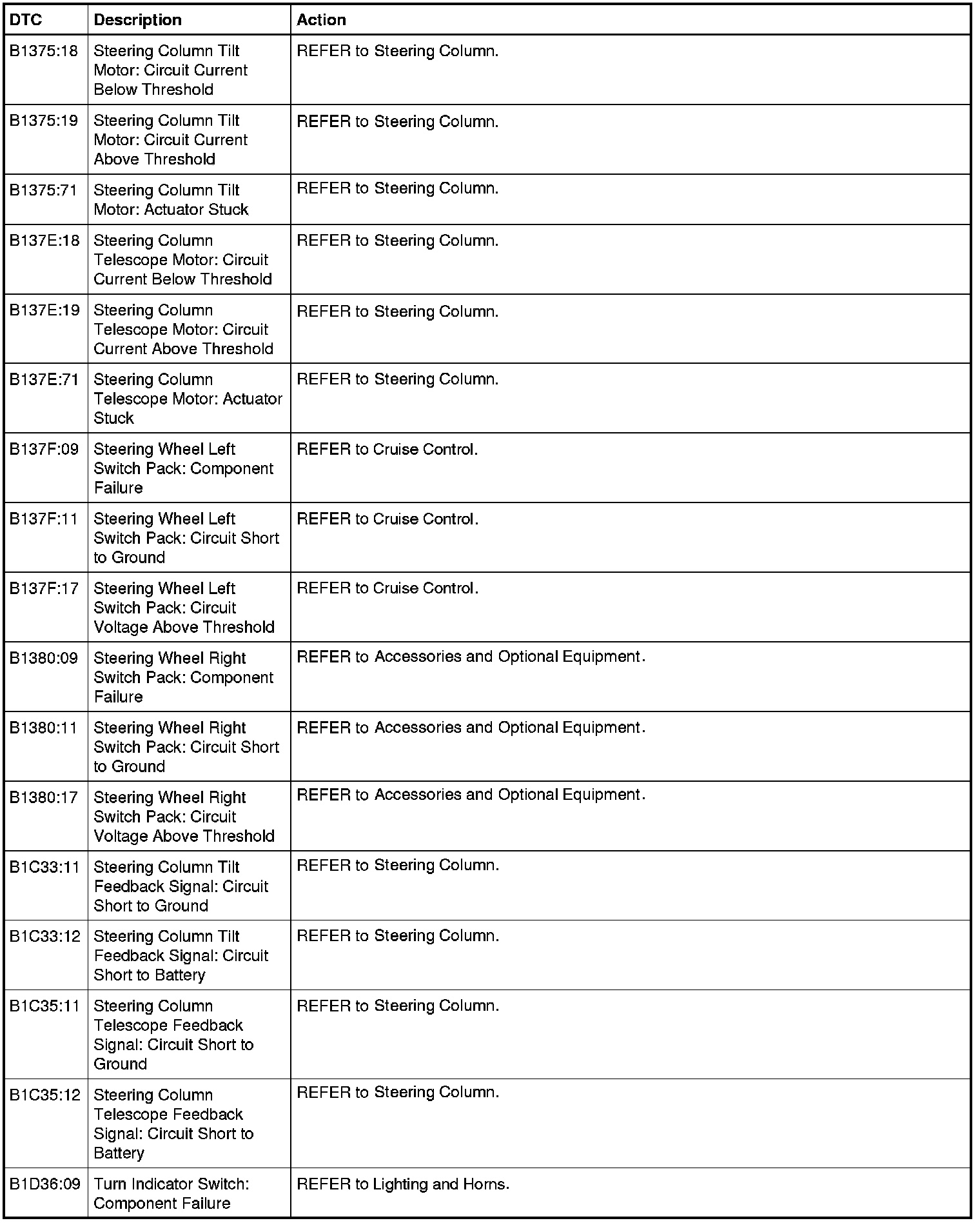

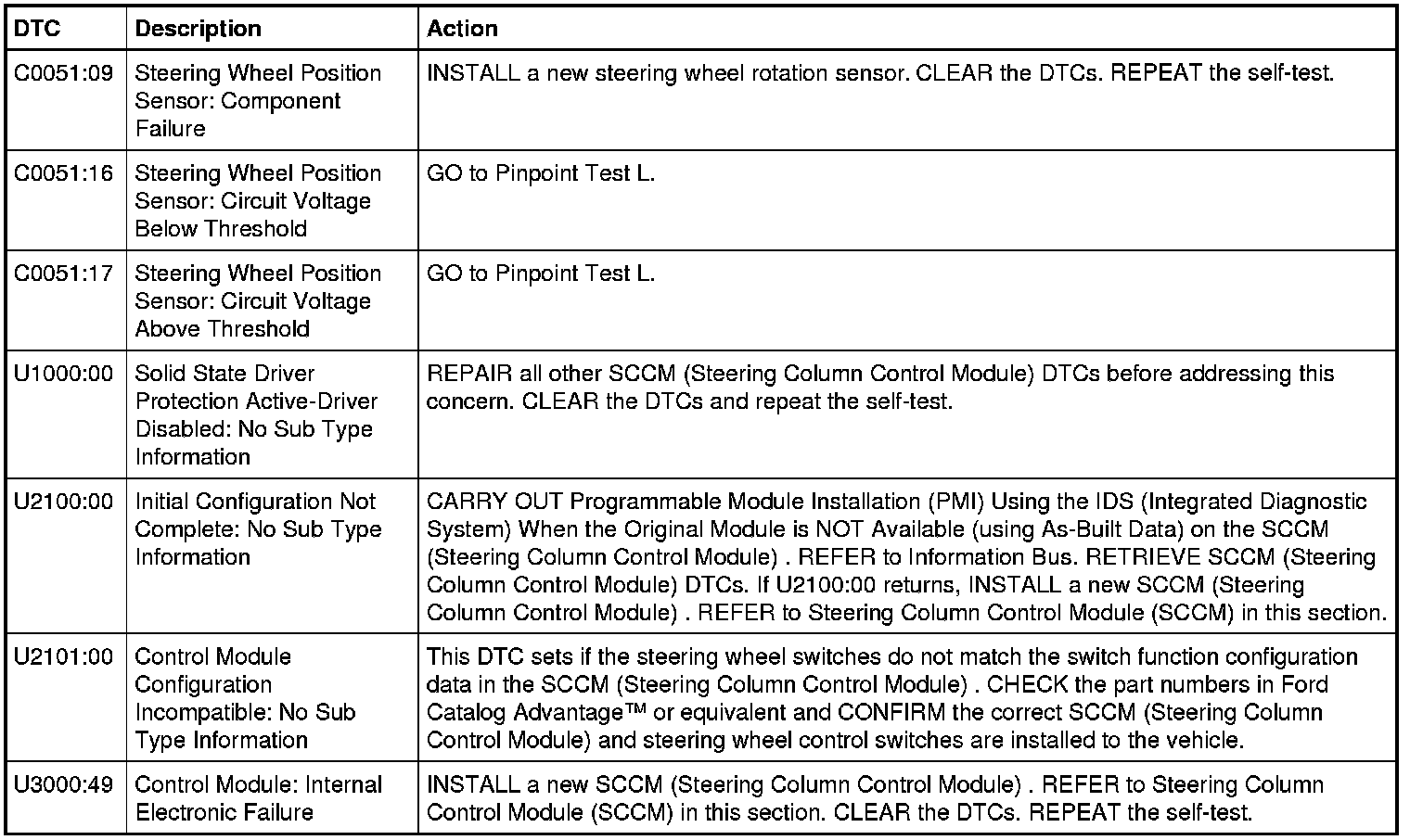

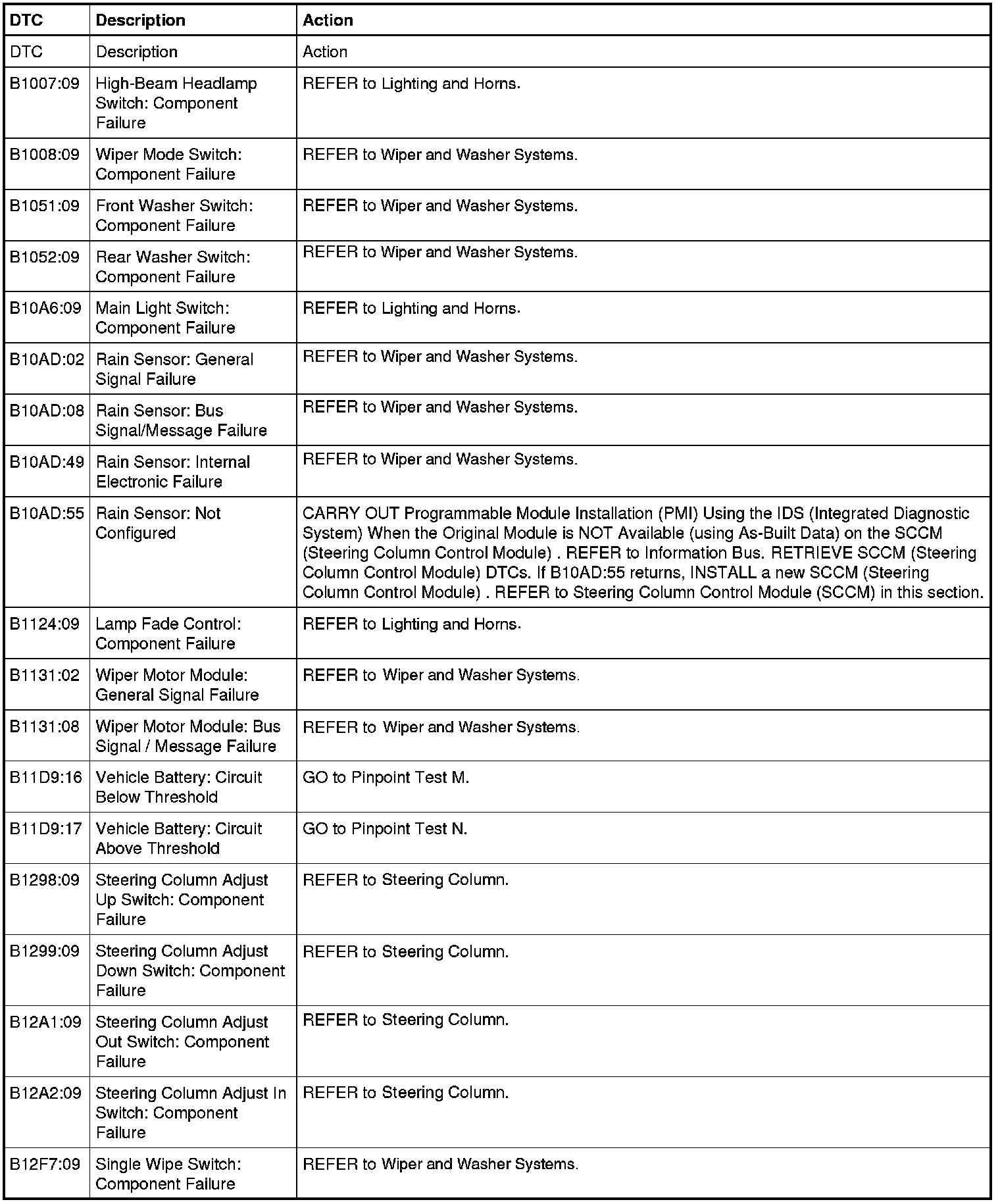

Steering Column Control Module (SCCM) DTC Chart
