With Intelligent Access (IA)

Handles, Locks, Latches and Entry Systems - With Intelligent Access (IA)

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition modes.

Body Control Module (BCM) DTC Chart

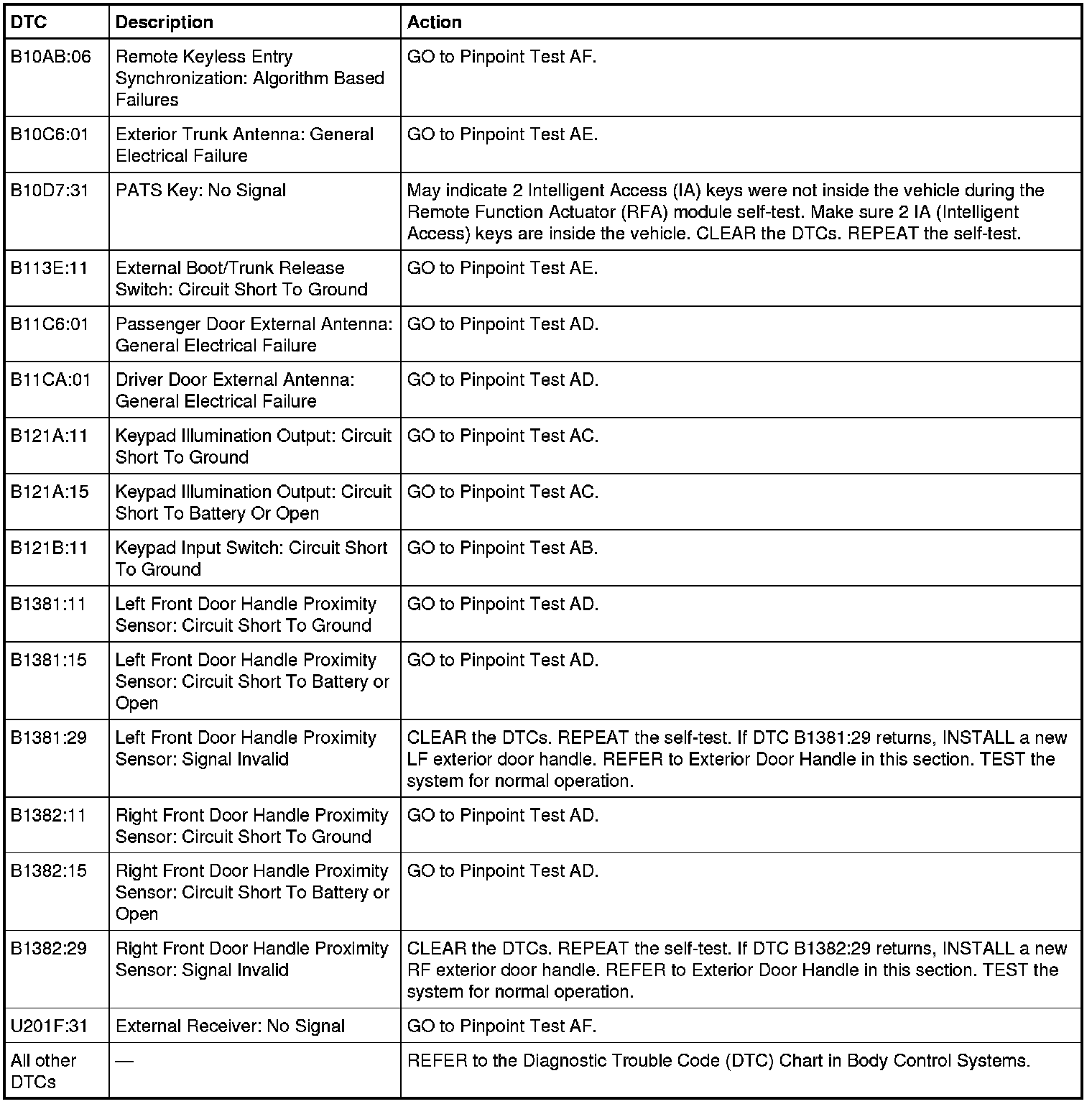

Remote Function Actuator (RFA) Module DTC Chart
