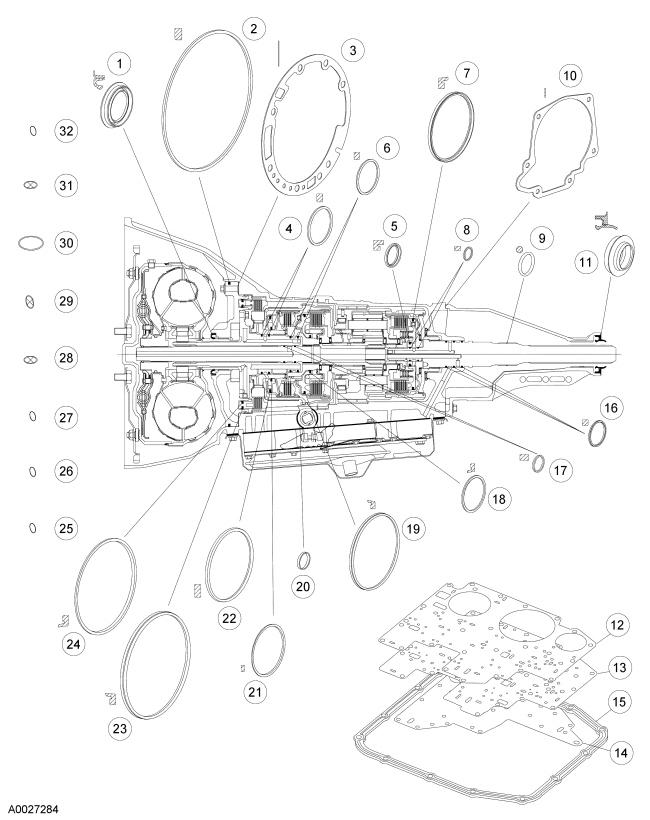

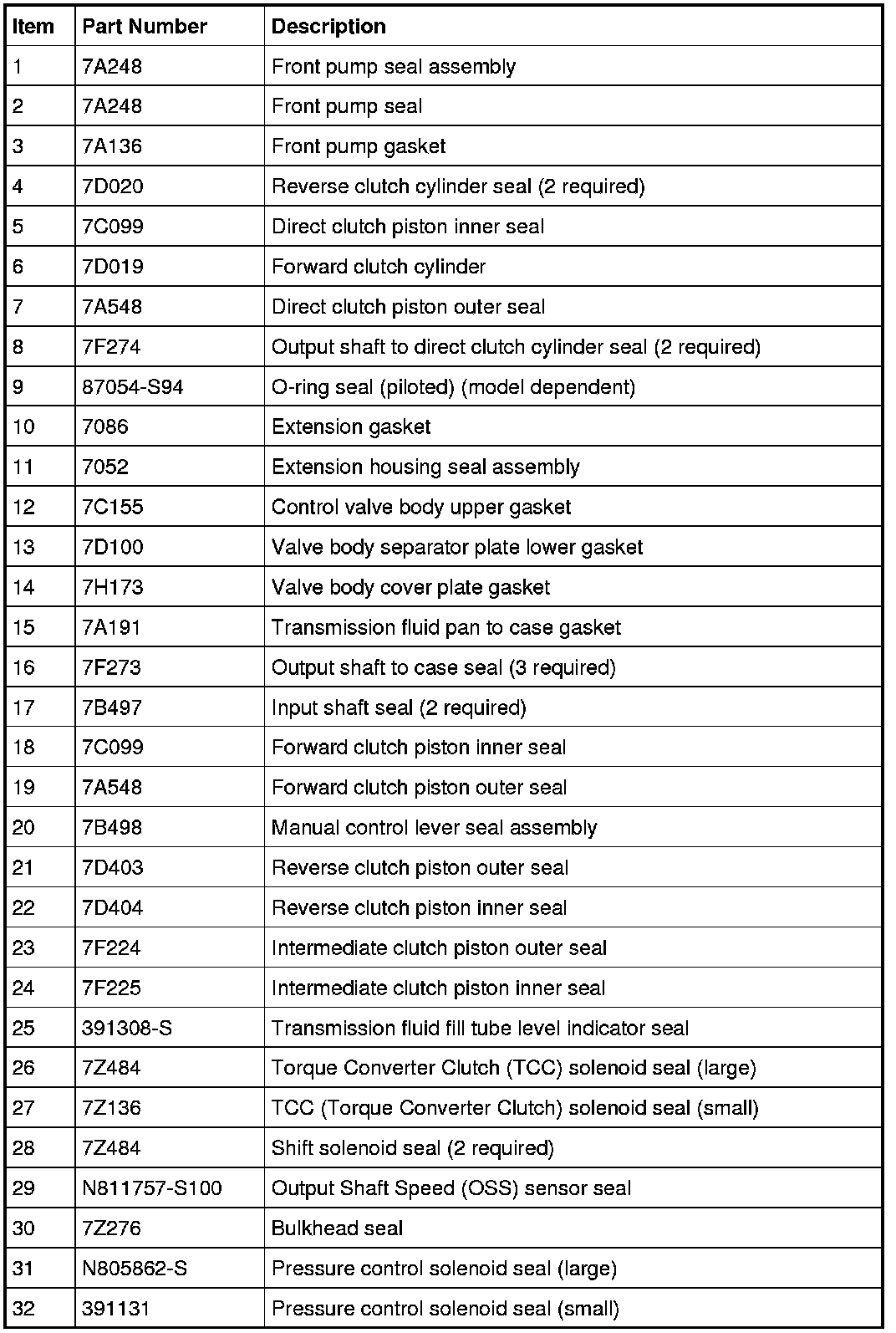

Home >> Ford >> 2012 >> E 150 V8-4.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> Automatic Transaxle/Transmission - 4R70E/4R75E >> Seals, Rings and Gasket Locator
