Steering Column Shroud




Steering Column Shroud

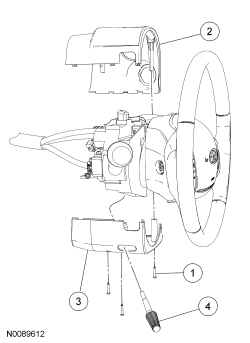

Removal and Installation

1. Remove the ignition lock cylinder.

2. If equipped, remove the tilt release lever/handle.

3. Remove the 3 screws and the upper and lower steering column shrouds.

4. To install, reverse the removal procedure.
