Battery Cables

Battery Cables

Removal and Installation

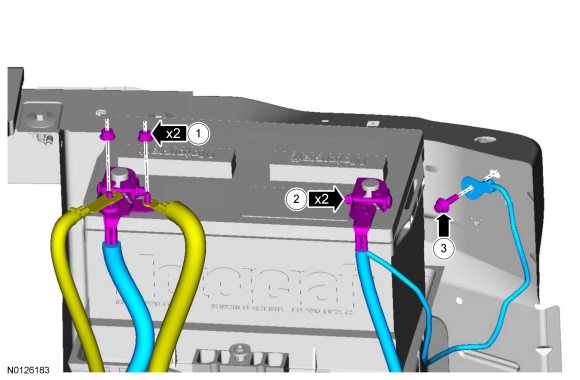

1. .
1. Tighten to 9 Nm (80 lb-in).

2. Tighten to 5 Nm (44 lb-in).

3. Tighten to 12 Nm (106 lb-in).

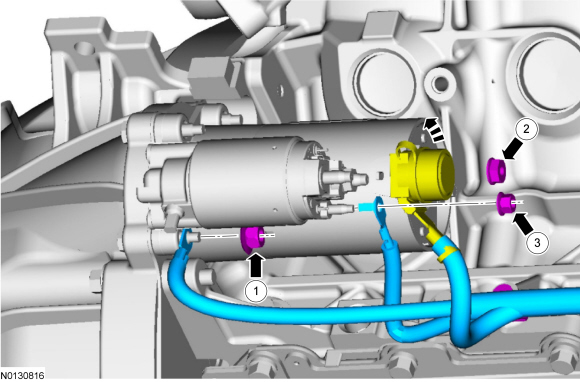

2. .
1. NOTE: The battery cable frame ground is only available for vehicles equipped with a secondary battery.
Tighten to 25 Nm (18 lb-ft).

2. 4.6L vehicles, tighten to 15 Nm (133 lb-in).
5.4L and 6.8L vehicles, tighten to 30 Nm (22 lb-ft).

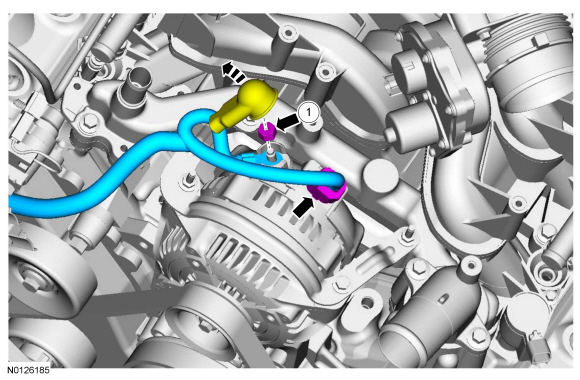

3. .
1. Tighten to 17 Nm (150 lb-in).

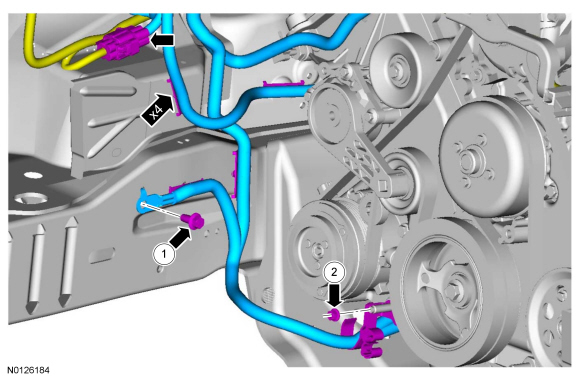

4. .
1. Tighten to 25 Nm (18 lb-ft).

2. Tighten to 12 Nm (106 lb-in).

3. Tighten to 5 Nm (44 lb-in).
