Battery Cables - Secondary

Battery Cables - Secondary

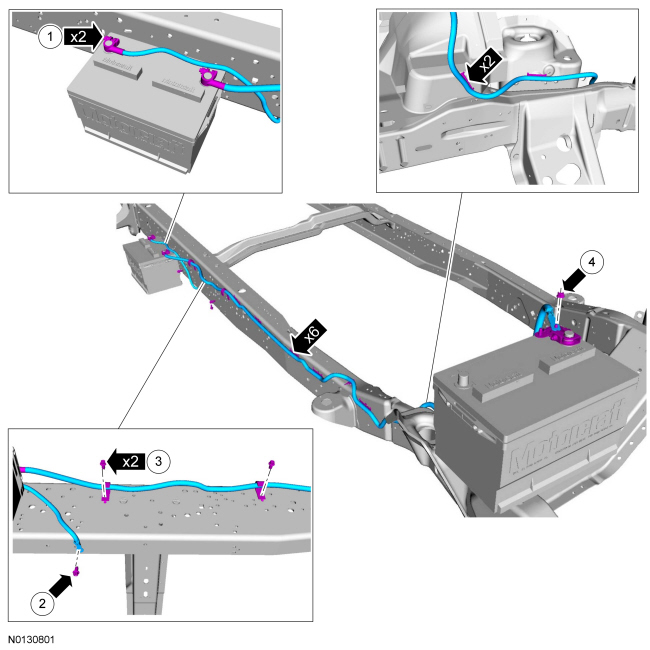

Removal and Installation

1. .
1. Tighten to 9 Nm (80 lb-in).

2. Tighten to 25 Nm (18 lb-ft).

3. NOTE: Cutaway vehicles require 2 wire harness fasteners and bolts, all other vehicles use a single fastener and bolt.
Tighten to 27 Nm (20 lb-ft).

4. Tighten to 12 Nm (106 lb-in).
