Wheel Speed Sensor - Rear

Wheel Speed Sensor - Rear

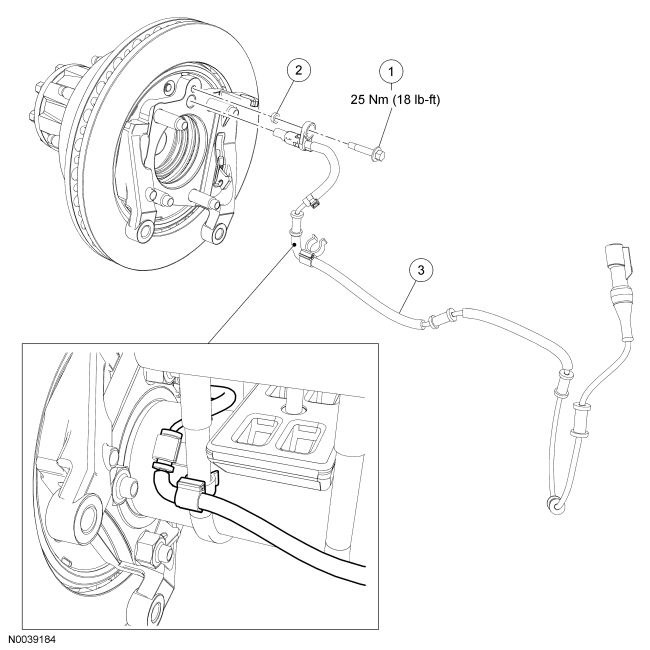

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Disconnect the wheel speed sensor electrical connector.

3. Disconnect the wheel speed sensor harness clips.

4. Remove the rear wheel speed sensor bolt, spacer and the sensor.
- To install, tighten to 25 Nm (18 lb-ft).


5. To install, reverse the removal procedure.
