Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

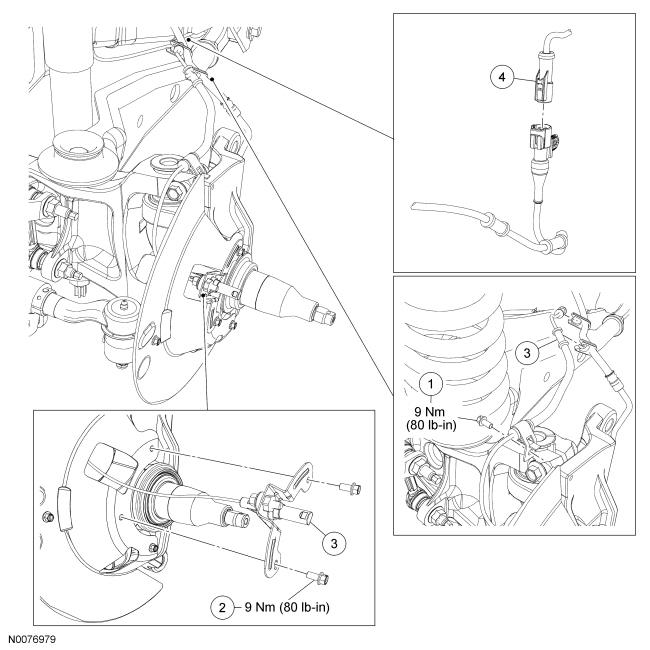

Removal and Installation

1. Remove the brake disc.

2. Disconnect the front wheel speed sensor harness connector.

3. Disconnect the front wheel speed sensor wire from the front brake hose.

4. Remove the wheel speed sensor harness bolt.
- To install, tighten to 9 Nm (80 lb-in).


5. Remove the 2 bolts and the front wheel speed sensor assembly.
- To install, tighten to 9 Nm (80 lb-in).


6. To install, reverse the removal procedure.
