Home >> Ford >> 2012 >> E 150 V8-4.6L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Door Position Switch >> Diagrams >> C807 Sliding Door Contact Switch, Right

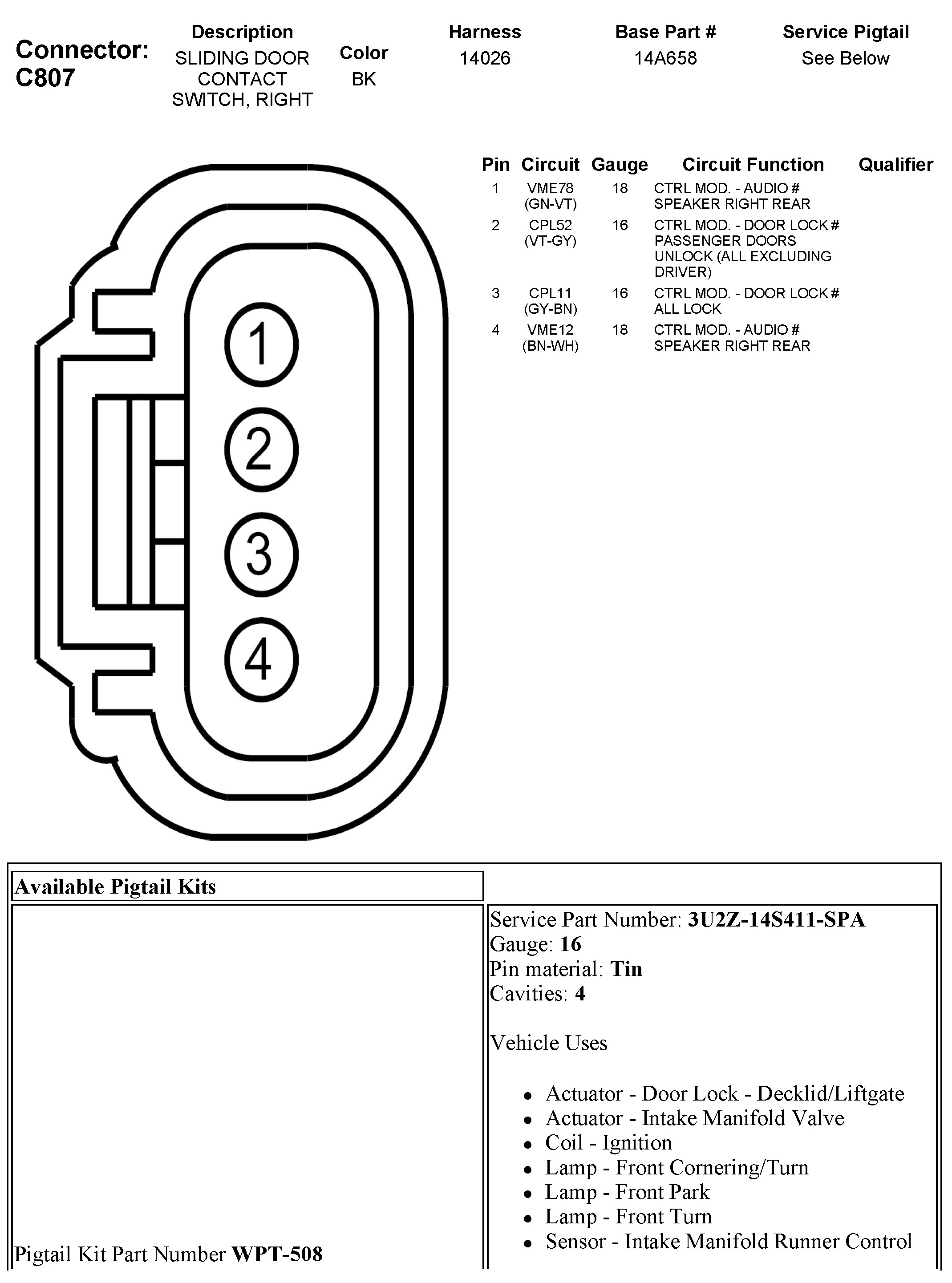

C807 Sliding Door Contact Switch, Right
