Headlamp Switch: Service and Repair

Headlamp Switch









Removal and Installation

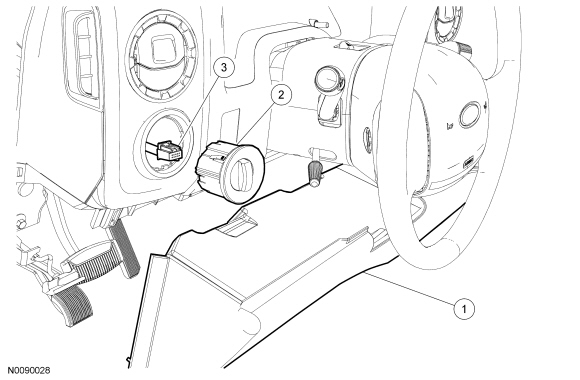

1. Separate the steering column reinforcement cover by pulling it away from the instrument panel and position it aside.

2. NOTE: The 3 retaining tabs on the headlamp switch are located at approximately 3, 6 and 11 o'clock positions when viewed from the front.

Reaching from underneath, release the 3 tabs and push the headlamp switch through the opening.

- Disconnect the electrical connector.


3. To install, reverse the removal procedure.
