Dome Lamp: Service and Repair

Interior Lamp

Vehicles With Headliner










Vehicles Without Headliner









Removal and Installation

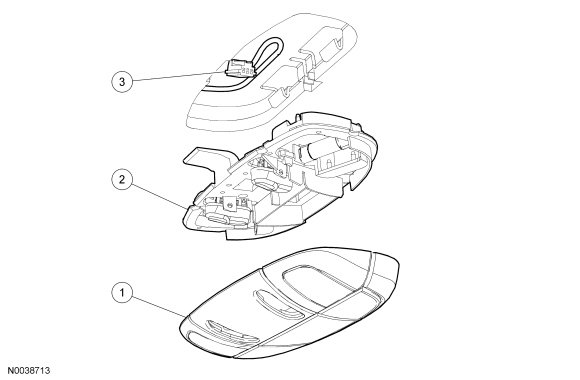

Vehicles with headliner

1. Remove the interior lamp lens from the lamp assembly.





2. Release the 2 retaining clips (through the access holes) and remove the interior lamp from the headliner retainer.
- Disconnect the electrical connector.

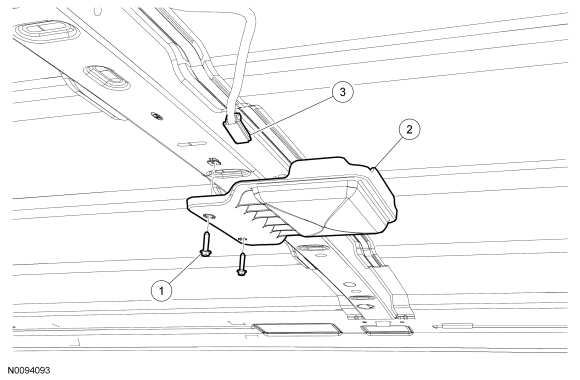

Vehicles without headliner

3. Remove the 2 screws and the interior lamp.
- Disconnect the electrical connector.


Any interior lamp

4. To install, reverse the removal procedure.
