Home >> Ford >> 2012 >> E 150 V8-4.6L >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Diagrams >> Connector Views >> C929 Interior/Map Lamps Assembly, Front

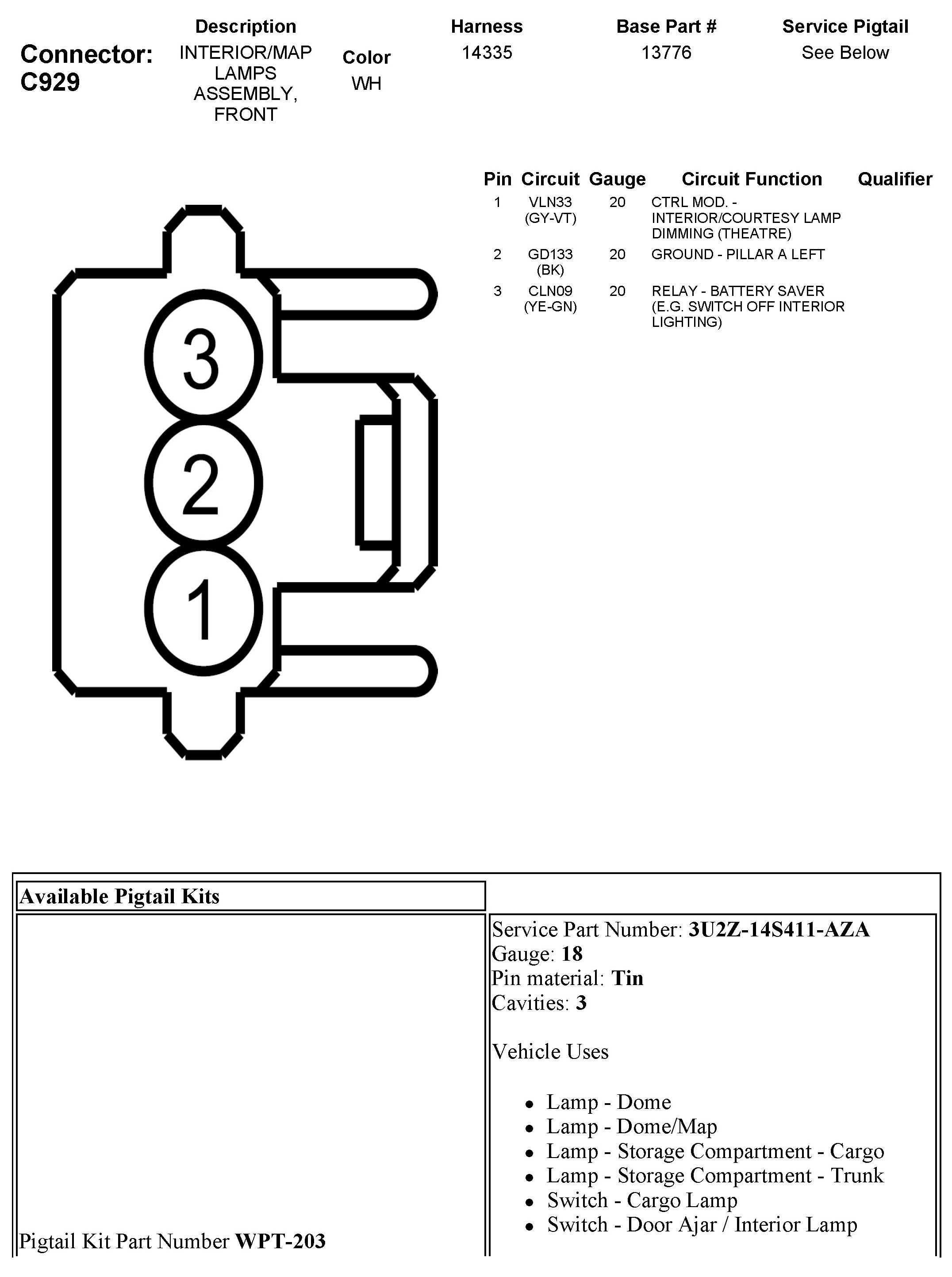

C929 Interior/Map Lamps Assembly, Front
