Crankshaft Rear Seal

Crankshaft Rear Seal









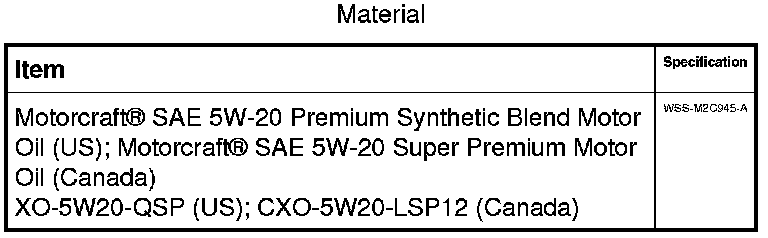

Removal

1. Remove the flexplate. For additional information, refer to Flexplate Flexplate.

2. Remove the engine rear cover plate.

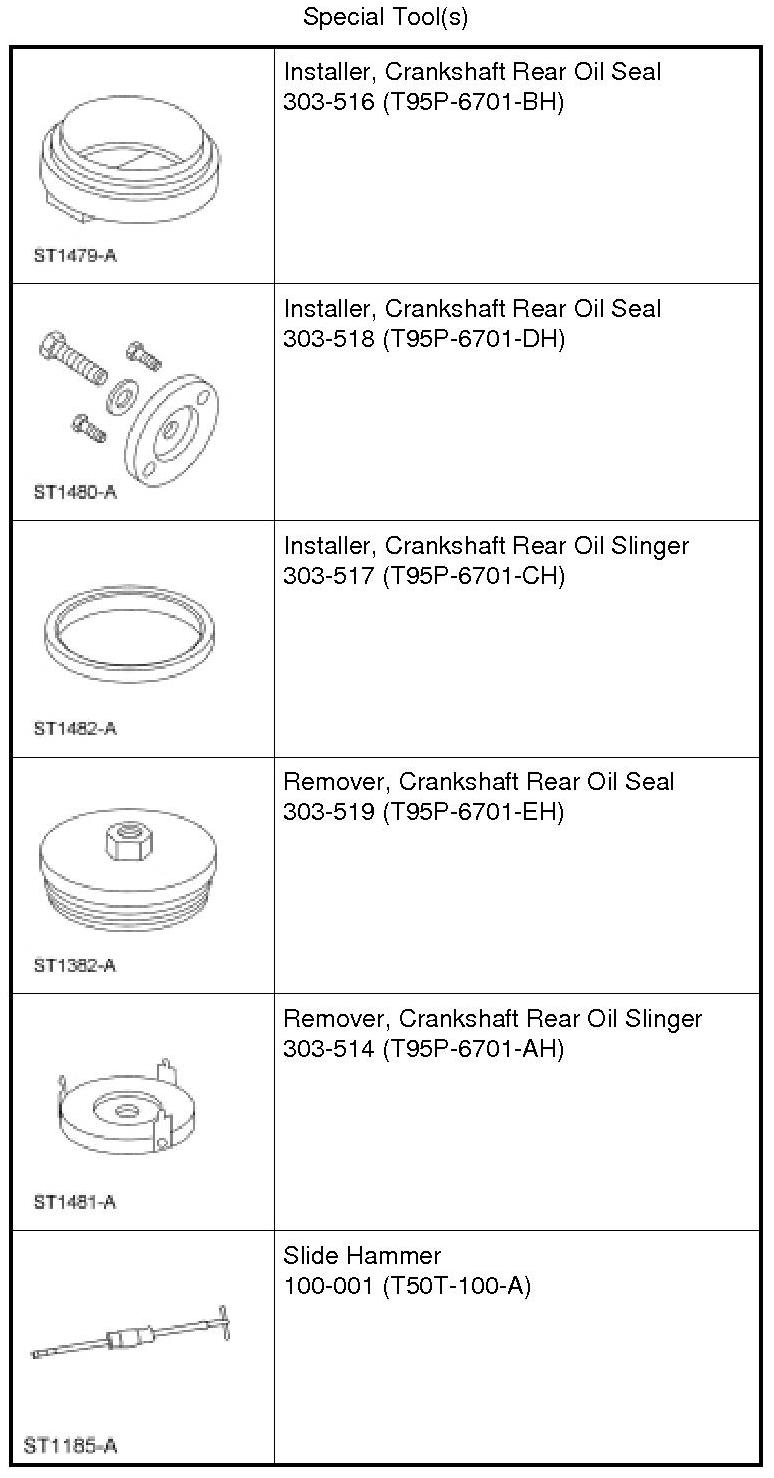

3. Using the Slide Hammer and Crankshaft Rear Oil Slinger Remover, remove the crankshaft oil slinger.
- Discard the crankshaft oil slinger.






4. Using the Slide Hammer and Crankshaft Rear Oil Seal Remover, remove the crankshaft rear seal.
- Discard the crankshaft rear seal.






Installation

1. NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

Using the Crankshaft Rear Oil Seal Installers, install a new crankshaft rear seal.






2. Using the Crankshaft Rear Oil Seal Installers and Crankshaft Rear Oil Slinger Installer, install a new crankshaft rear oil slinger.





3. Install the engine rear cover plate.

4. Install the flexplate. For additional information, refer to Flexplate Flexplate.
