Home >> Ford >> 2012 >> E 150 V8-4.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 89 (Interior Lamps)

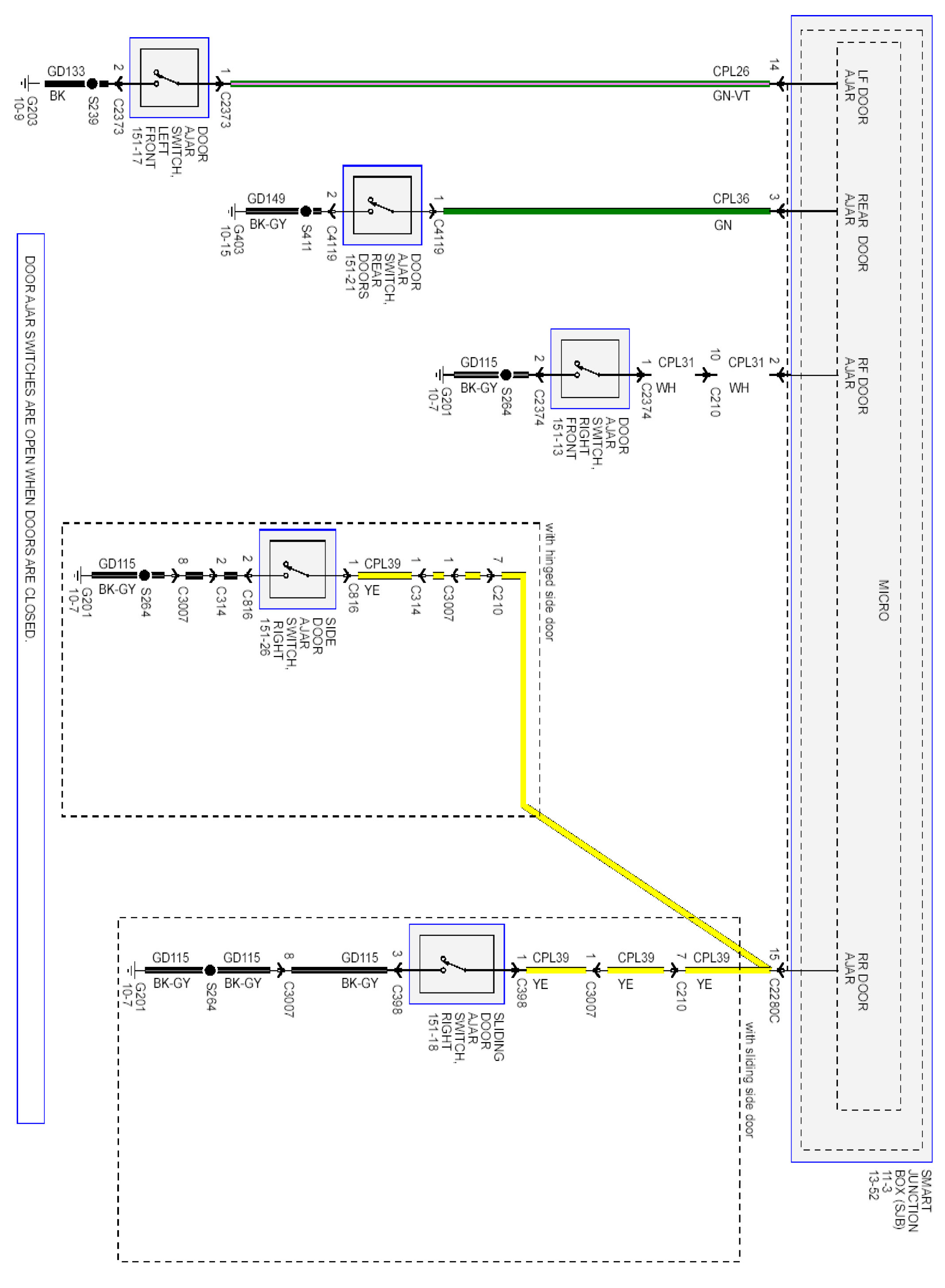

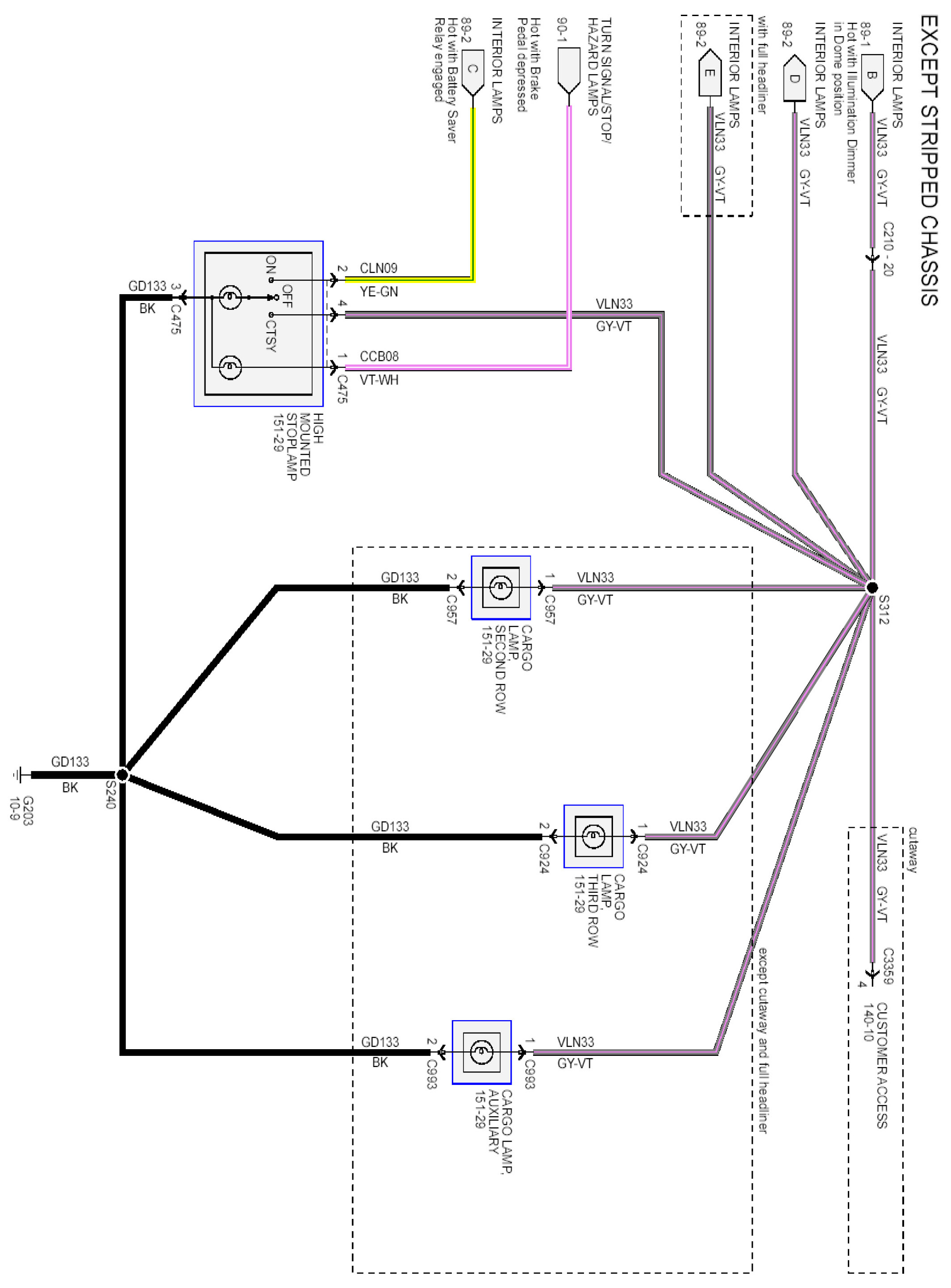

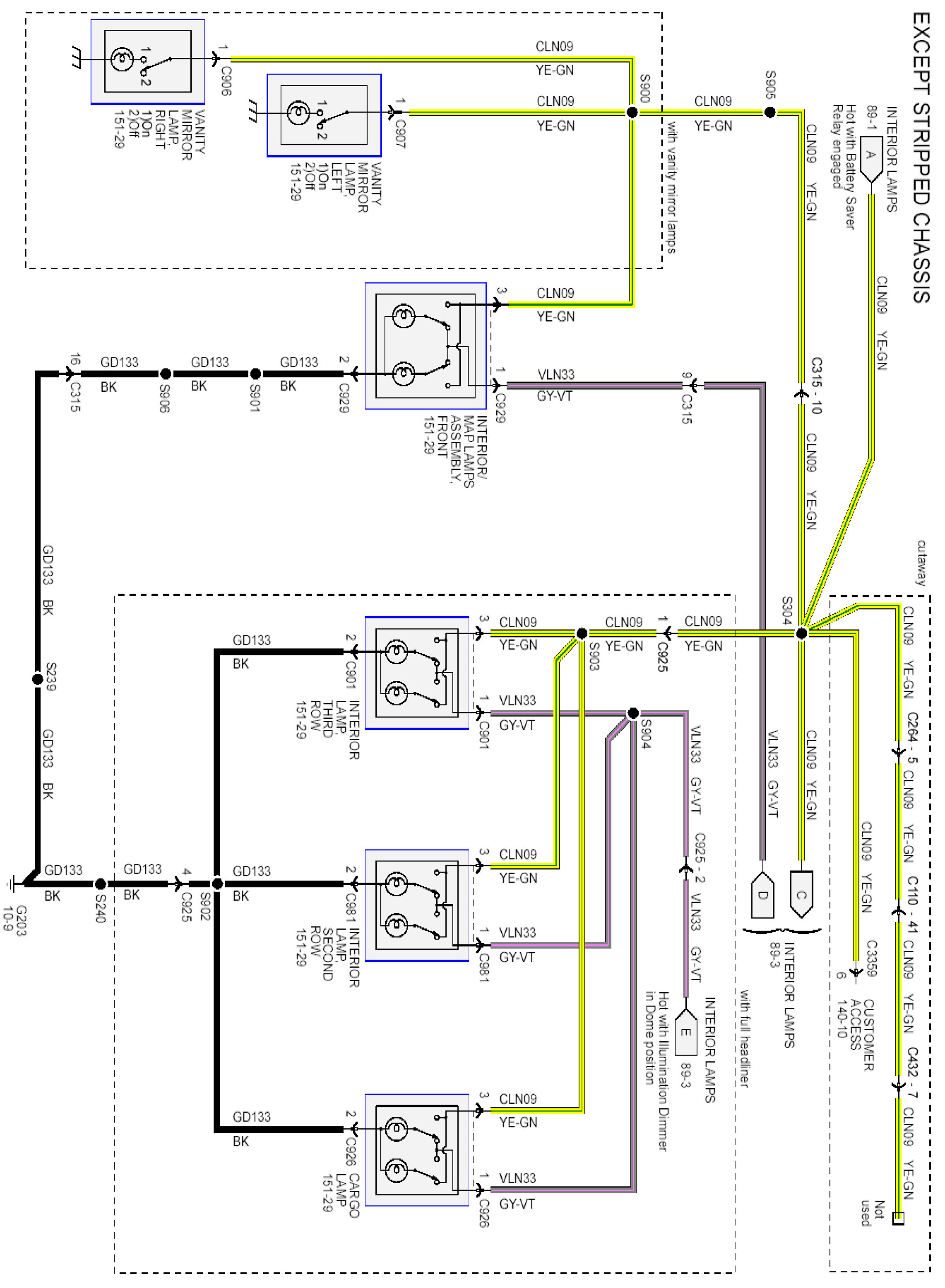

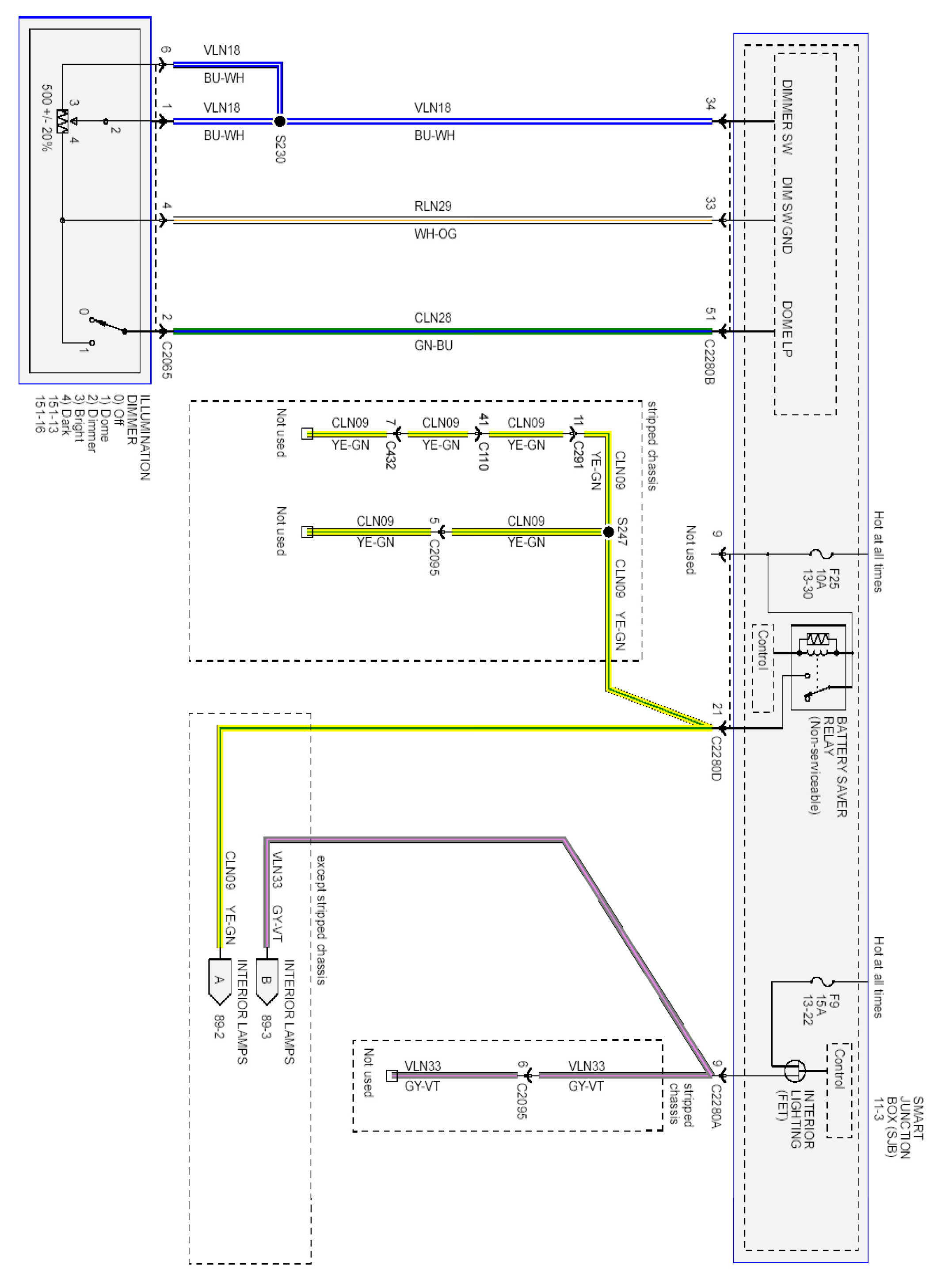

Diagram Set 89 (Interior Lamps)
