Automatic Transaxle/Transmission - Torqshift(R)

Diagnostic Trouble Code (DTC) Charts

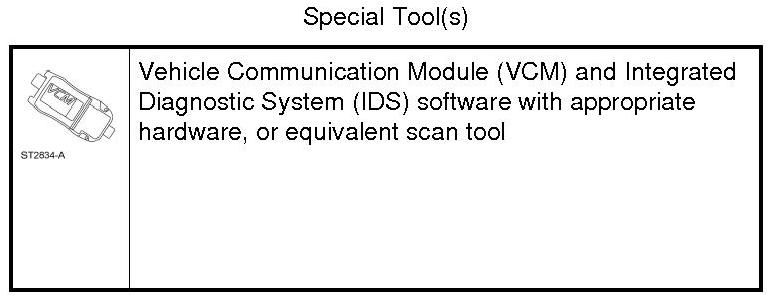

Using a scan tool to retrieve DTCs, begin with and repair all non-transmission related DTCs. Start with the U-DTCs (communication link codes) and repair any transmission related DTCs.

Limp-home mode is a default condition to protect the engine and transmission when certain faults occur. Limp-home mode depends on the actual gear the vehicle was in when the fault has occurred.

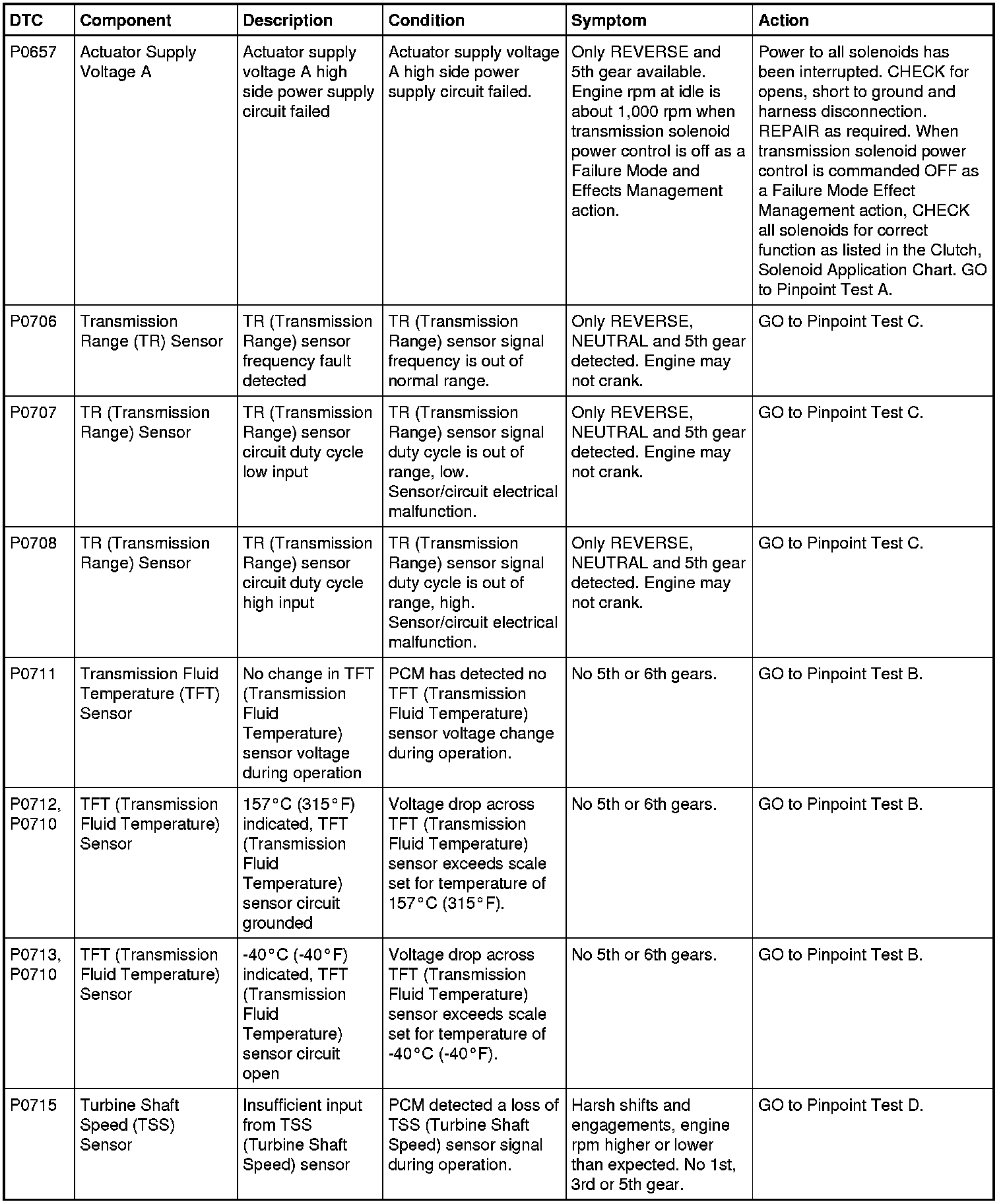

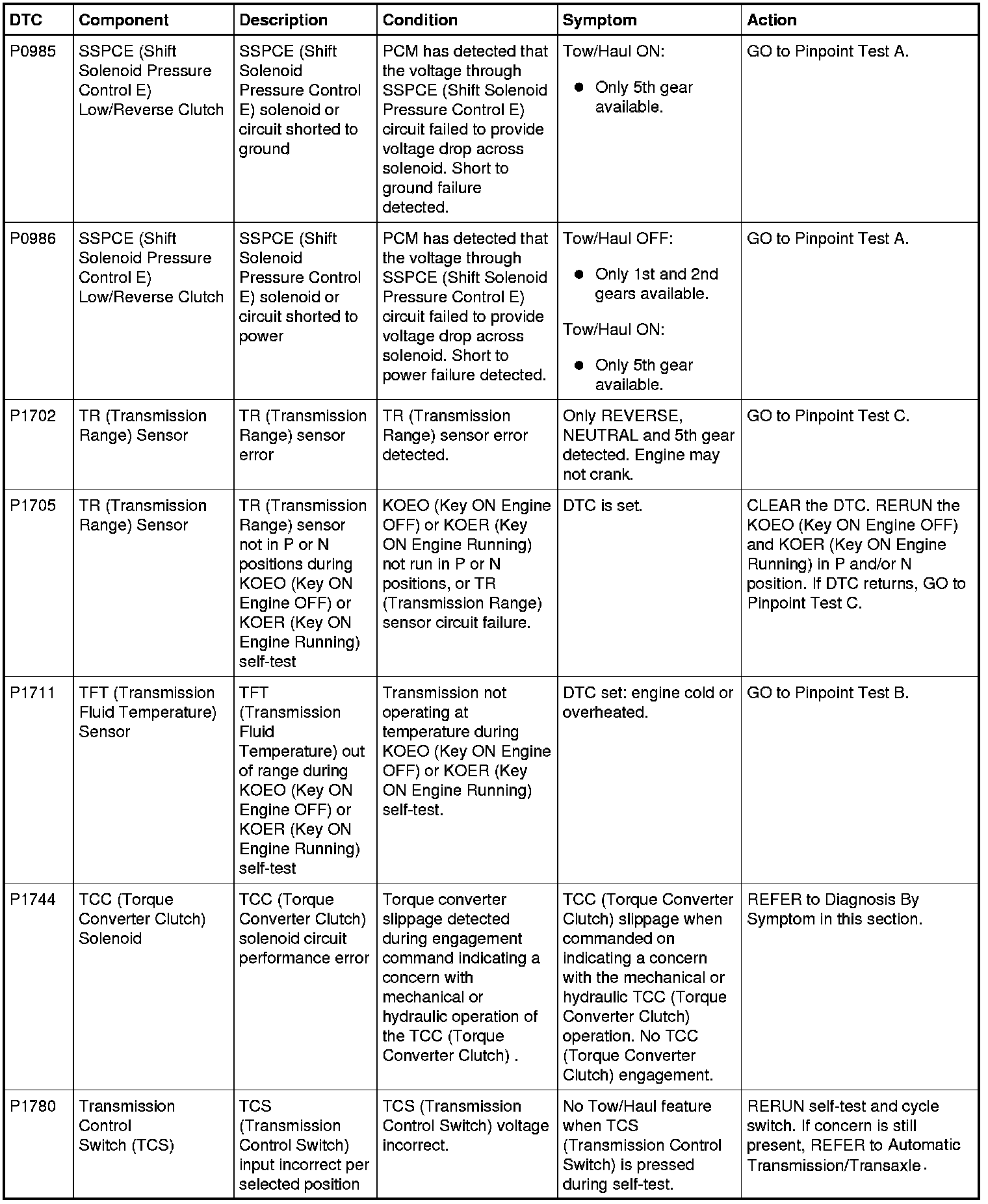

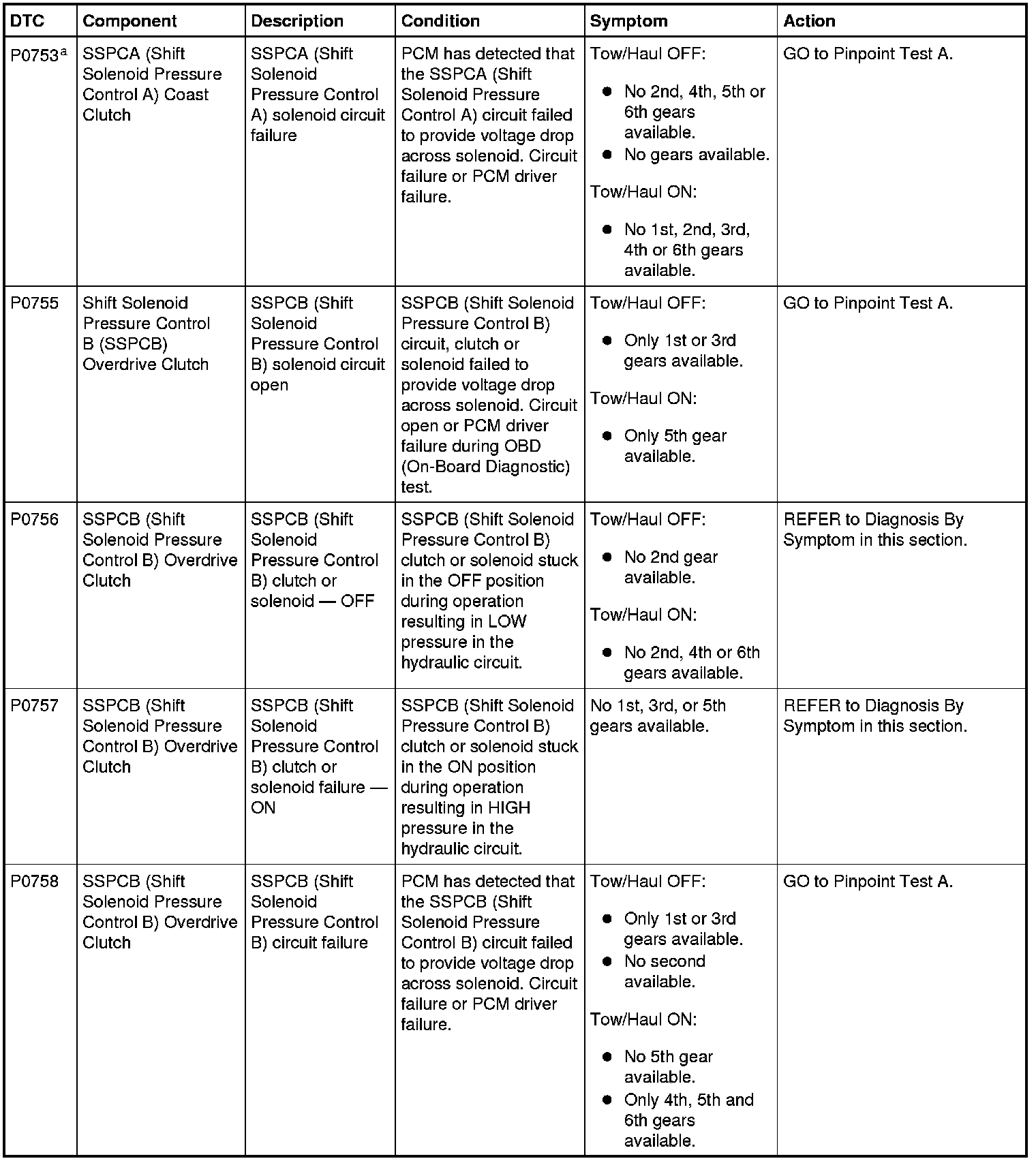

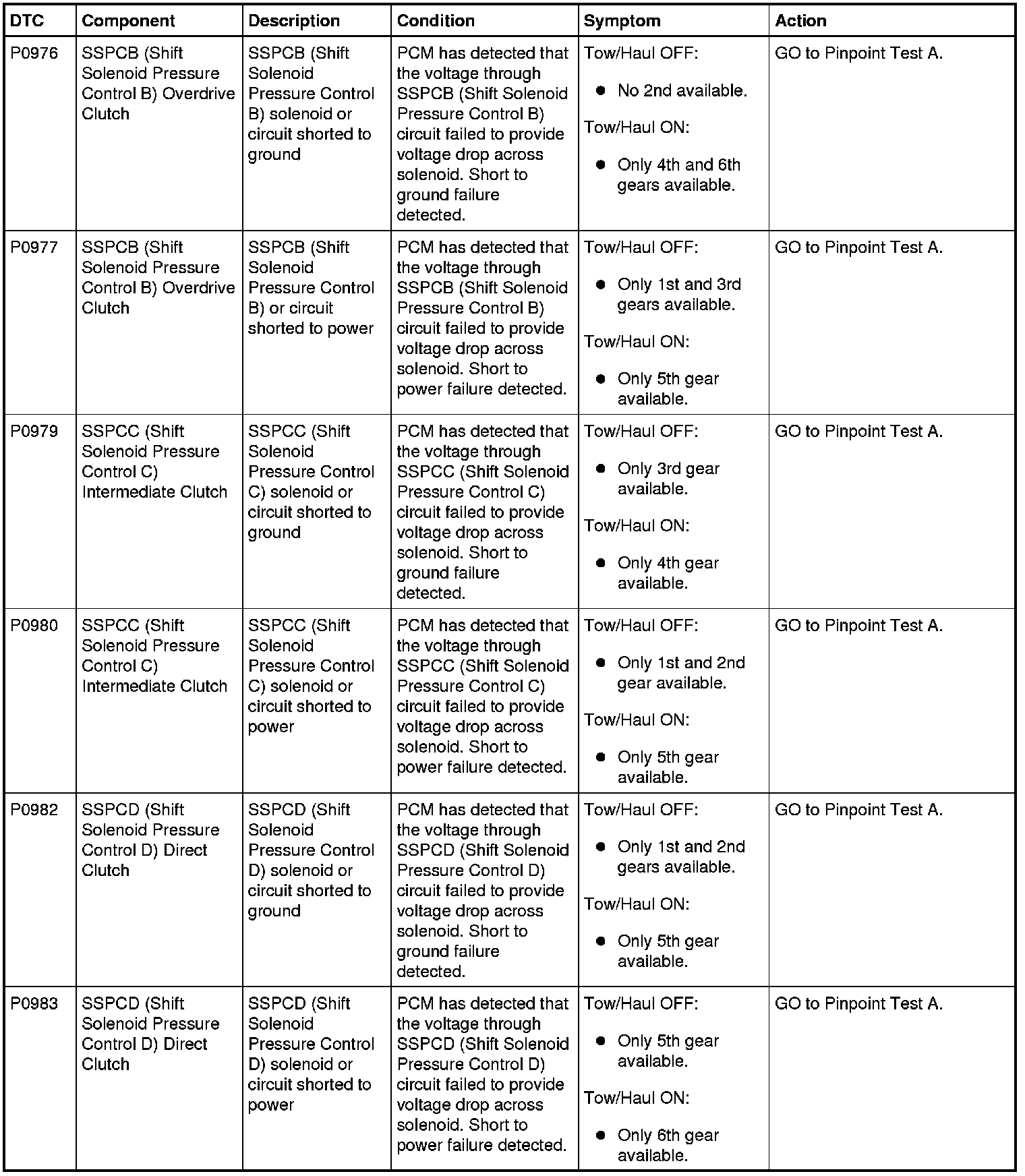

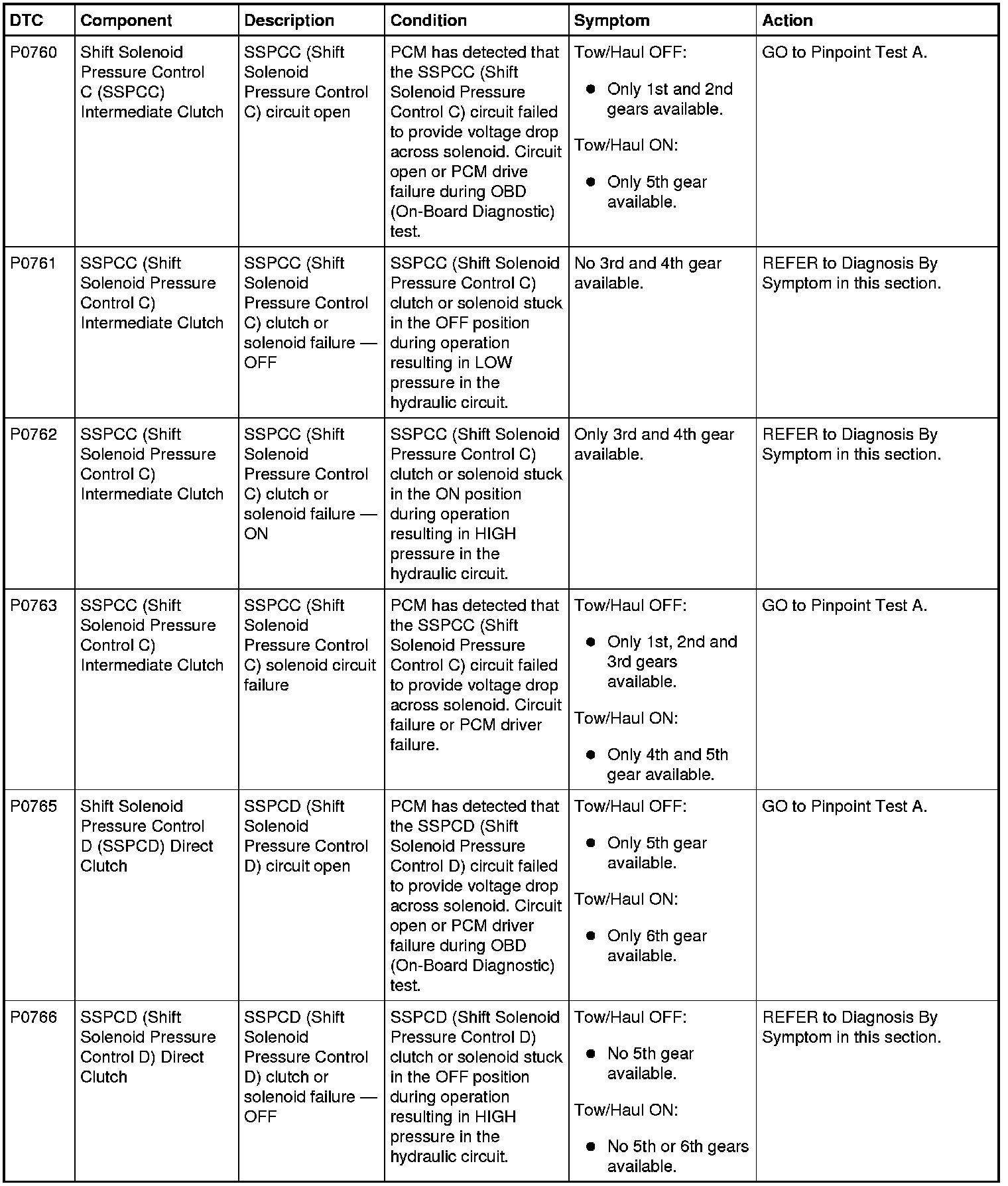

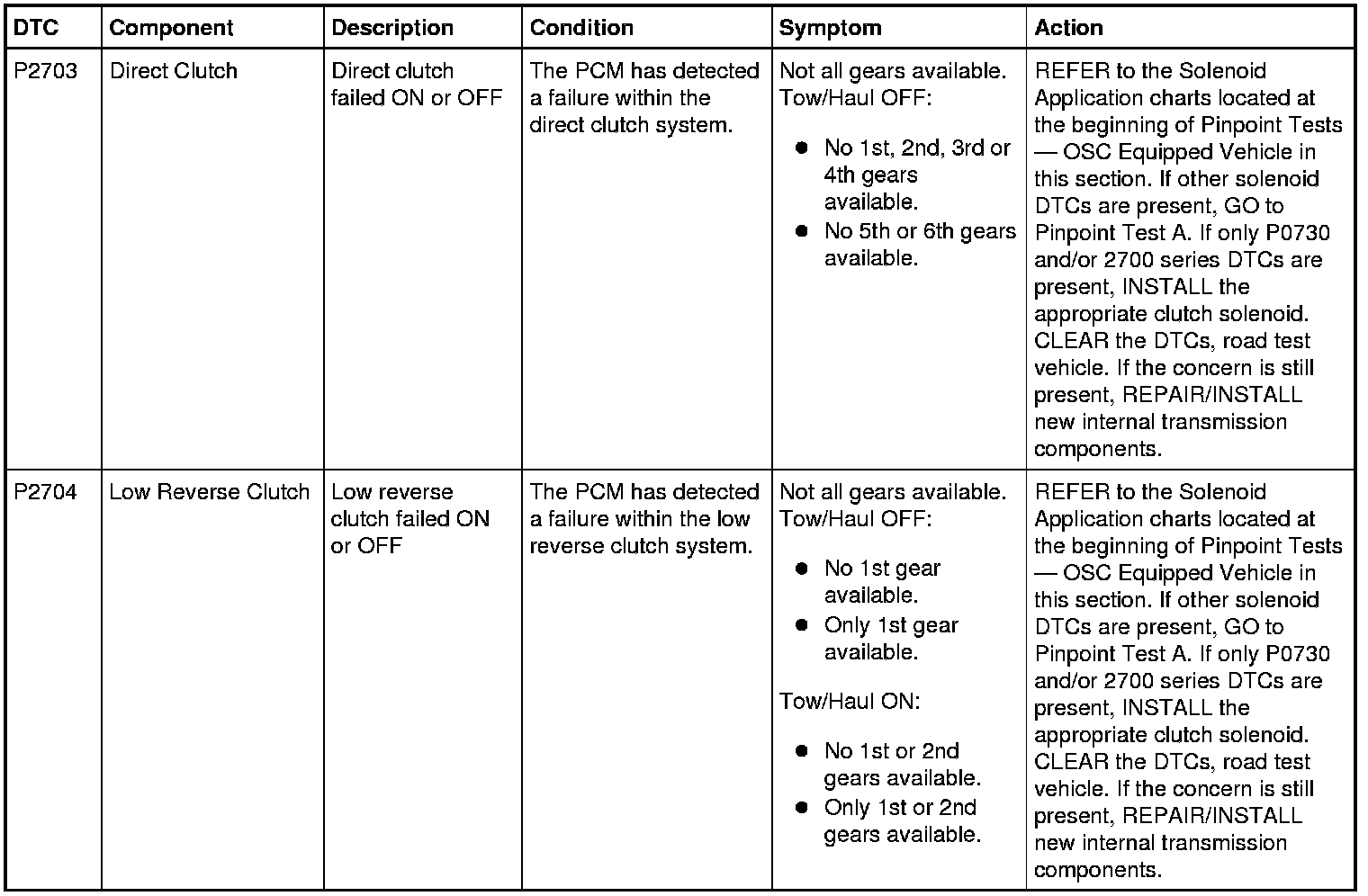

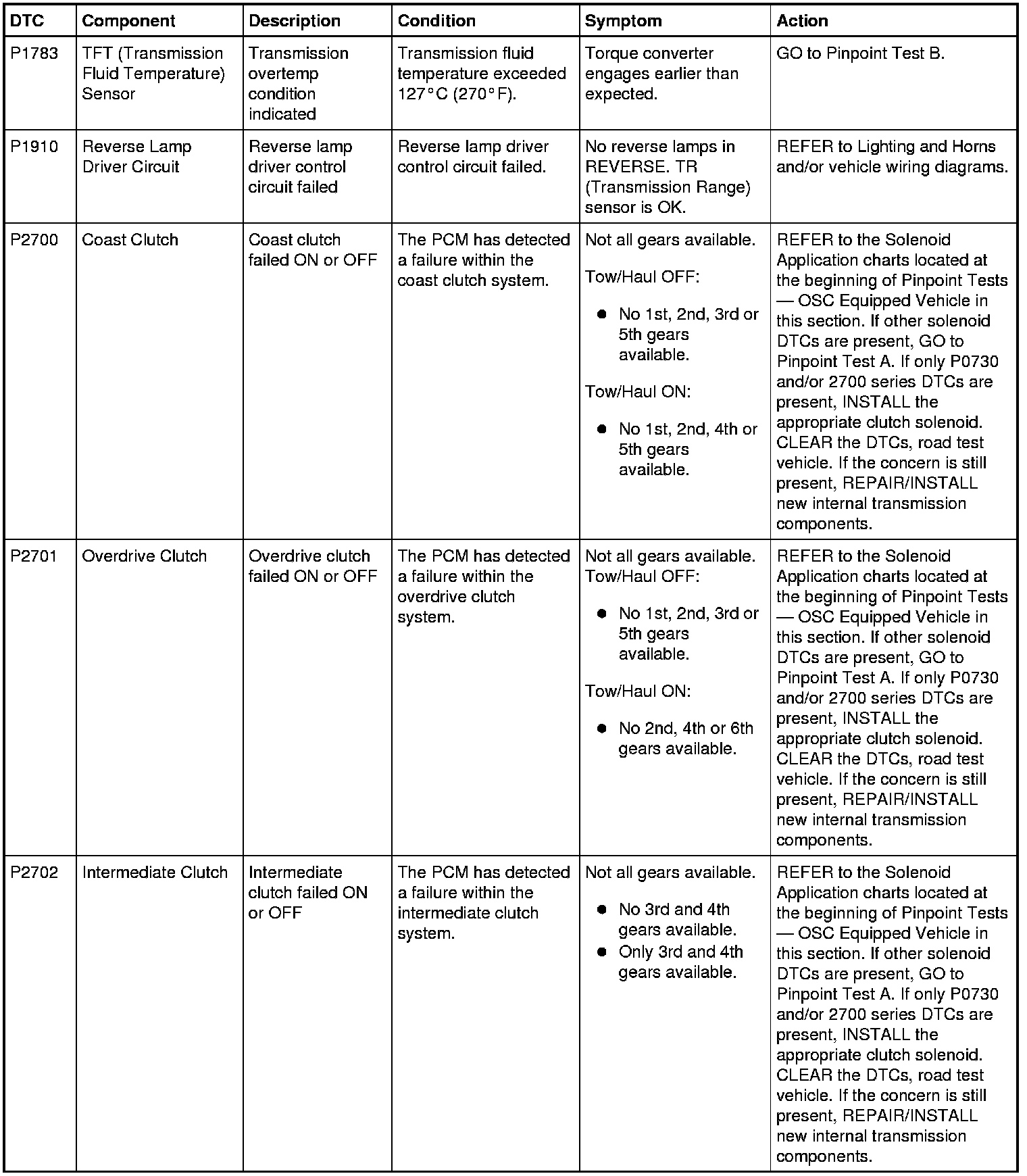

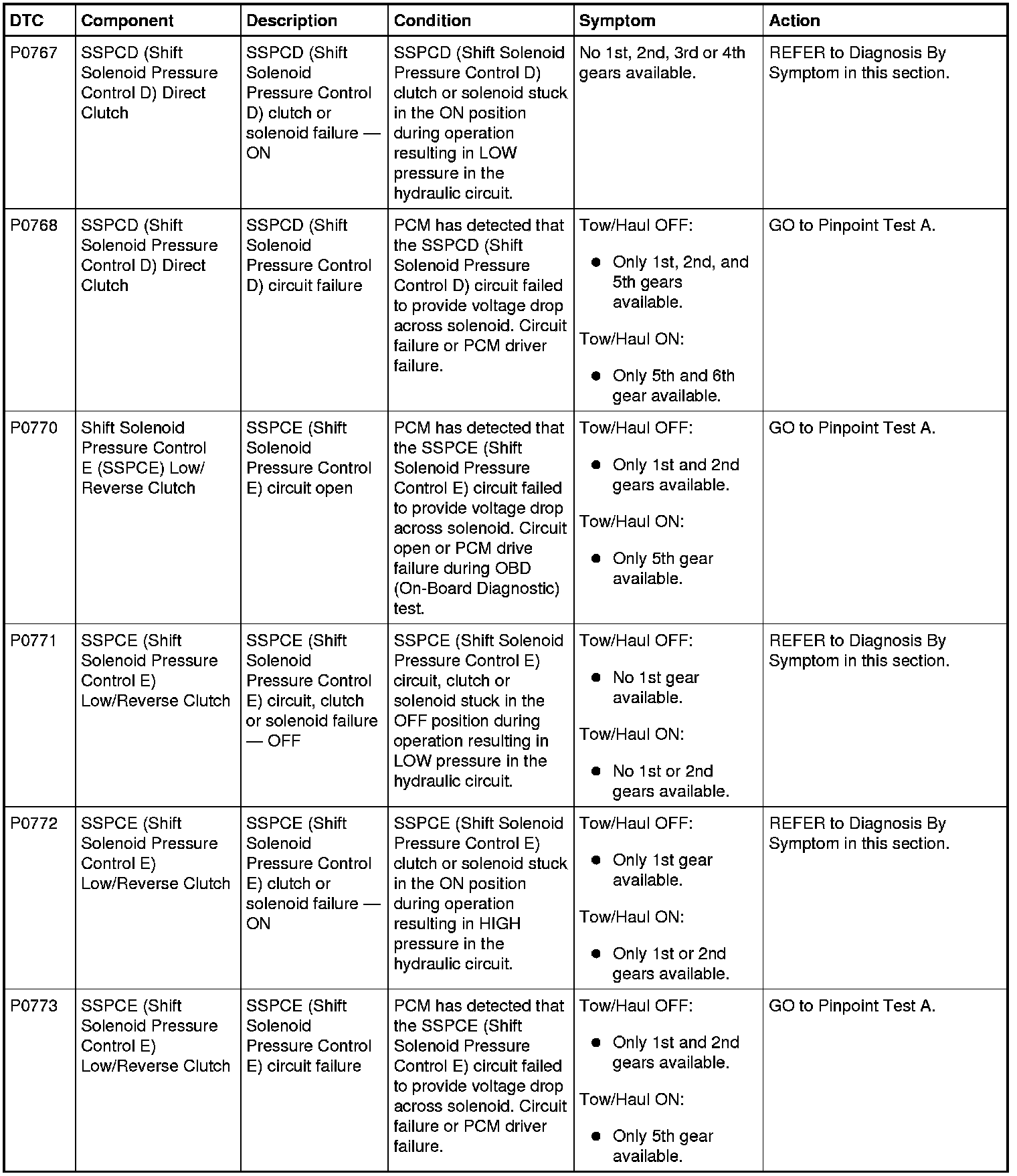

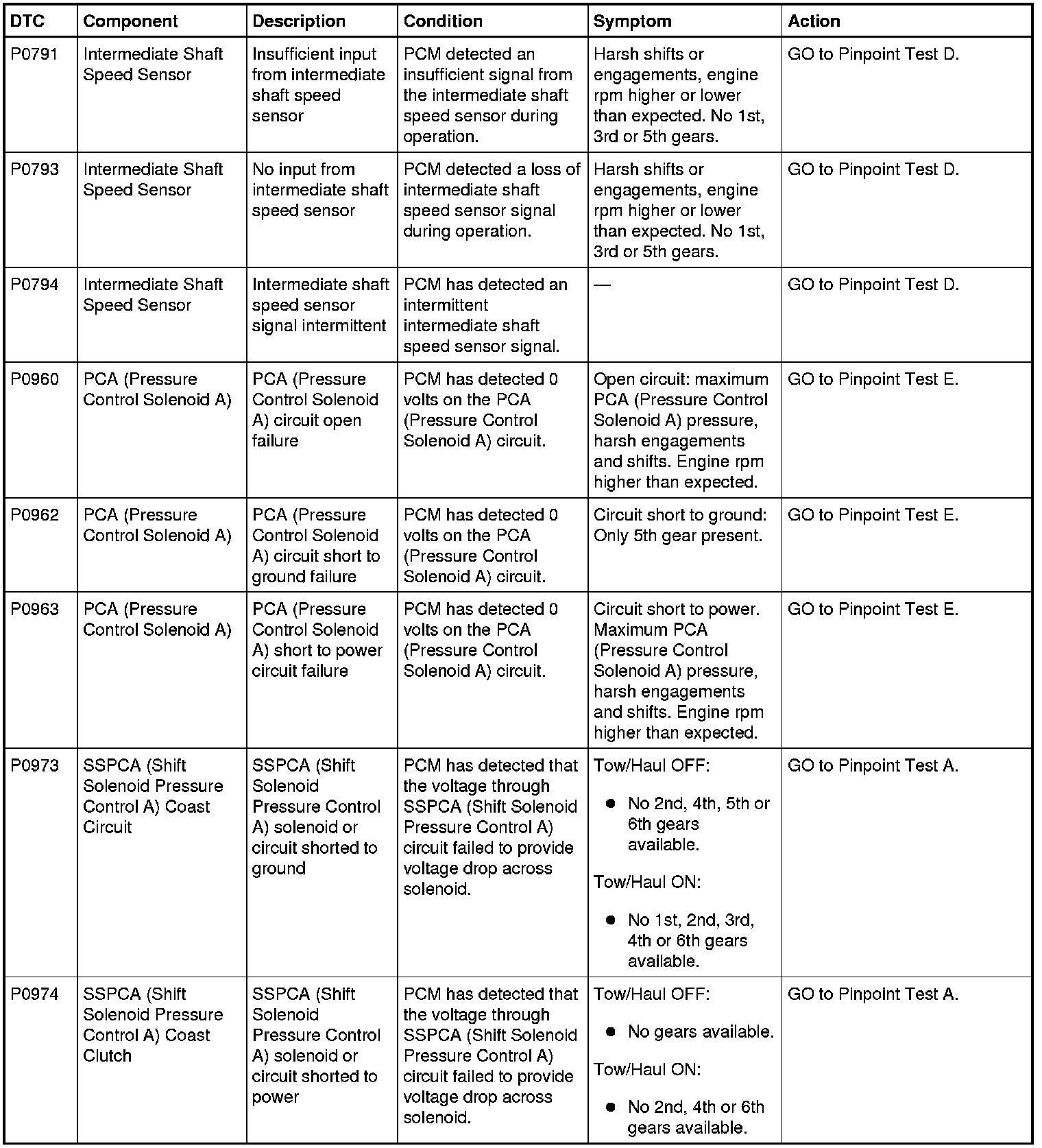

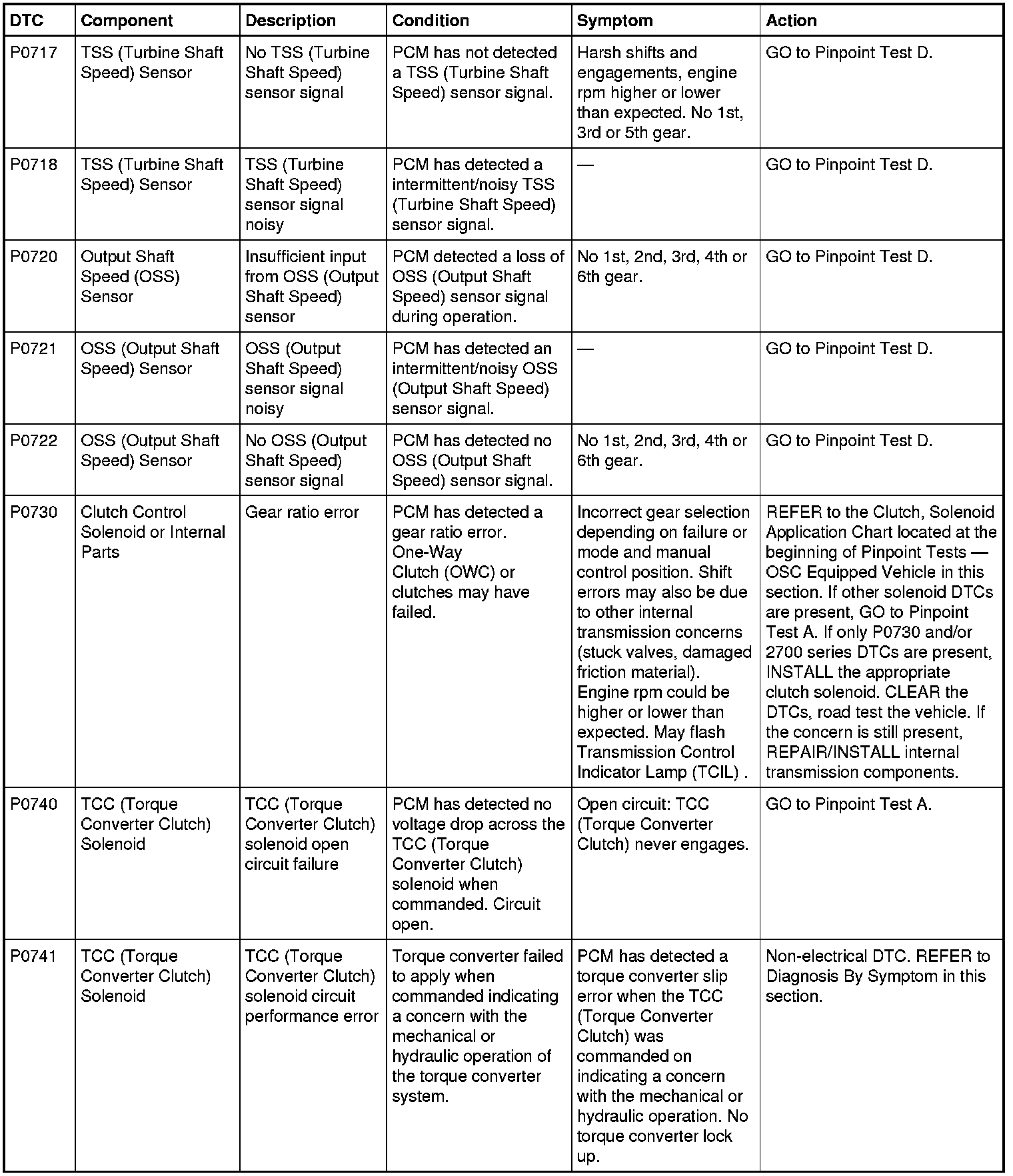

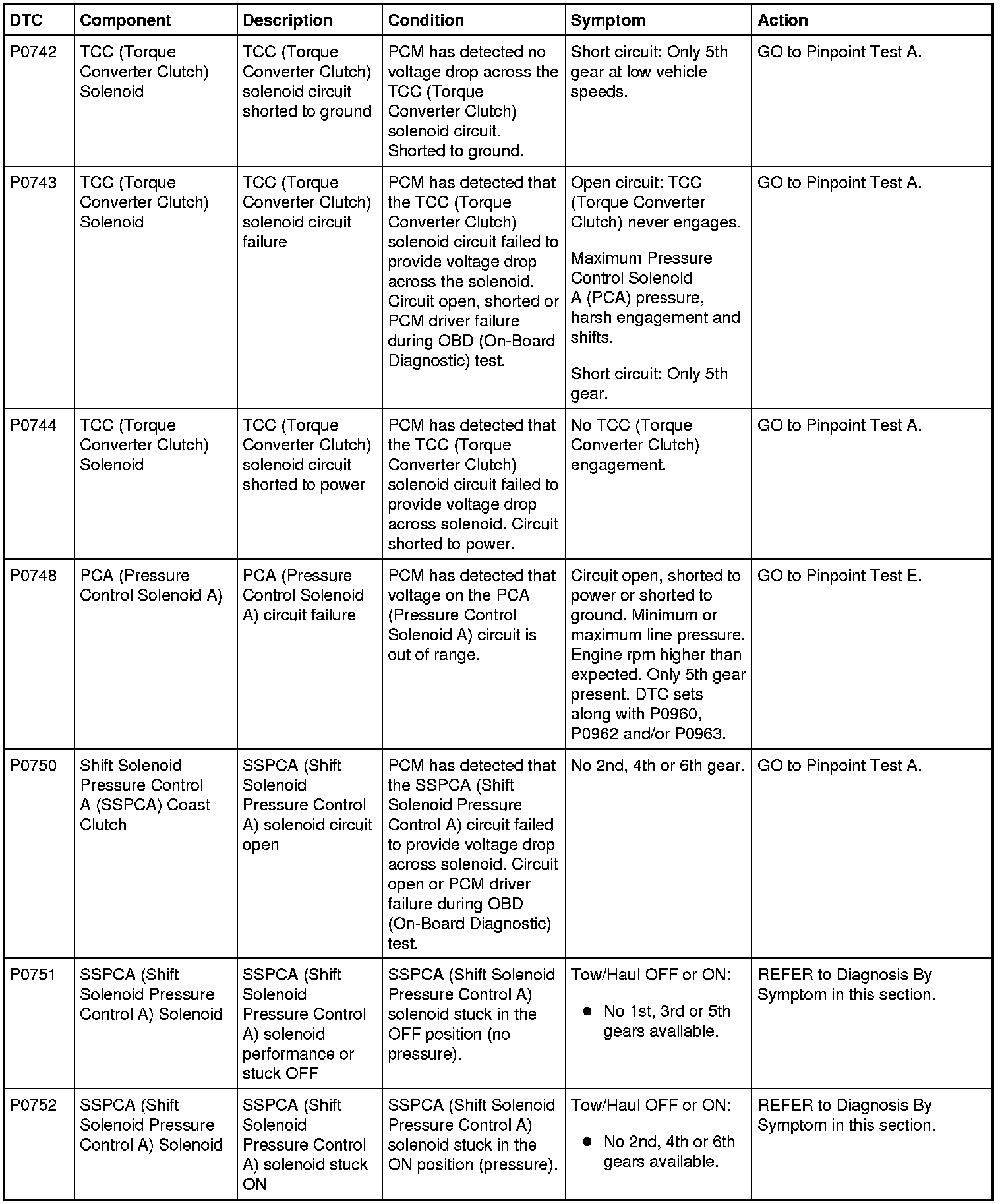

DTC Chart
