Automatic Transaxle/Transmission - 4R70E/4R75E




Diagnostic Trouble Code (DTC) Charts

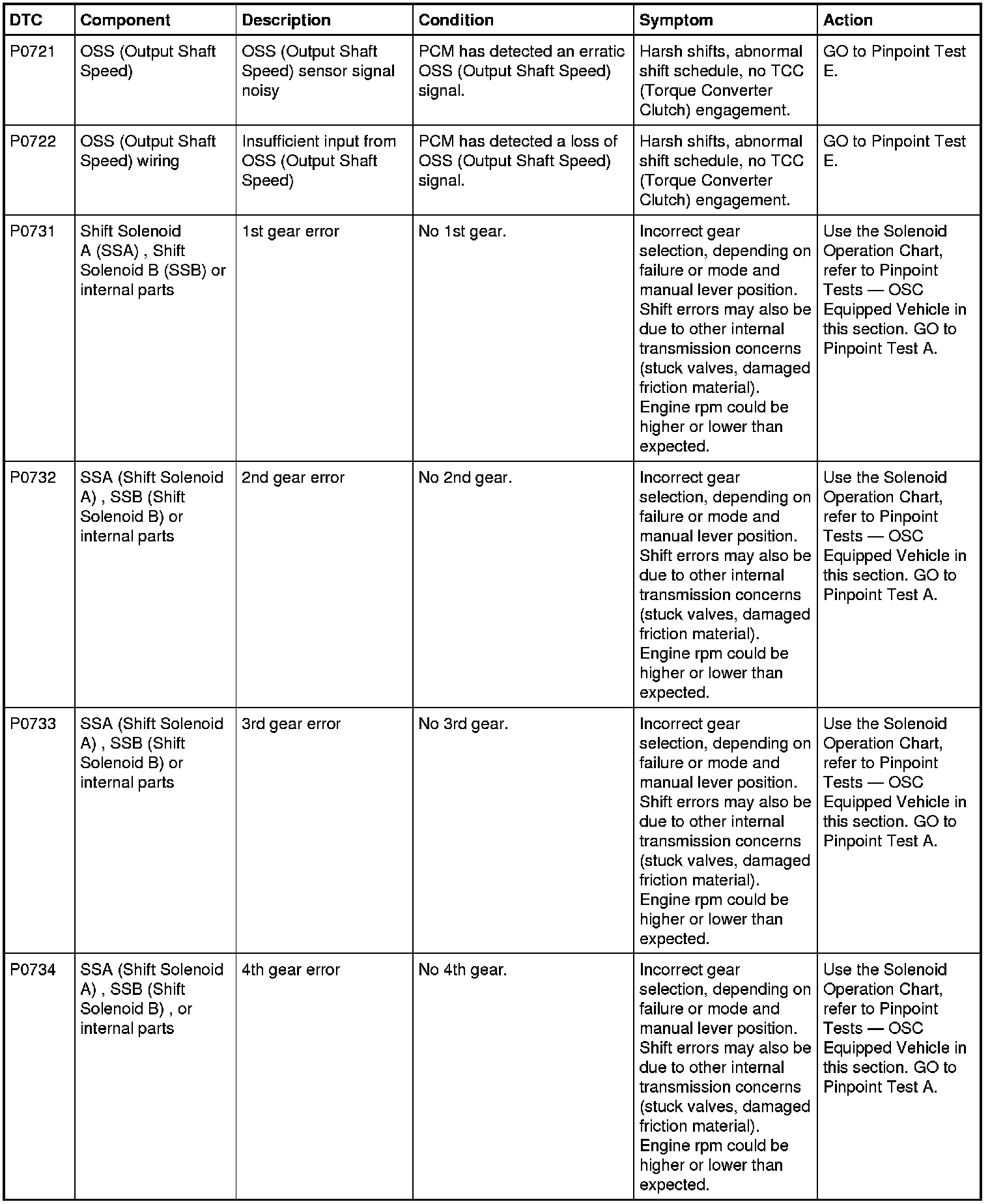

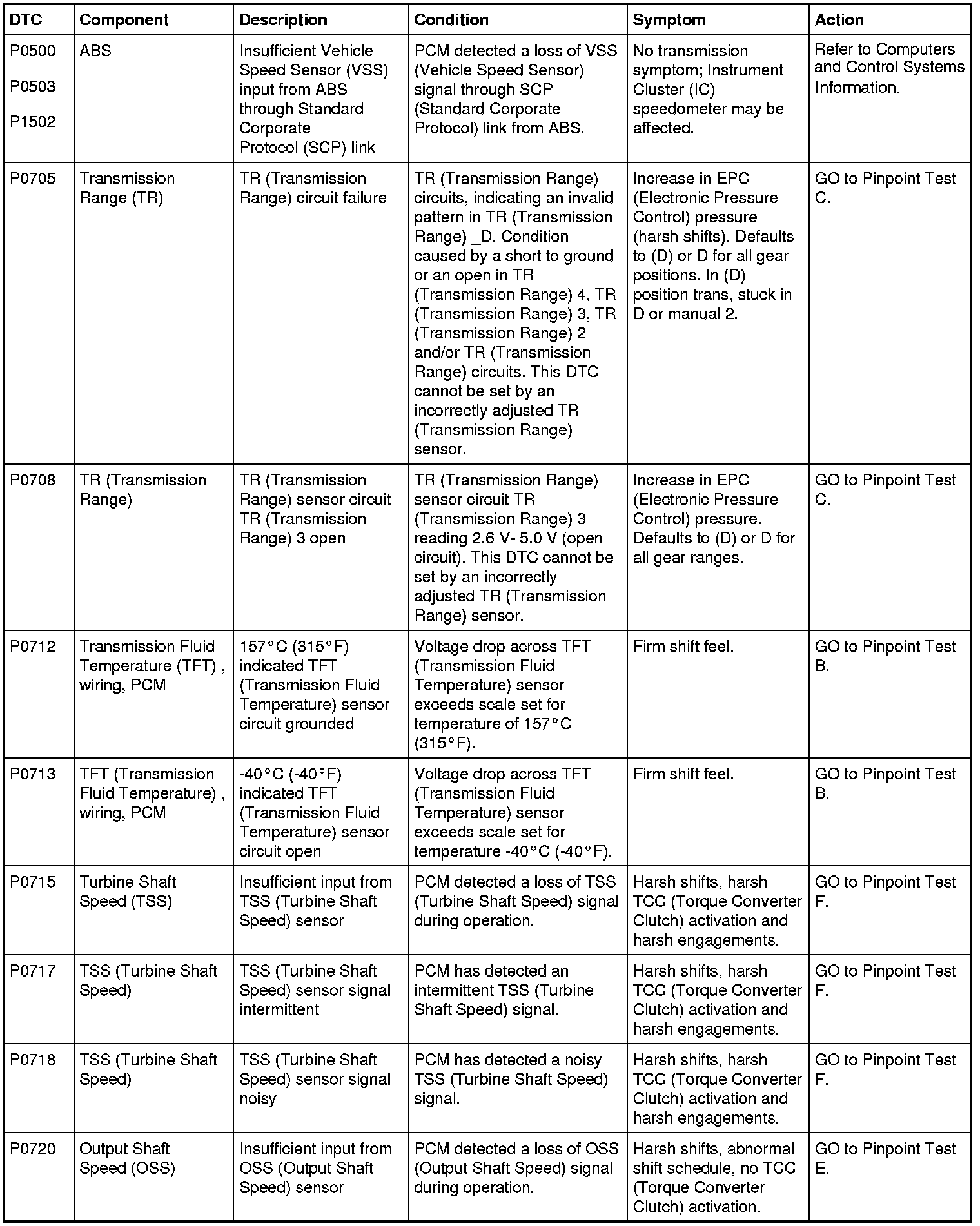

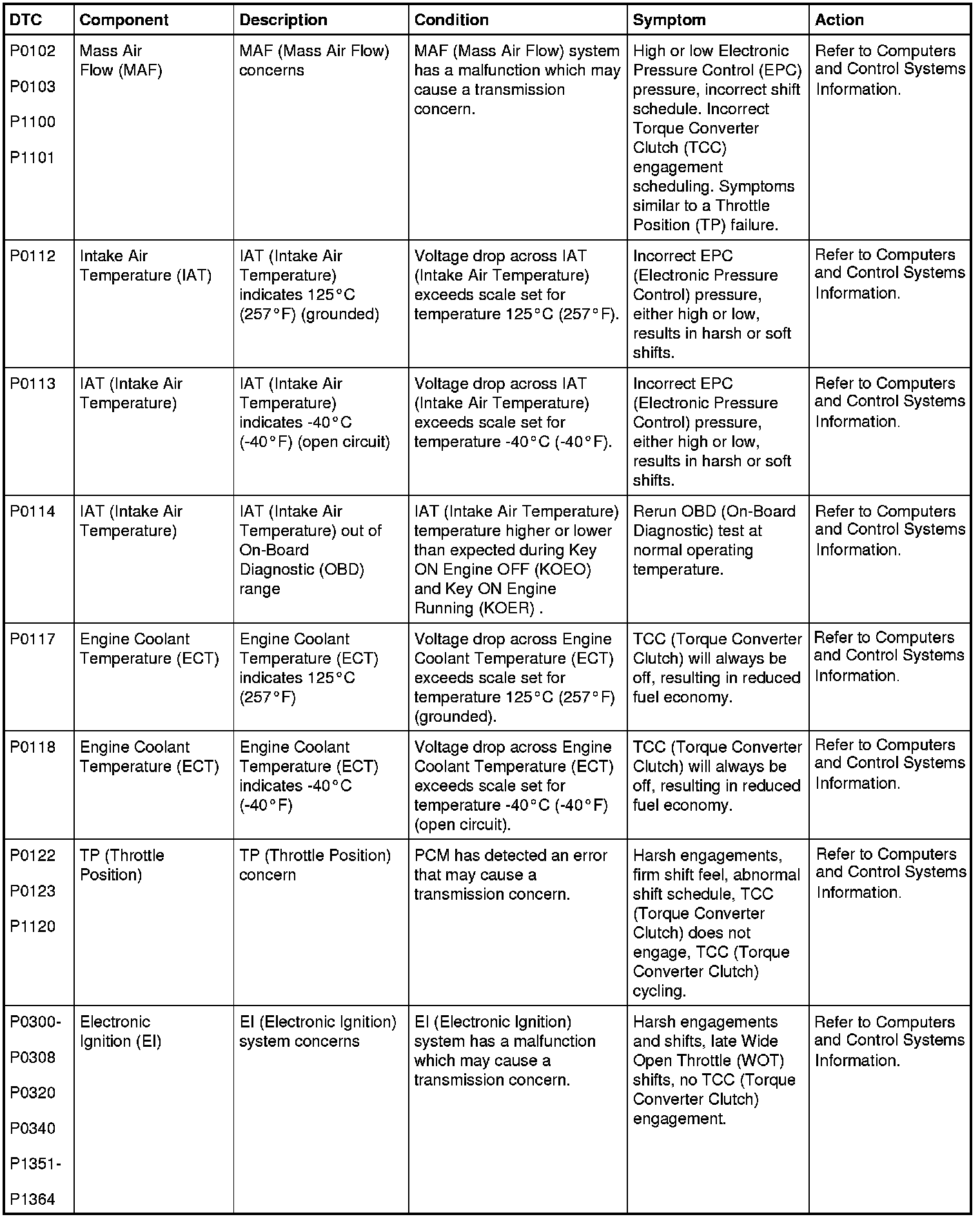

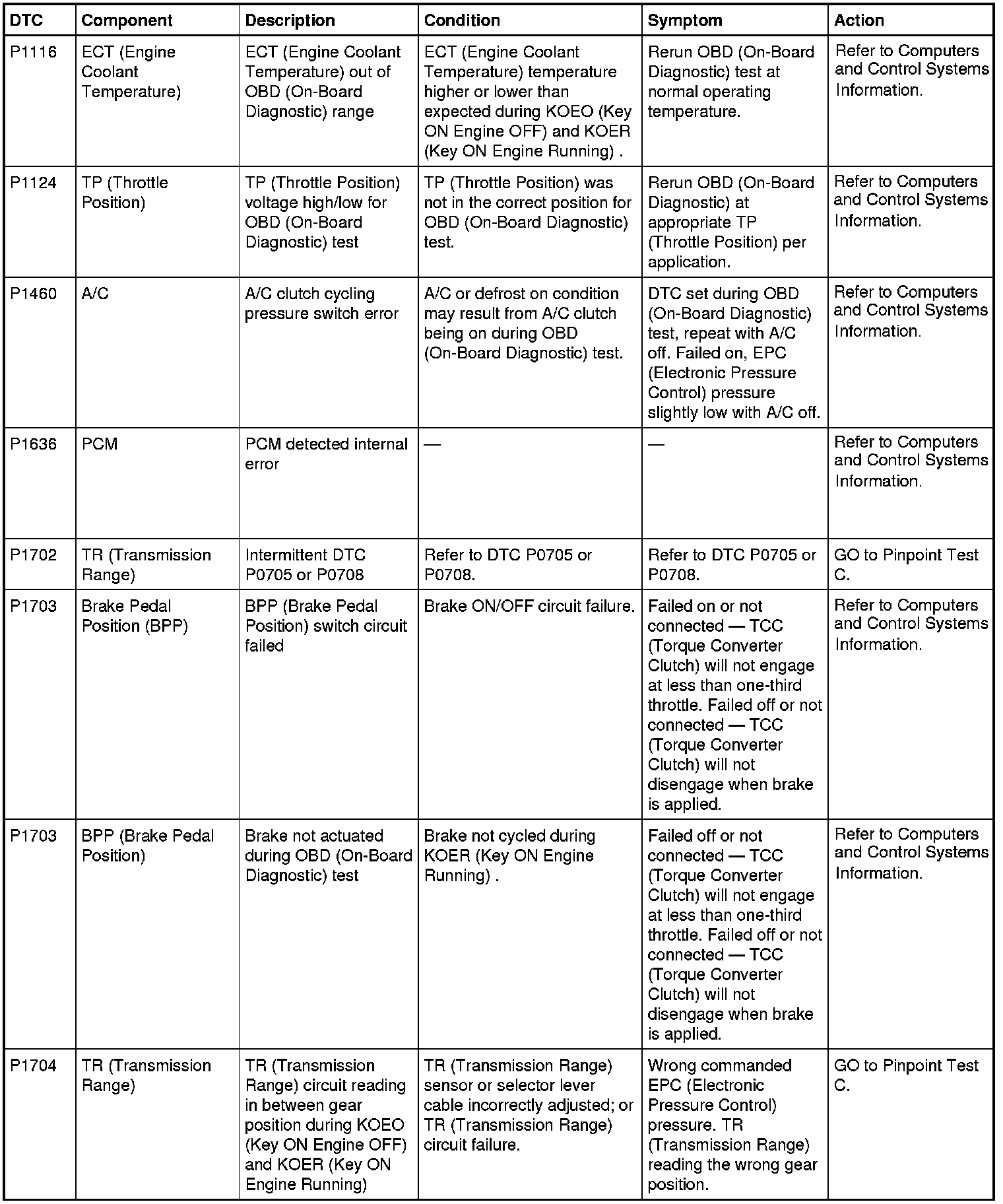

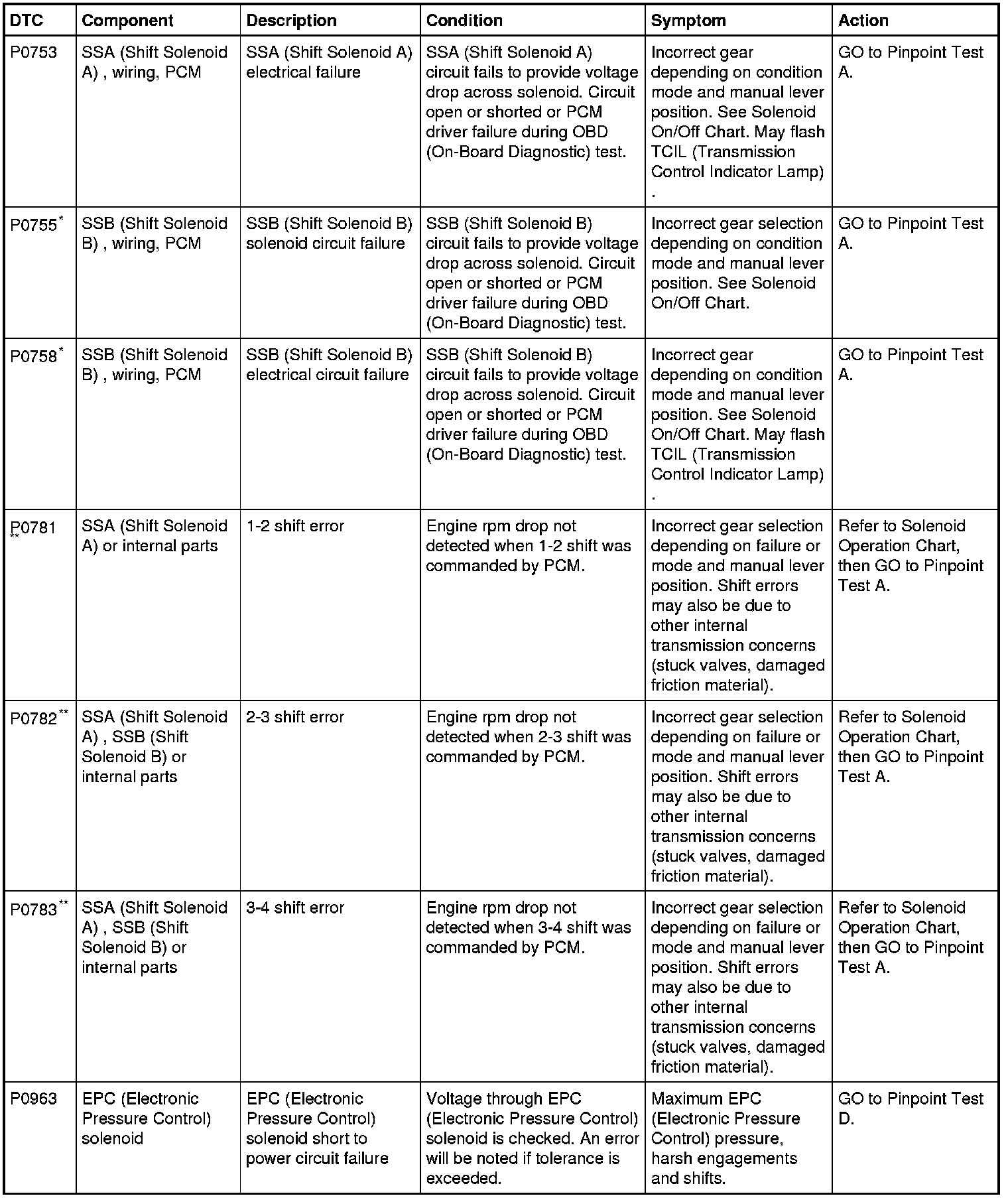

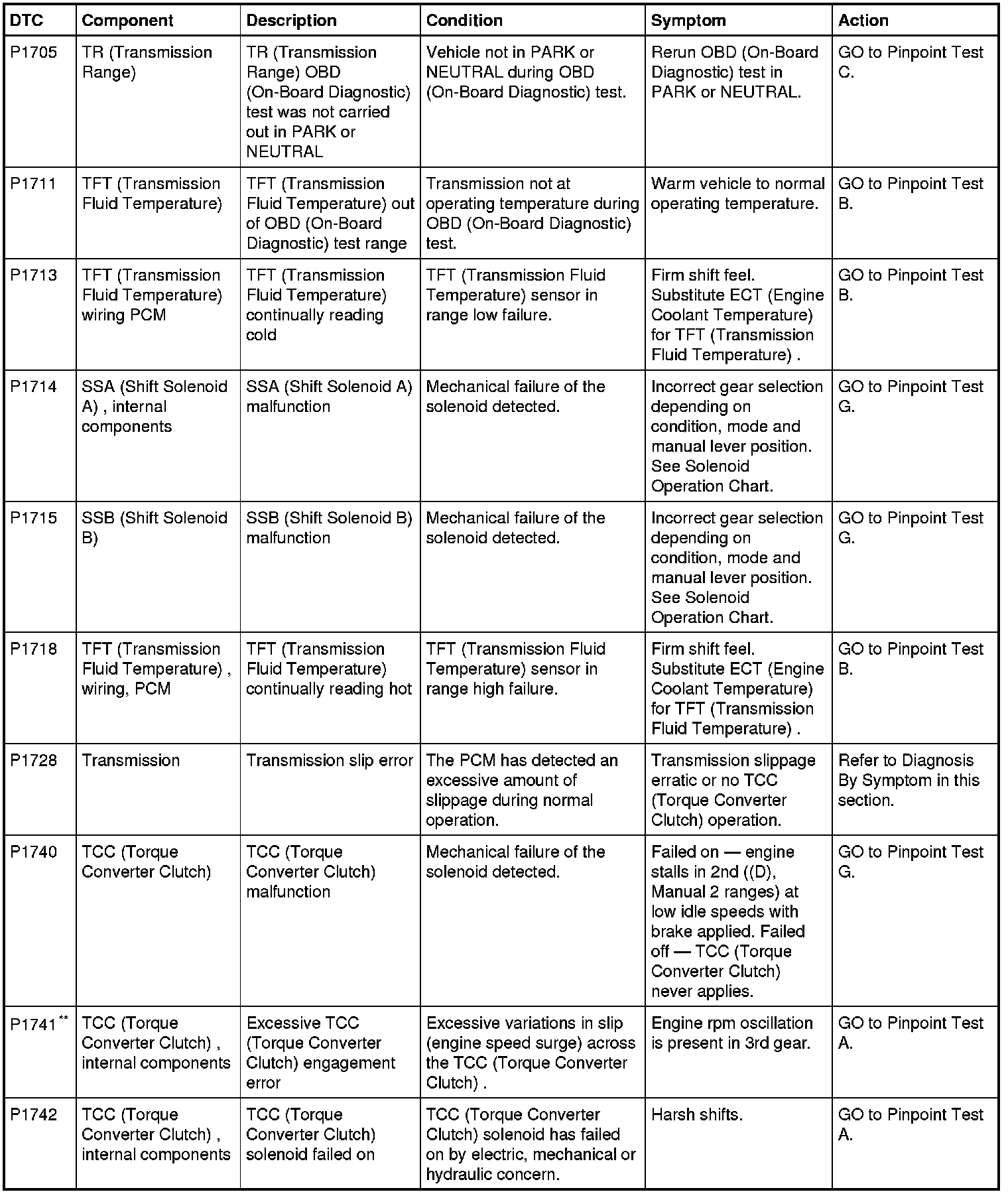

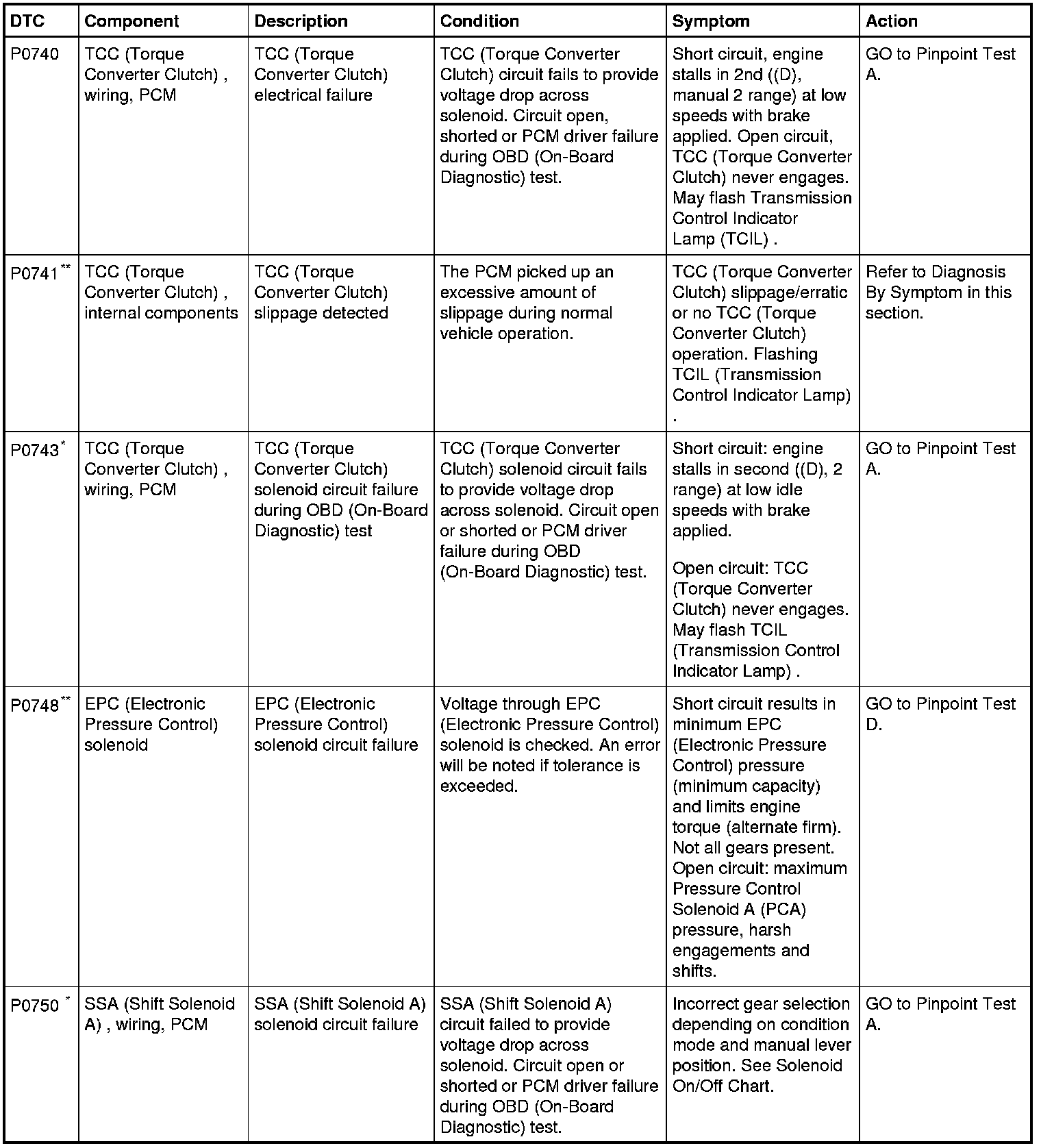

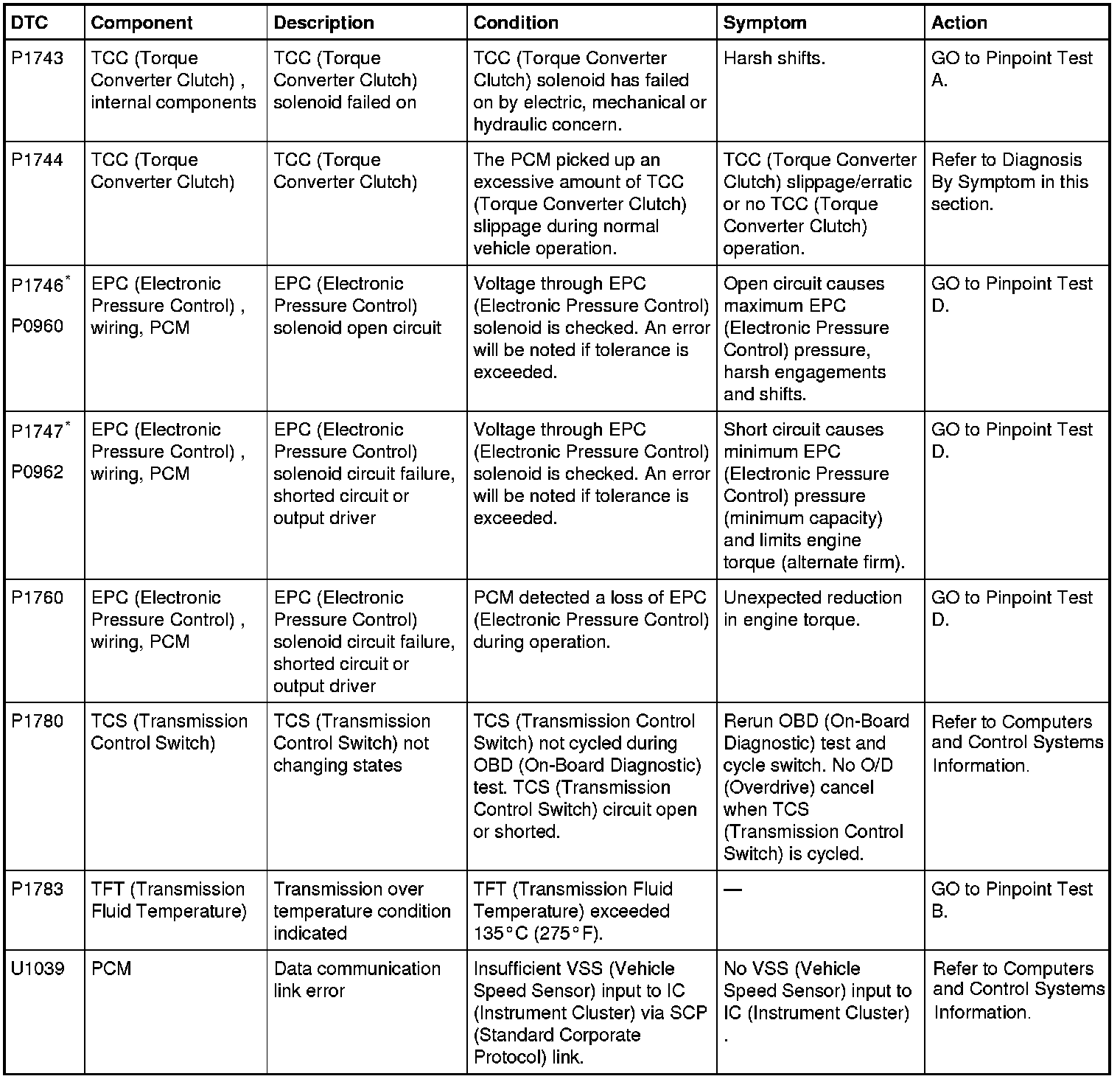

DTC Chart





































* Output circuit check, generated only by electrical symptoms.

** May also be generated by some other non-electric transmission hardware system.
