Anti-Lock Control - Traction Control and Stability Assist

Anti-Lock Control - Traction Control and Stability Assist

DTC Charts

NOTE: This DTC chart only applies to vehicles equipped with ABS and Electronic Stability Control (ESC) and/or Roll Stability Control (RSC(R)). It does not apply to vehicles equipped with ABS and Engine Only Traction Control (EOTC). Refer to Inspection and Verification for information on identifying the vehicle brake system. Inspection and Verification

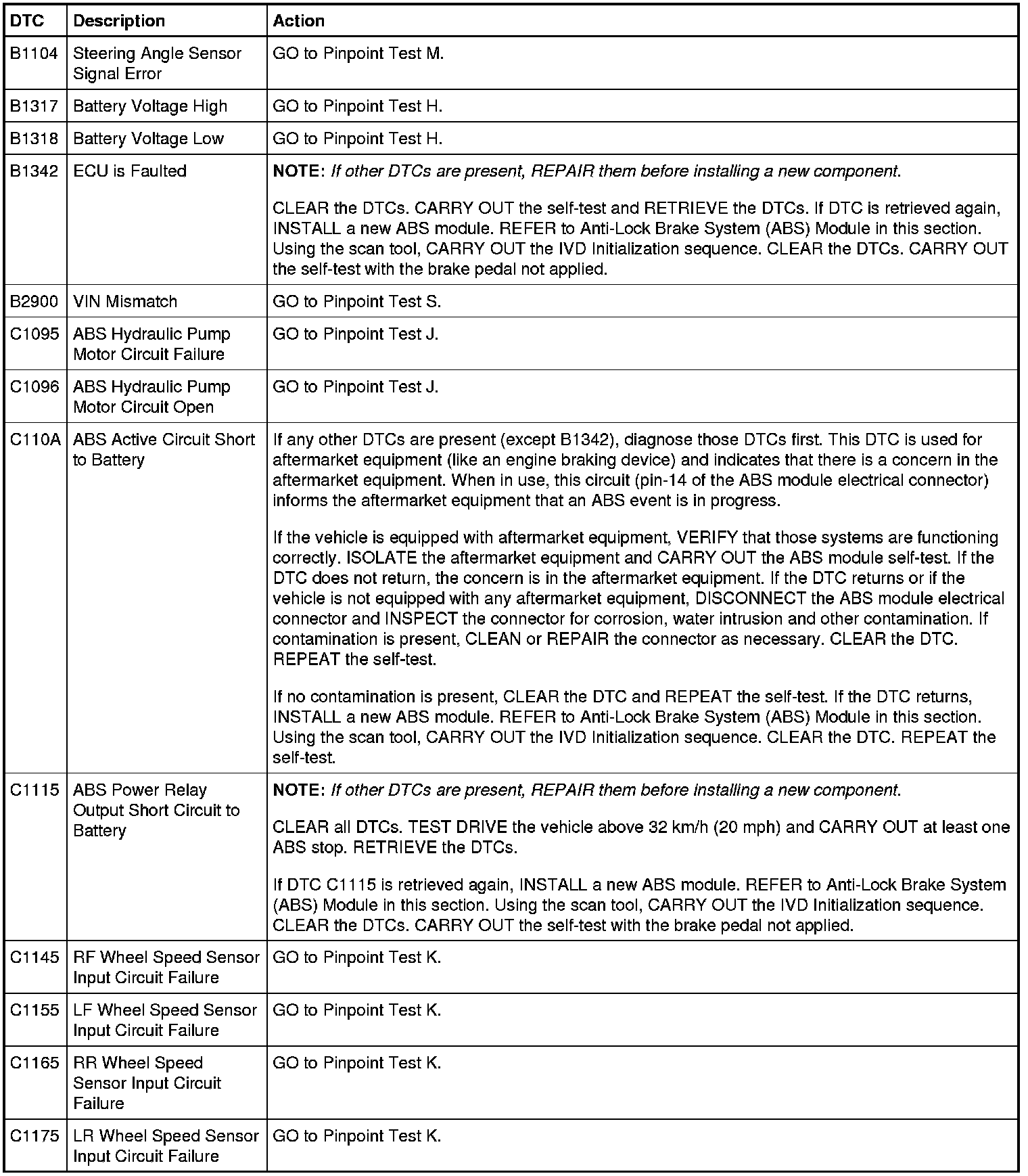

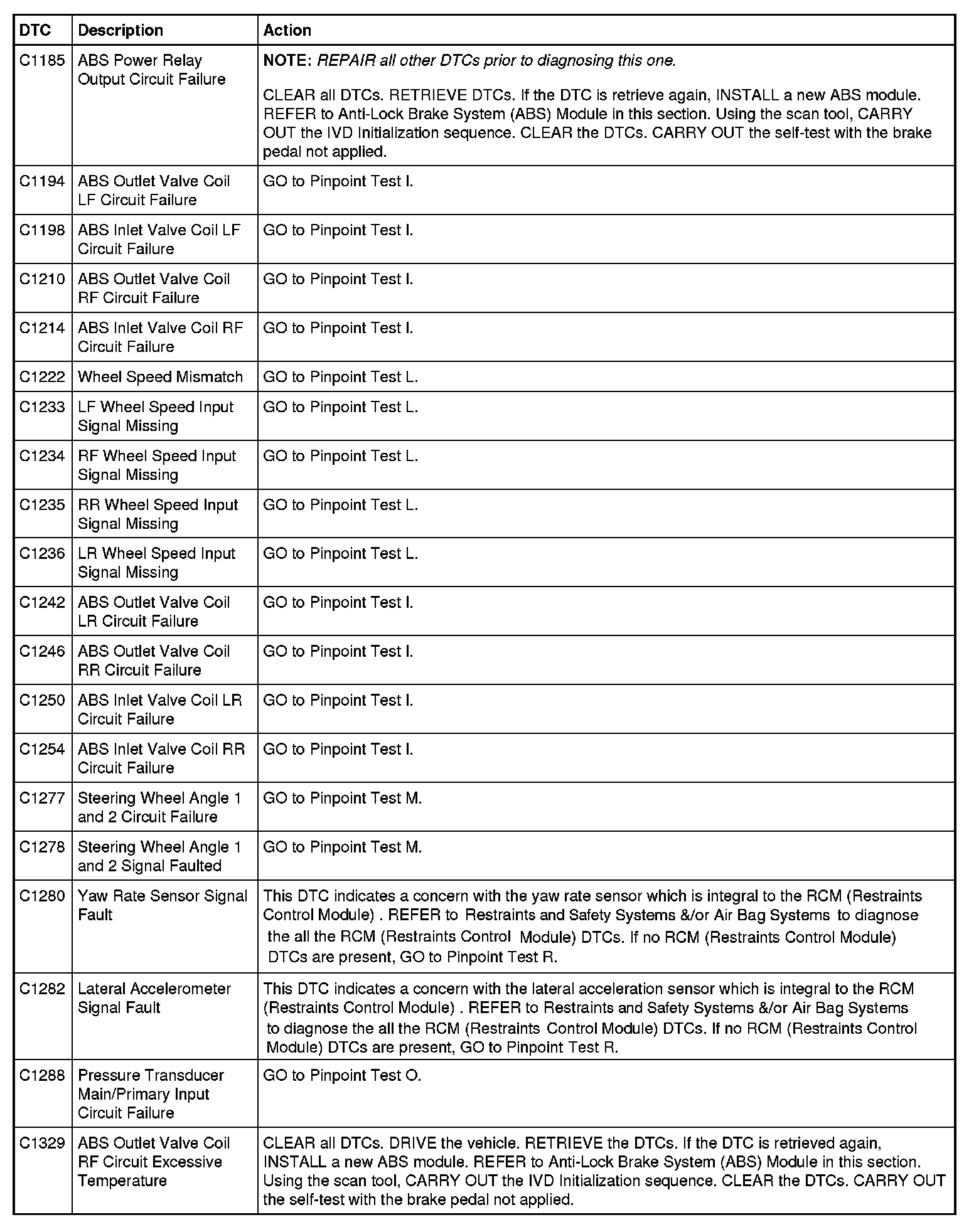

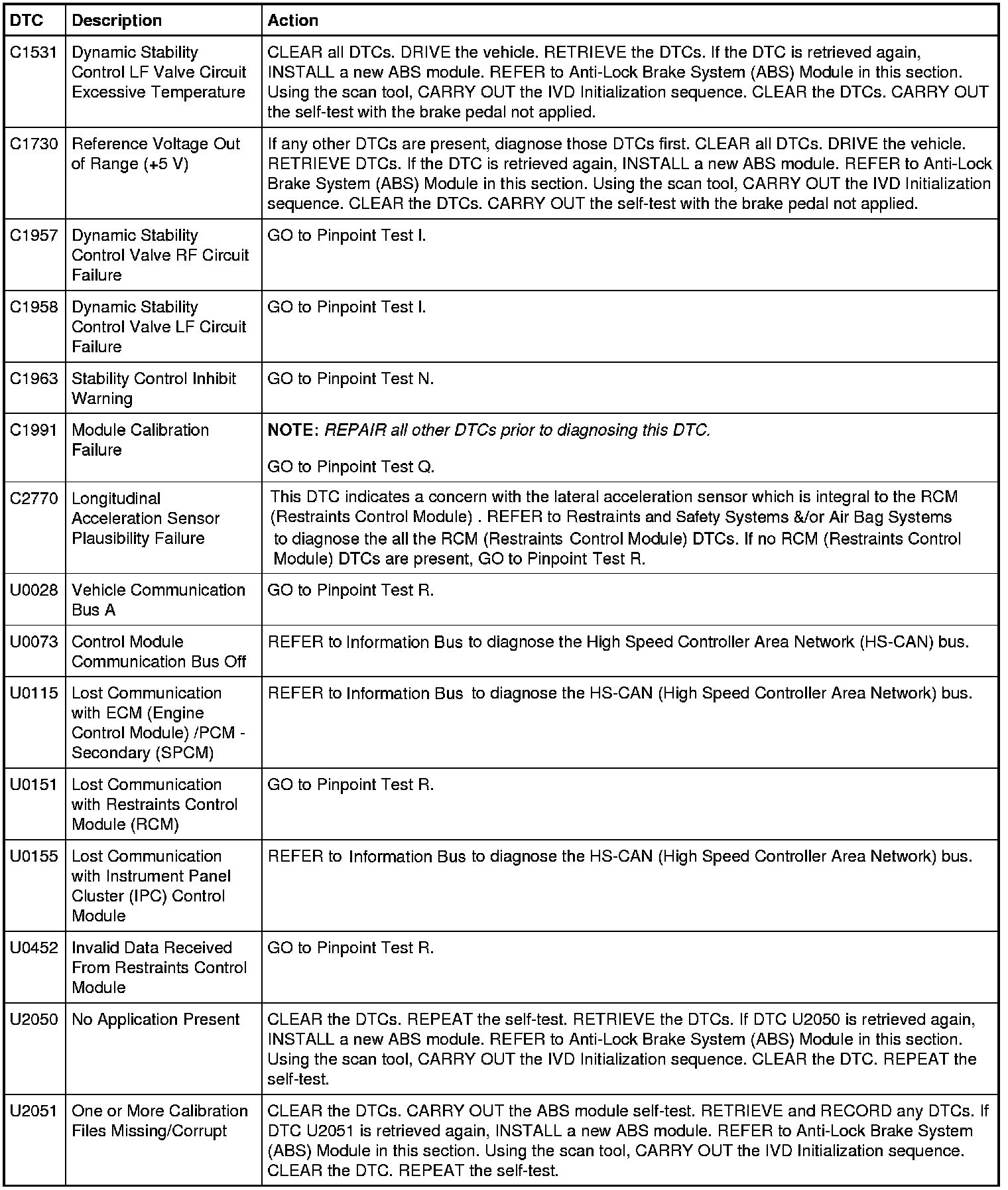

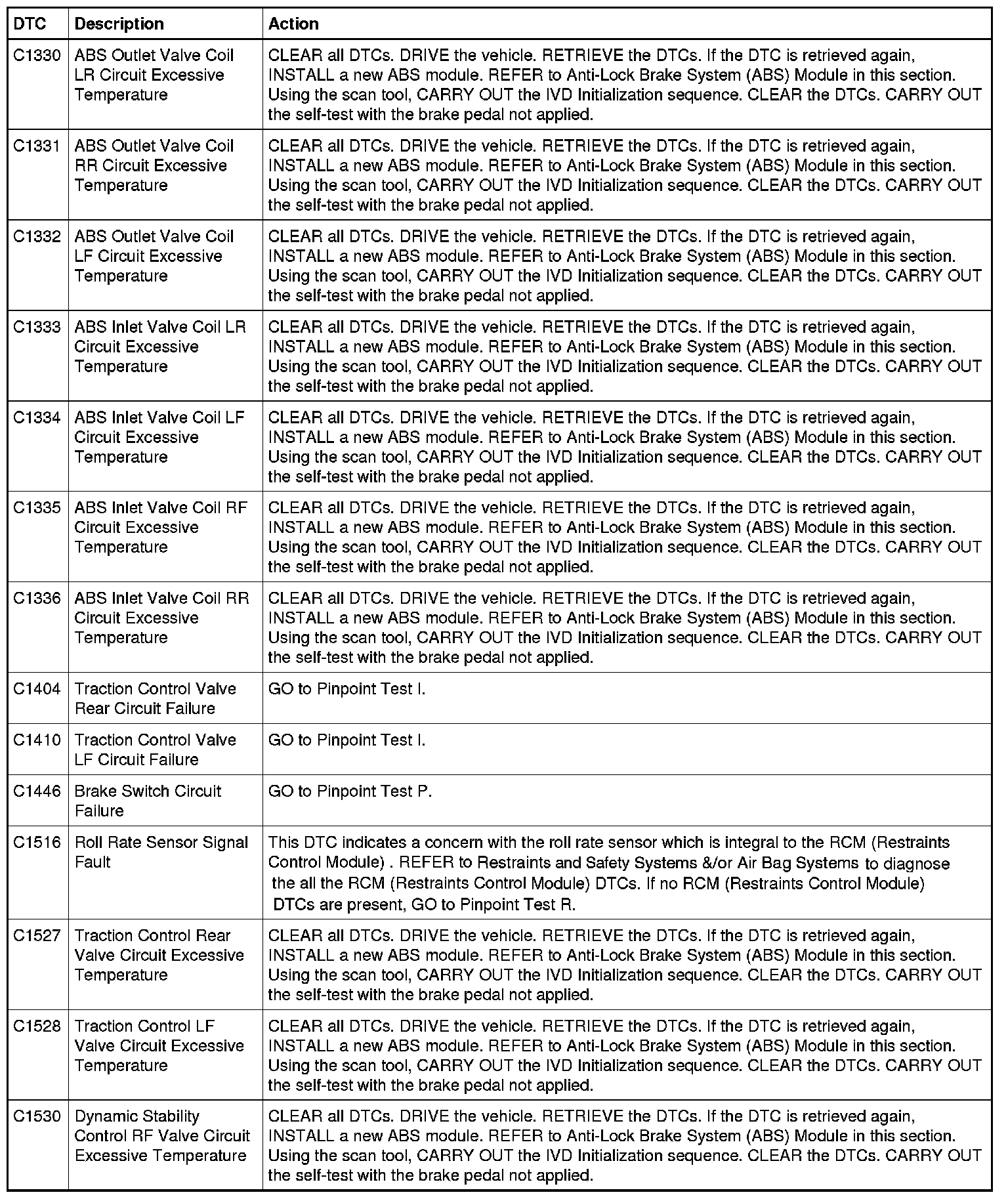

ABS Module DTC Chart
