Wiper Mounting Arm and Pivot Shaft - Front

Wiper Mounting Arm and Pivot Shaft - Front

Removal

1. Remove the upper and lower cowl panel grilles. For additional information, refer to Front End Body Panels Service and Repair.

2. NOTICE: Do not remove the wiper motor linkage arm from the wiper motor assembly. If the arm is removed, the wiper arms may not park in the correct location and damage may occur.

Remove the 3 wiper mounting arm and pivot shaft bolts.

3. Disconnect the windshield wiper motor electrical connector.

4. Remove the wiper mounting arm and pivot shaft.

Installation

1. Position the wiper mounting arm and pivot shaft.

2. Connect the windshield wiper motor electrical connector.

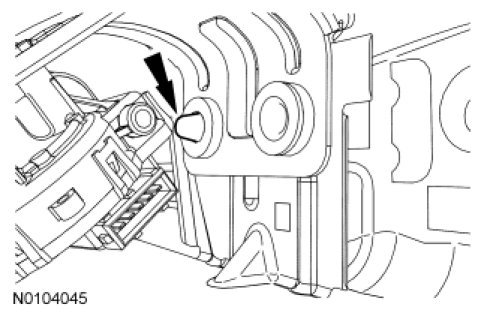

3. Position the pivot shaft bracket guide pin hole to the cowl guide pin.





4. Install the 3 wiper mounting arm and pivot shaft bolts.
- Tighten to 8 Nm (71 lb-in).

5. Install the upper and lower cowl panel grilles. For additional information, refer to Front End Body Panels Service and Repair.
