Hazard Warning Switch: Service and Repair

Hazard Flasher Lamp Switch









Removal and Installation

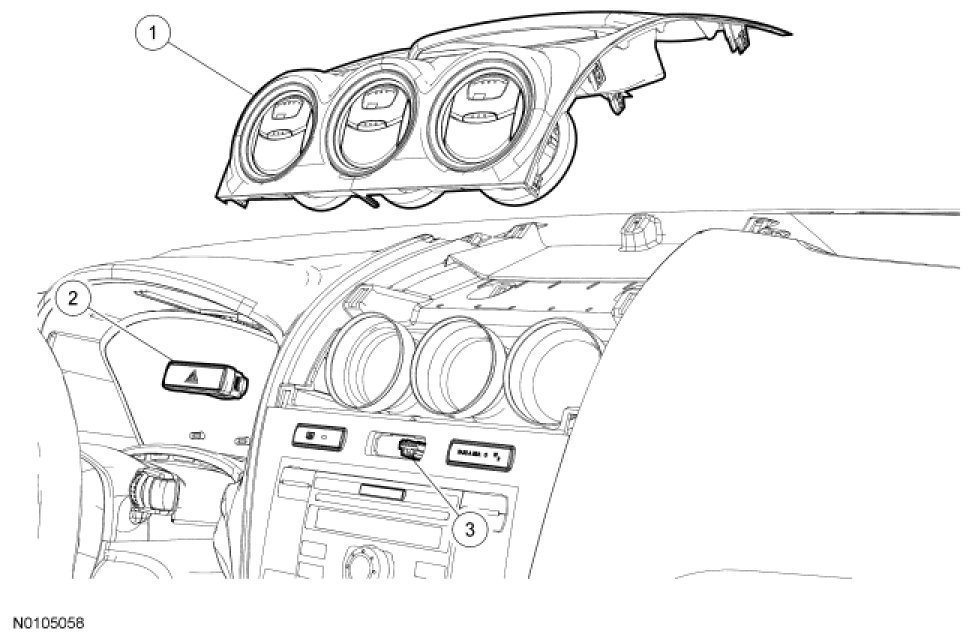

1. Pull the upper center instrument panel trim panel rearward and then up to separate it from the instrument panel.

2. NOTE: Use a suitable tool (such as a pocket screwdriver) to release the tabs.

Accessing from above, release the tabs and remove the hazard flasher lamp switch.

- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
