Home >> Ford >> 2011 >> Transit Connect L4-2.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Air Conditioning Switch >> Diagrams

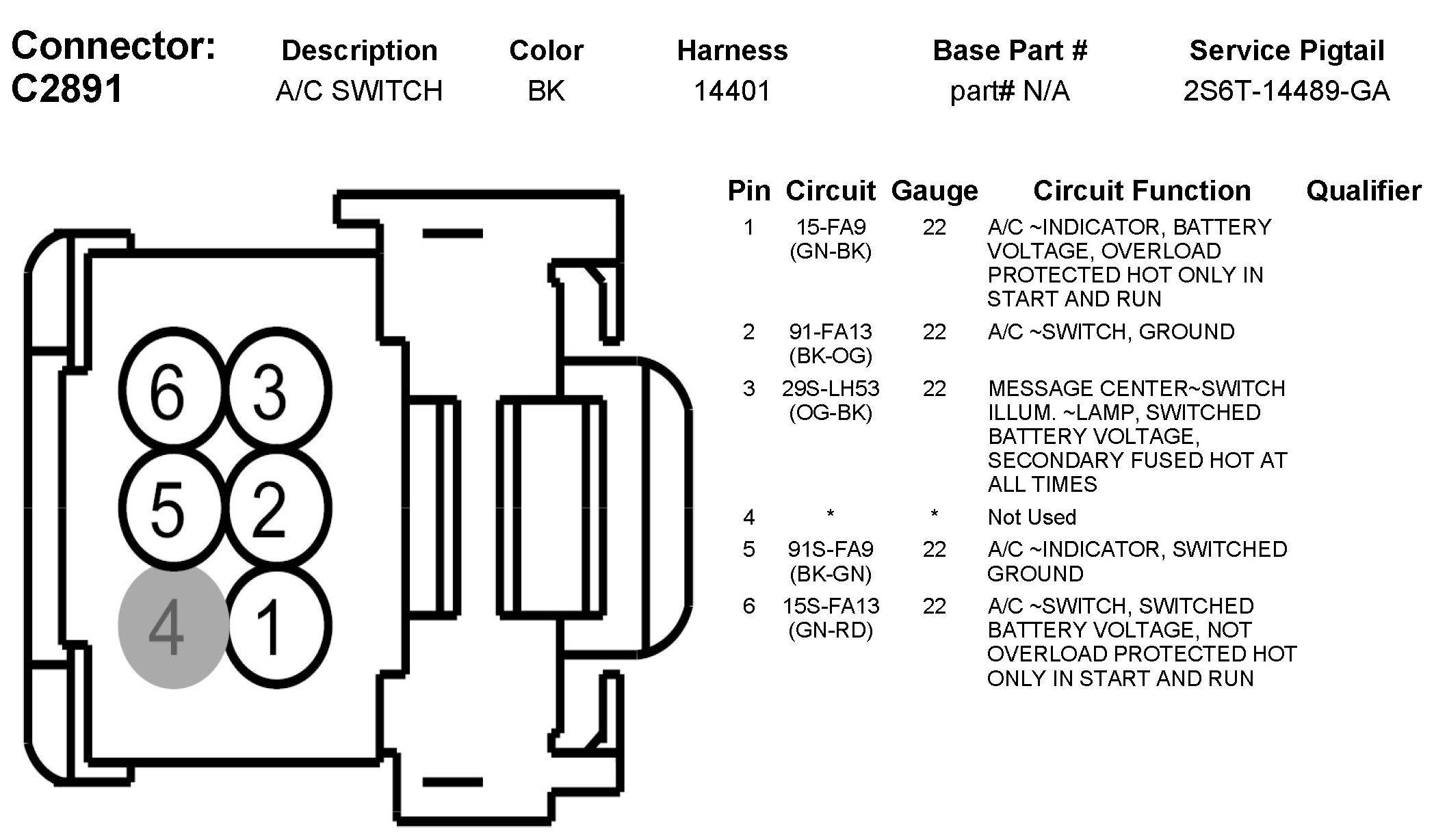

Air Conditioning Switch: Diagrams
