Safety Belt Buckle - Rear, LH

Safety Belt Buckle - Rear, LH









1. Push the 2 buttons on the head restraint guide sleeves and remove the head restraints.

2. Place the seat in the cargo position.

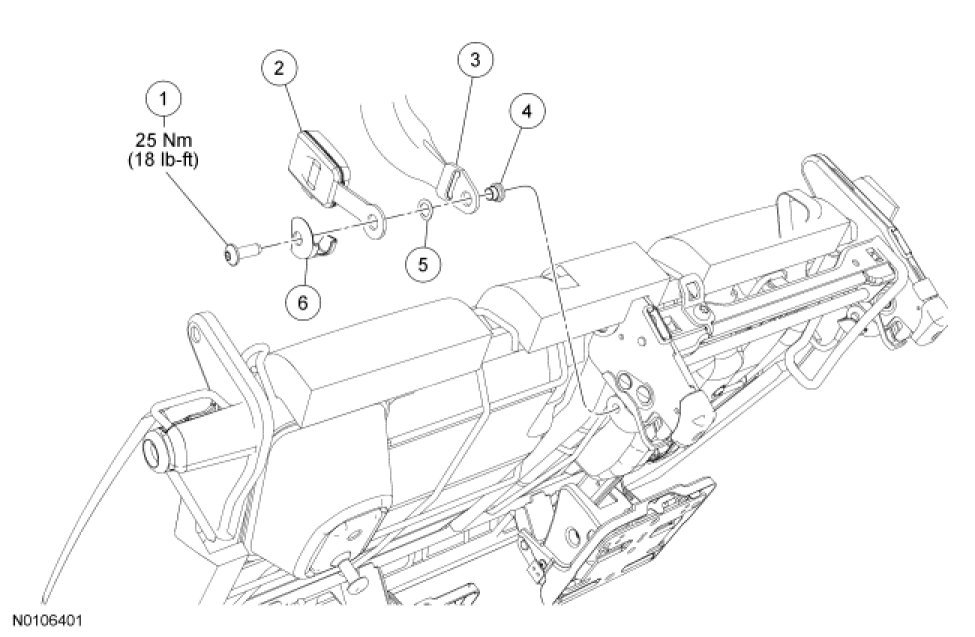

3. NOTE: Note the spacer shoulder position and safety belt routing for correct installation.

Remove the bolt, safety belt buckle, center safety belt anchor, washer spacer and cover.

- To install, tighten to 25 Nm (18 lb-ft).

4. To install, reverse the removal procedure.
- Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

5. Check the active restraint system for correct operation. For additional information, refer to the appropriate Functional Test procedure in Safety Belt System Principles Of Operation.
