Center Mounted Brake Lamp: Service and Repair

High Mounted Stoplamp

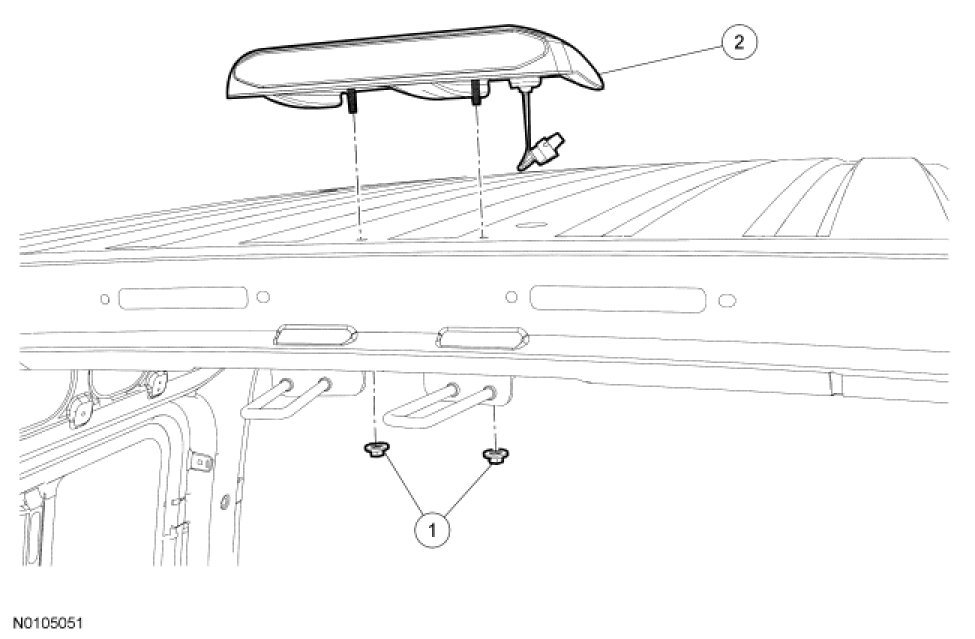

Removal and Installation

1. If equipped with a rear headliner, remove the pin-type retainers and lower the headliner to access the high mounted stoplamp nuts and electrical connector.

2. Disconnect the high mounted stoplamp electrical connector.

3. Remove the 2 nuts and the high mounted stoplamp.

4. To install, reverse the removal procedure.
