Fuel Tank and Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View

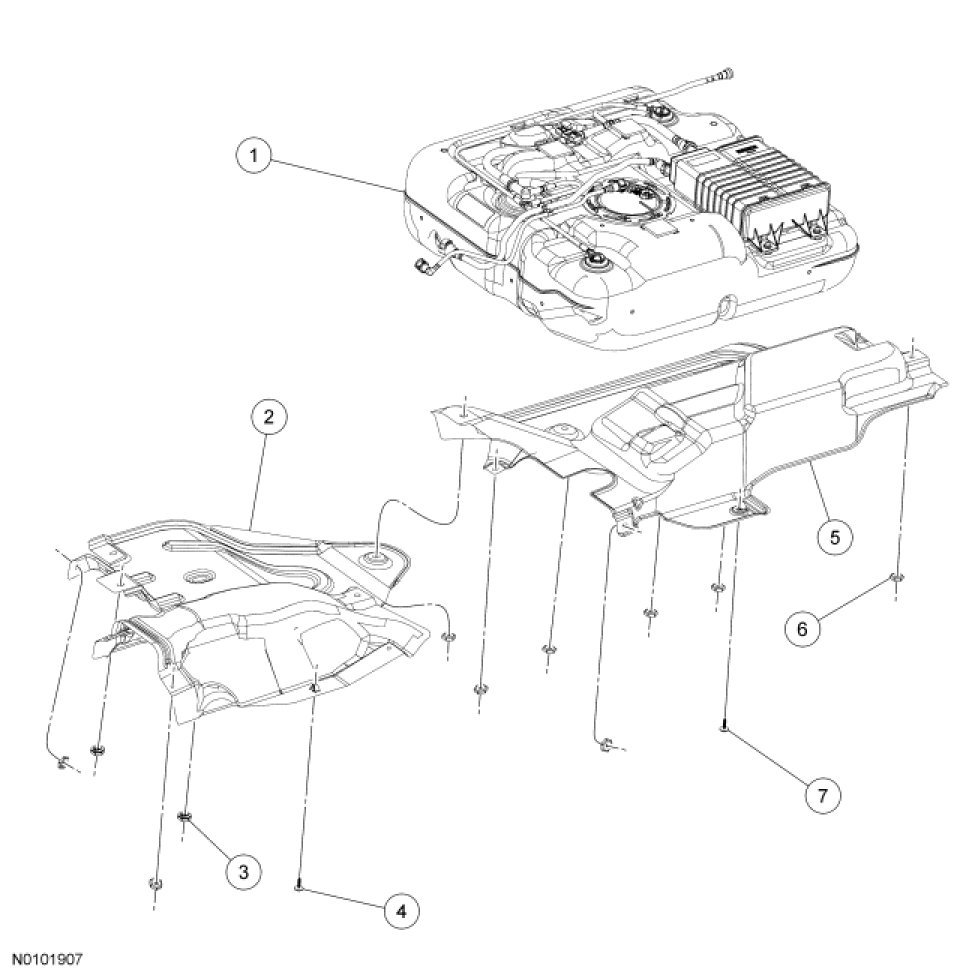

Fuel Tank Heat Shields and Retainers

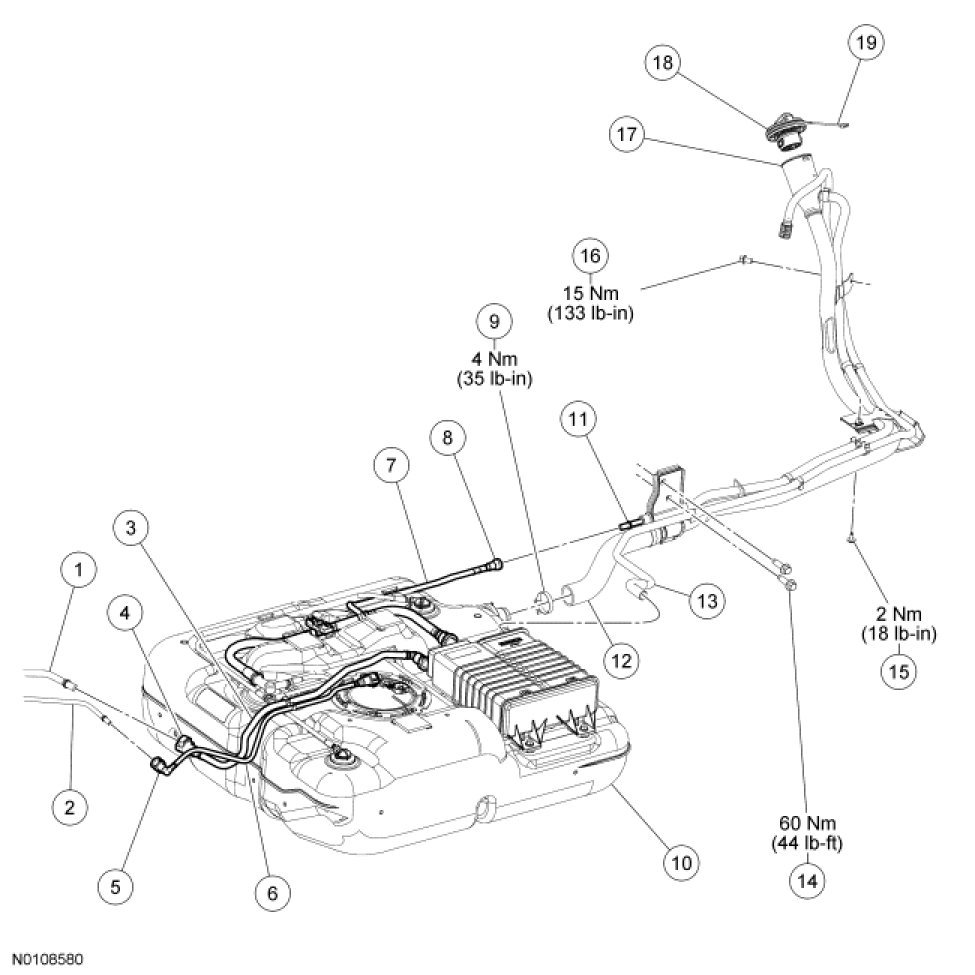

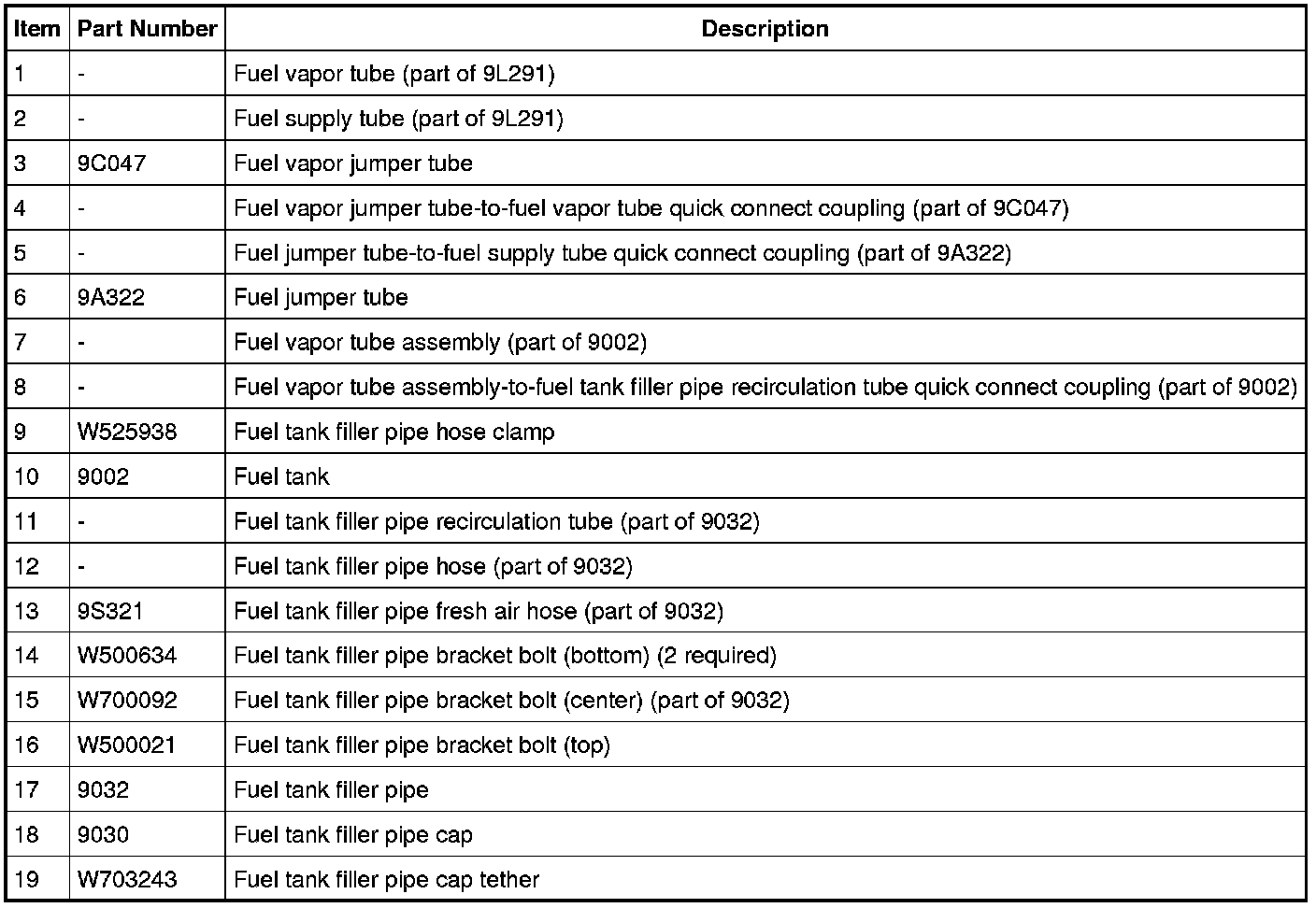

Fuel Tank and Filler Pipe

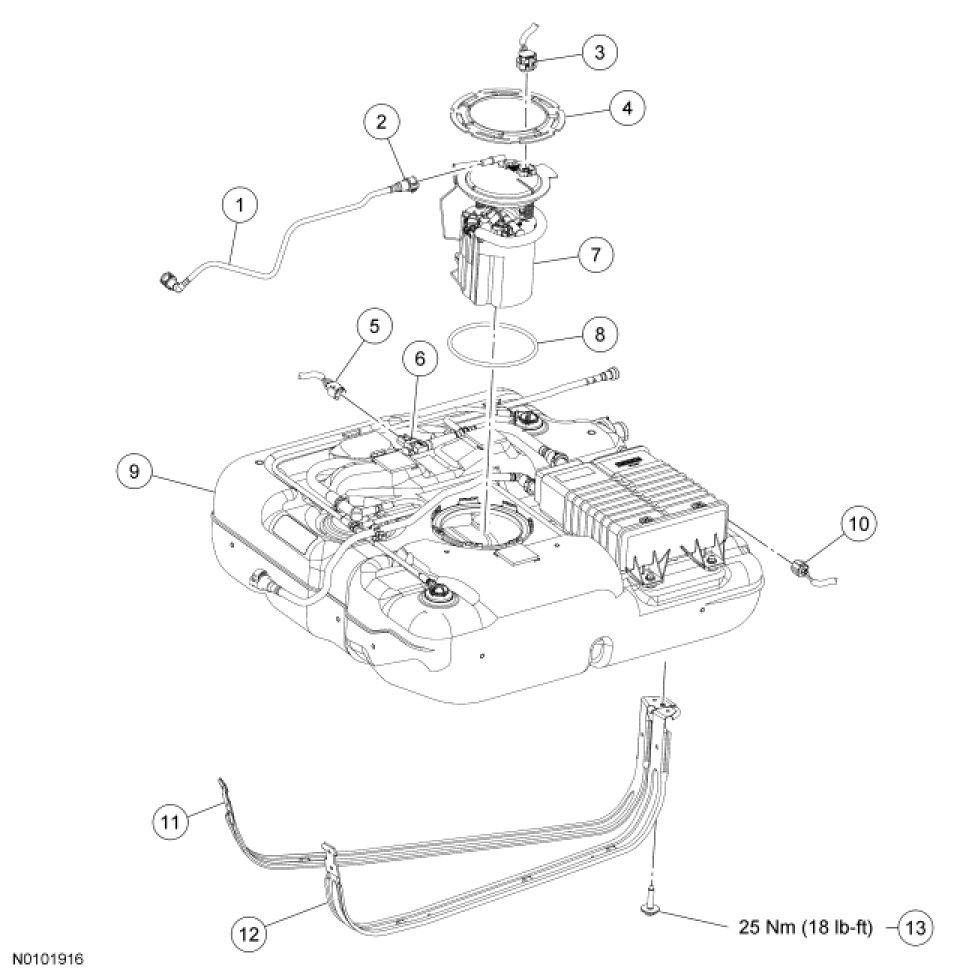

Fuel Pump (FP) Module, Fuel Tank and Straps
