Home
>>
Ford
>>
2011
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>

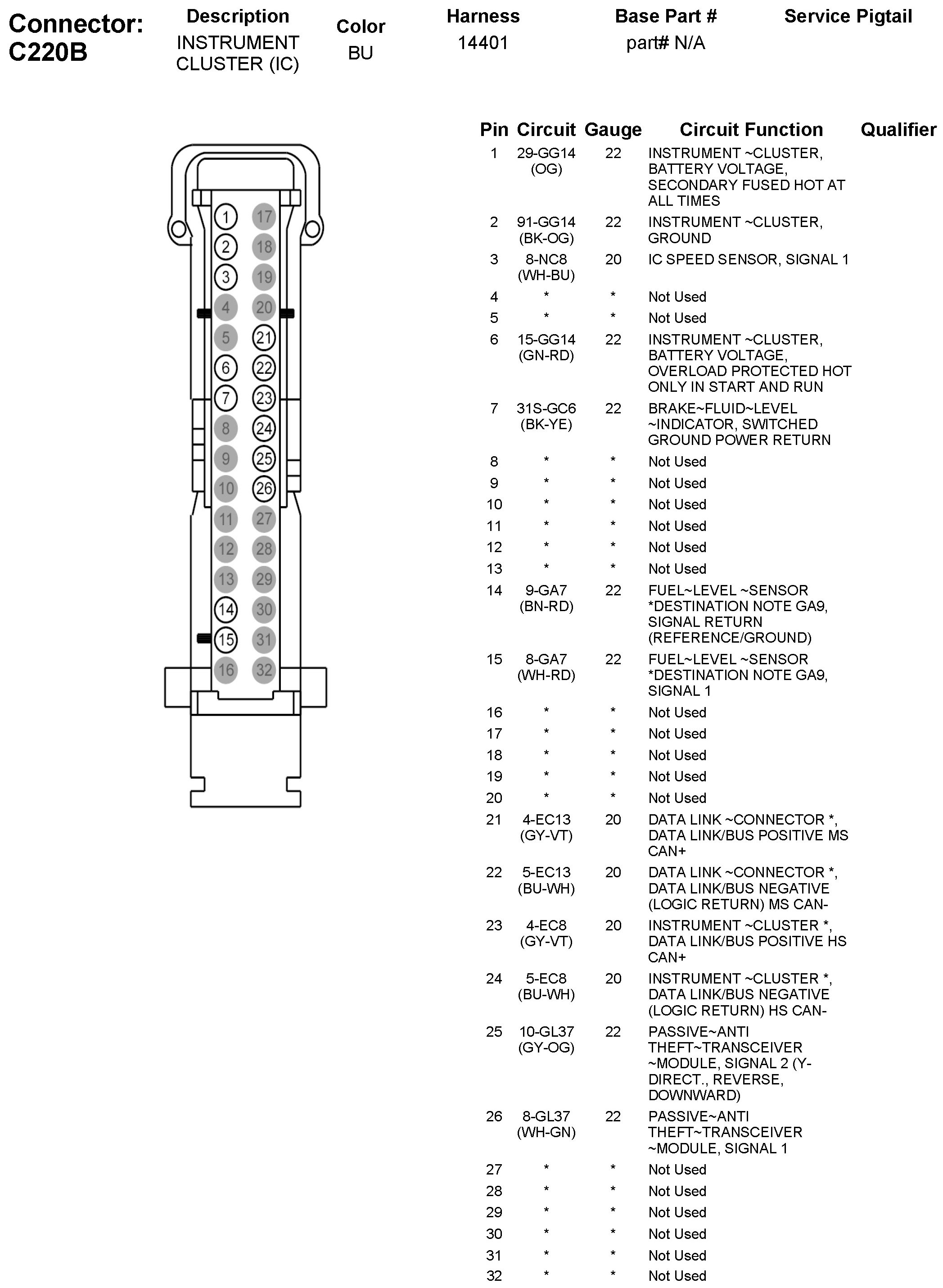

C220B Instrument Cluster (IC)
C220B Instrument Cluster (IC)
