Air Door Actuator / Motor: Service and Repair

Mode Door Actuator - Air Inlet Door









Removal and Installation

1. Remove the blower motor resistor. For additional information, refer to Blower Motor Resistor Service and Repair.

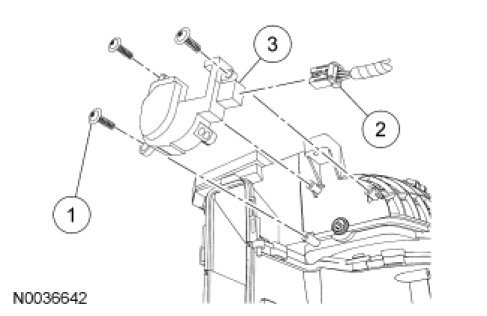

2. Remove the 3 air inlet mode door actuator screws.

3. Disconnect the air inlet mode door actuator electrical connector.

4. Remove the air inlet mode door actuator.

5. To install, reverse the removal procedure.
